KTM 690 SMC R EU 2021 User Manual

SERVICE WORK ON THE CHASSIS 11
51

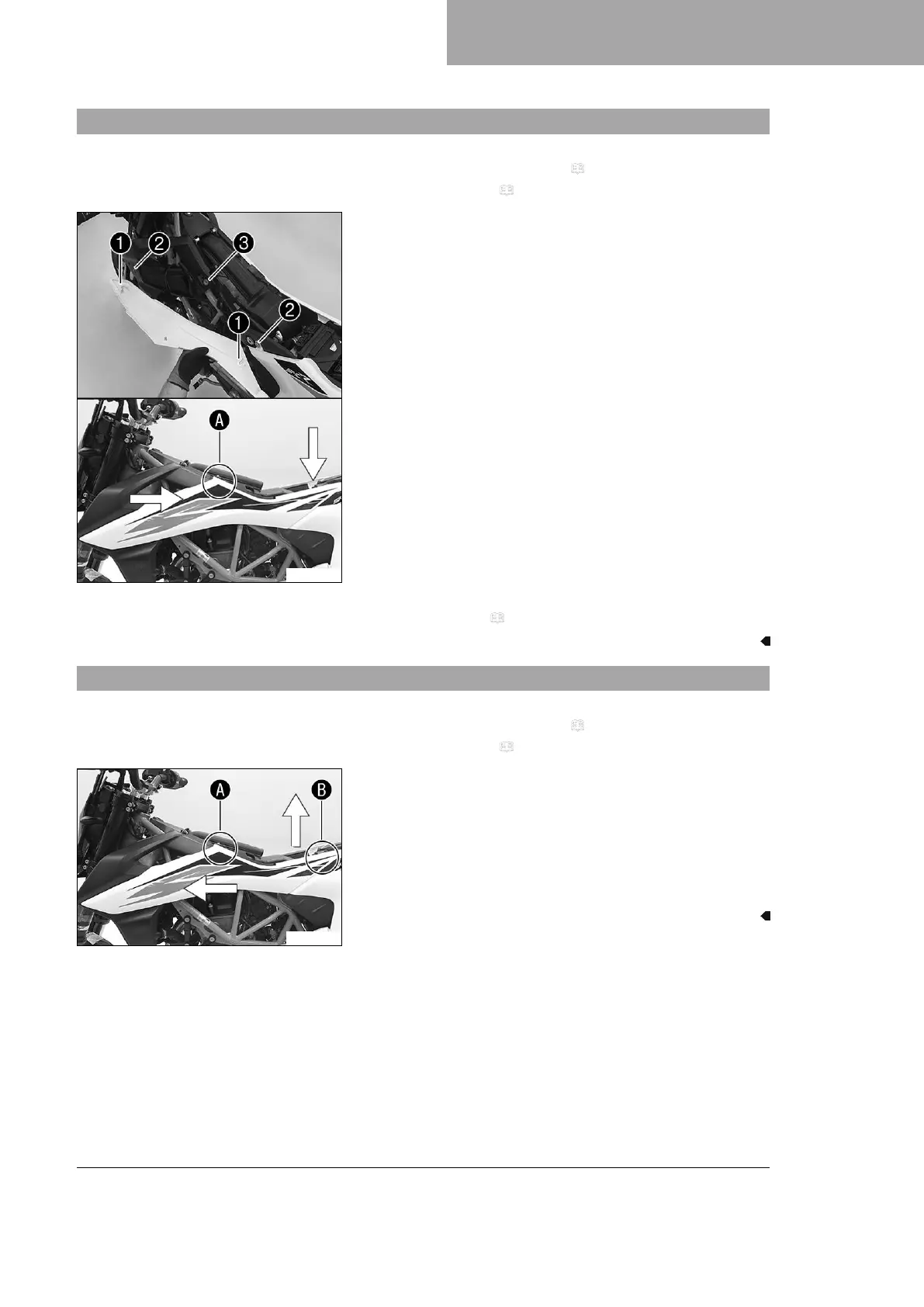

11.14 Storing the tool set
Preparatory work
– Open the fuel tank filler cap. ( p. 19)
– Remove the seat. ( p. 49)
S03288-10
Main work
– Store the tool set in the tool set compartment.
–
Position the left side cover using holding lugs
1
on bushings
2
and push towards the rear and, in the rear section, down-
ward.
–
Press the side cover into rubber bushing
3
in area
A
.
Finishing work
– Mount the seat. ( p. 50)
11.15 Take off the side cover
Preparatory work
– Open the fuel tank filler cap. ( p. 19)
– Remove the seat. ( p. 49)
S03283-10
Main work
– Remove the left side cover from the rubber bushing in area
A
.
– Remove the left side cover upwards from the bushing in area
B
.
– Take off the left side cover from the front.
– Repeat these steps on the opposite side.
