KTM 690 SMC R EU 2021 - Removing the headlight mask with the headlight; Installing the headlight mask with the headlight

14 ELECTRICAL SYSTEM
84
Finishing work
– Mount the seat. ( p. 50)

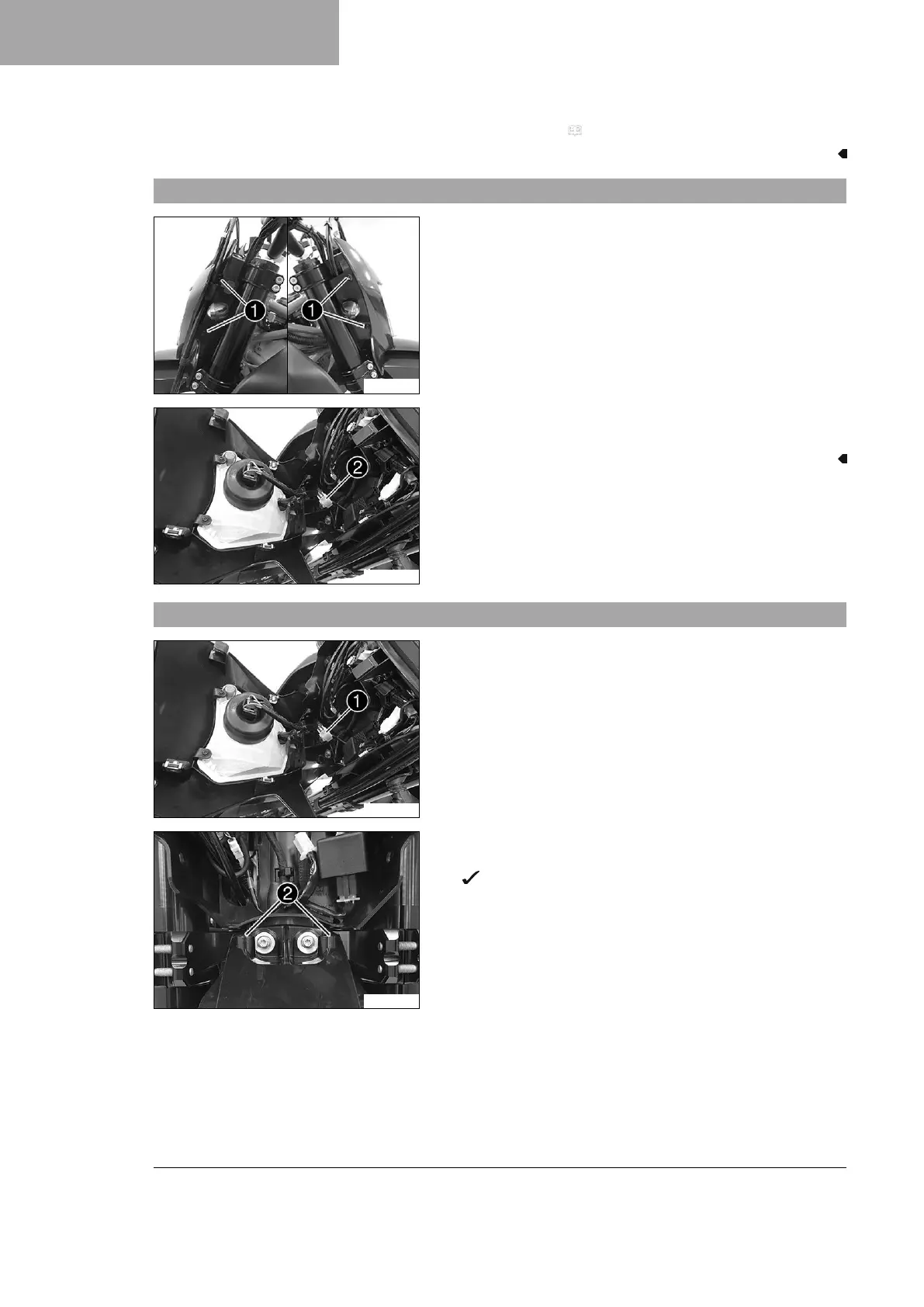

14.7 Removing the headlight mask with the headlight
S03303-10
– Cover the fender with a cloth.
–
Remove screws
1
on both sides.
– Tip the headlight mask forward.
S03304-10
–
Disconnect plug-in connector
2
of the headlight.
– Take off the headlight mask.
14.8 Installing the headlight mask with the headlight
S03304-11
Main work
–
Connect plug-in connector
1
of the headlight.
– Check that the lighting is functioning properly.
S03305-10
– Remove the cloth from the fender and position the headlight
mask.
Headlight mask engages in the fender on the bushings
2
.
