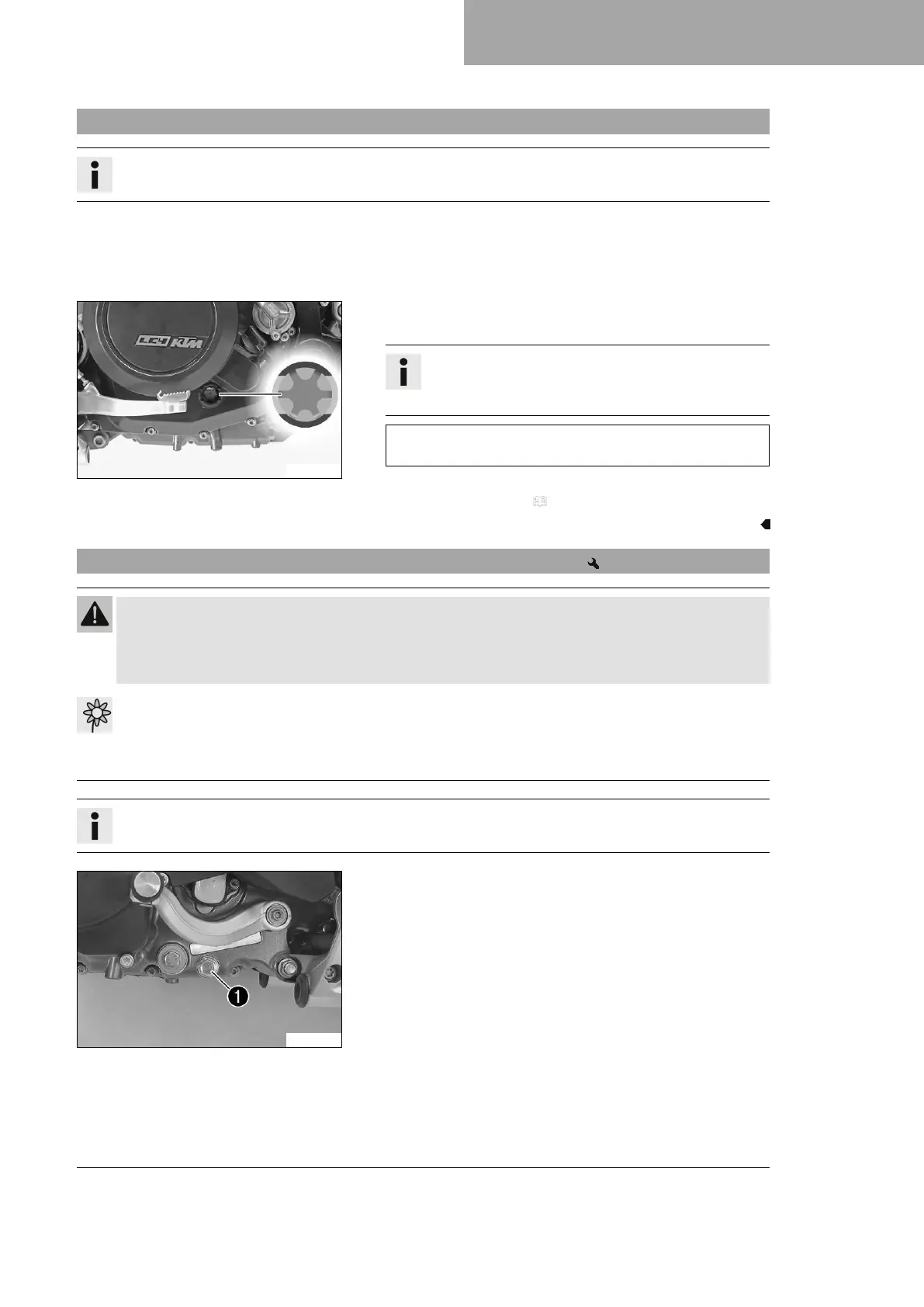

SERVICE WORK ON THE ENGINE 17
97
17.1 Checking the engine oil level
Info
The engine oil level must be checked when the engine is warm.
Condition
The engine is at operating temperature.
Preparatory work
Stand the motorcycle upright on a horizontal surface.
C00182-10
Main work
Check the engine oil level.
Info
After switching off the engine, wait one minute before
checking the level.
The engine oil must be between the lower and upper edge of
the oil level viewer.
» If the engine oil level is not at the specified level:
Add engine oil. ( p. 100)
17.2 Changing the engine oil and oil filter, cleaning the oil screens
Warning
Danger of scaldingEngine and gear oil get very hot when the motorcycle is ridden.
Wear suitable protective clothing and safety gloves.
In the event of scalding, rinse the area affected immediately with lukewarm water.
Note
Environmental hazardHazardous substances cause environmental damage.
Dispose of oils, grease, filters, fuel, cleaning agents, brake fluid, etc., correctly and in compliance with
the applicable regulations.
Info
Drain the engine oil while the engine is at operating temperature.
S02210-10
Position an appropriate container under the engine.
Remove oil drain plug
1
with the magnet and seal ring.
Allow the engine oil to drain completely.
