17 SERVICE WORK ON THE ENGINE
98

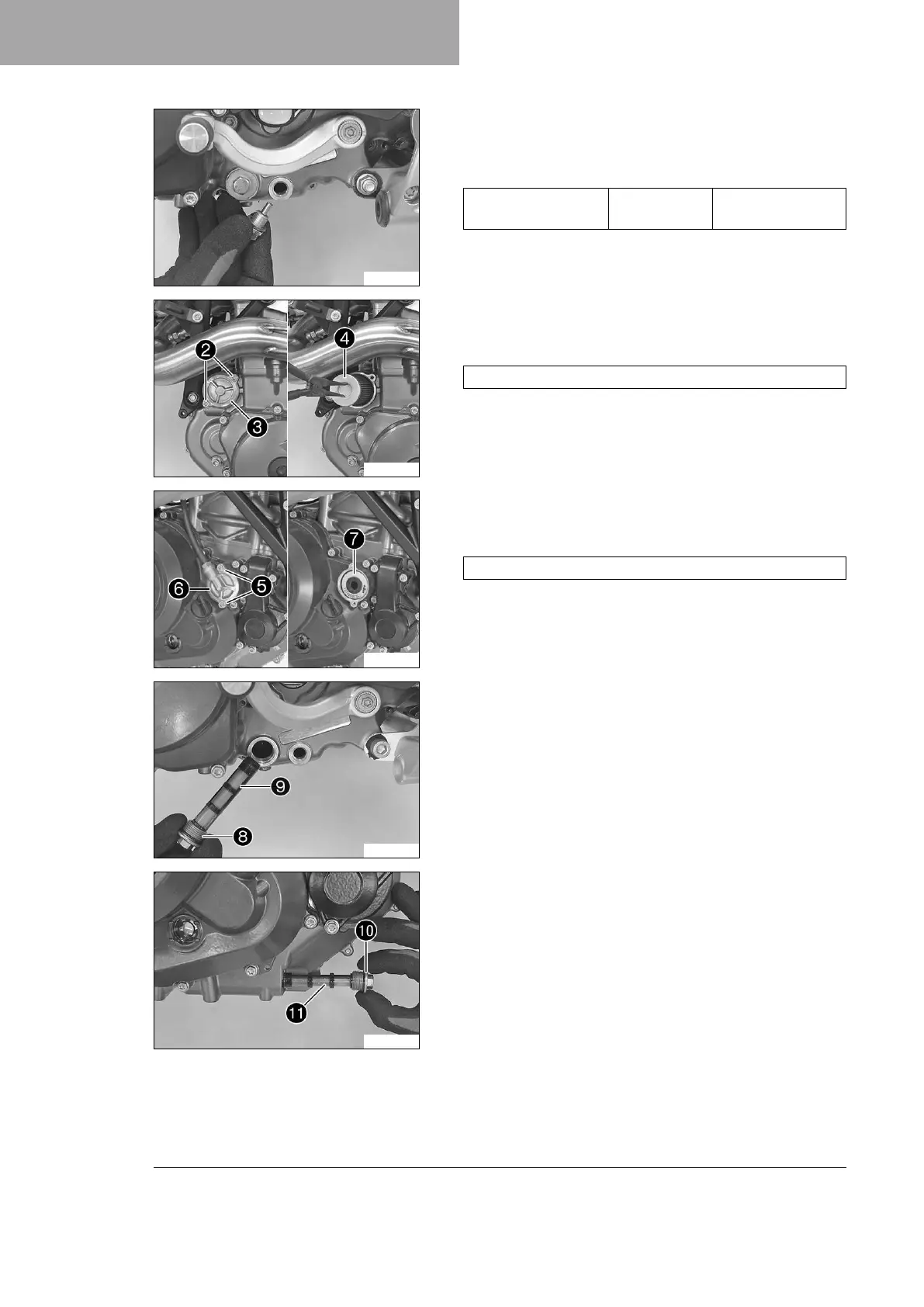

S02209-01
– Thoroughly clean the oil drain plug with magnet.
– Mount the oil drain plug with the magnet and seal ring and
tighten it.
Guideline
Oil drain plug with
magnet
M12x1.5 20 Nm (14.8 lbf ft)
S03320-10
–
Remove screws
2
. Take off oil filter cover
3
with the O-
ring.
–
Pull oil filter
4
out of the oil filter housing.
Lock ring plier (51012011000)
S03321-10
–
Remove screws
5
. Take off oil filter cover
6
with the O-
ring.
–
Pull oil filter
7
out of the oil filter housing.
Lock ring plier (51012011000)
– Allow the engine oil to drain completely.
– Thoroughly clean the parts and the sealing surface.
S03322-10
–
Remove screw plug
8
with oil screen
9
and the O-rings.
S03323-10
–
Remove screw plug
bk
with oil screen
bl
and the O-rings.
– Allow the engine oil to drain completely.
– Thoroughly clean the parts and the sealing surface.
