SERVICE WORK ON THE ENGINE 17
99

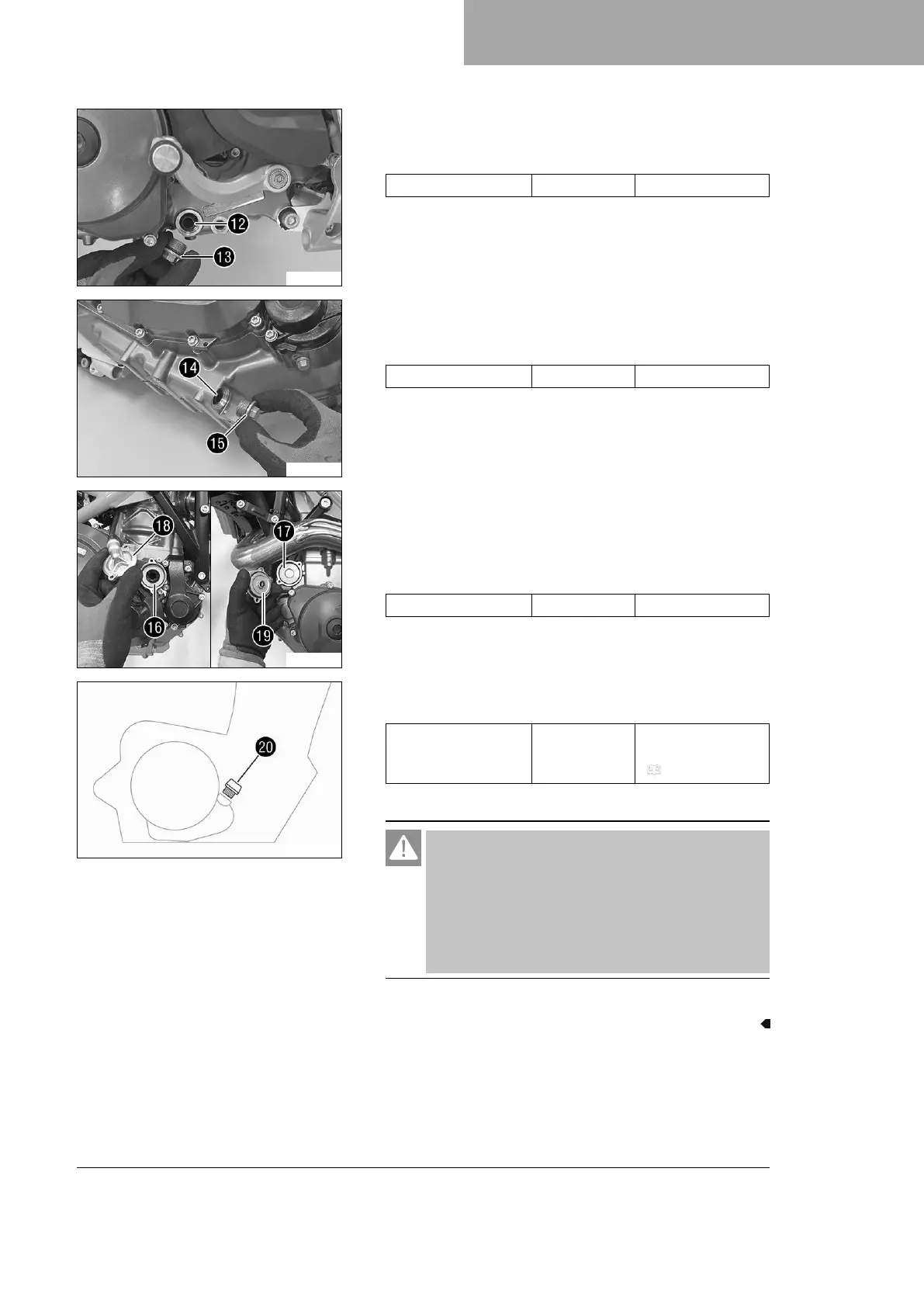

S03324-10
–
Position oil screen
bm
with the O-rings.
–
Mount and tighten screw plug
bn
with the O-ring.
Guideline
Plug, oil screen M20x1.5 15 Nm (11.1 lbf ft)
S03325-10
–
Position oil screen
bo
with the O-rings.
–
Mount and tighten screw plug
bp
with the O-ring.
Guideline
Plug, oil screen M20x1.5 15 Nm (11.1 lbf ft)
S03326-10
–
Insert oil filters
bq
and
br
.
– Oil the O-rings of the oil filter covers. Mount oil filter cov-
ers
bs
and
bt
.
– Mount and tighten the screws.
Guideline
Screw, oil filter cover M5 6 Nm (4.4 lbf ft)
S03327-10
–
Remove filler plug
ck
with the O-ring, and fill up with engine
oil.
Engine oil 1.70 l
(1.8 qt.)
Engine oil
(SAE 10W/50)
( p. 118)
–
Mount and tighten filler plug
ck
with the O-ring.
Danger
Danger of poisoning Exhaust gases are toxic and inhal-
ing them may result in unconsciousness and death.
– Always make sure there is sufficient ventilation
when running the engine.
– Use effective exhaust extraction when starting or
running the engine in an enclosed space.
– Start the engine and check for leaks.
