SERVICE WORK ON THE CHASSIS 11
49

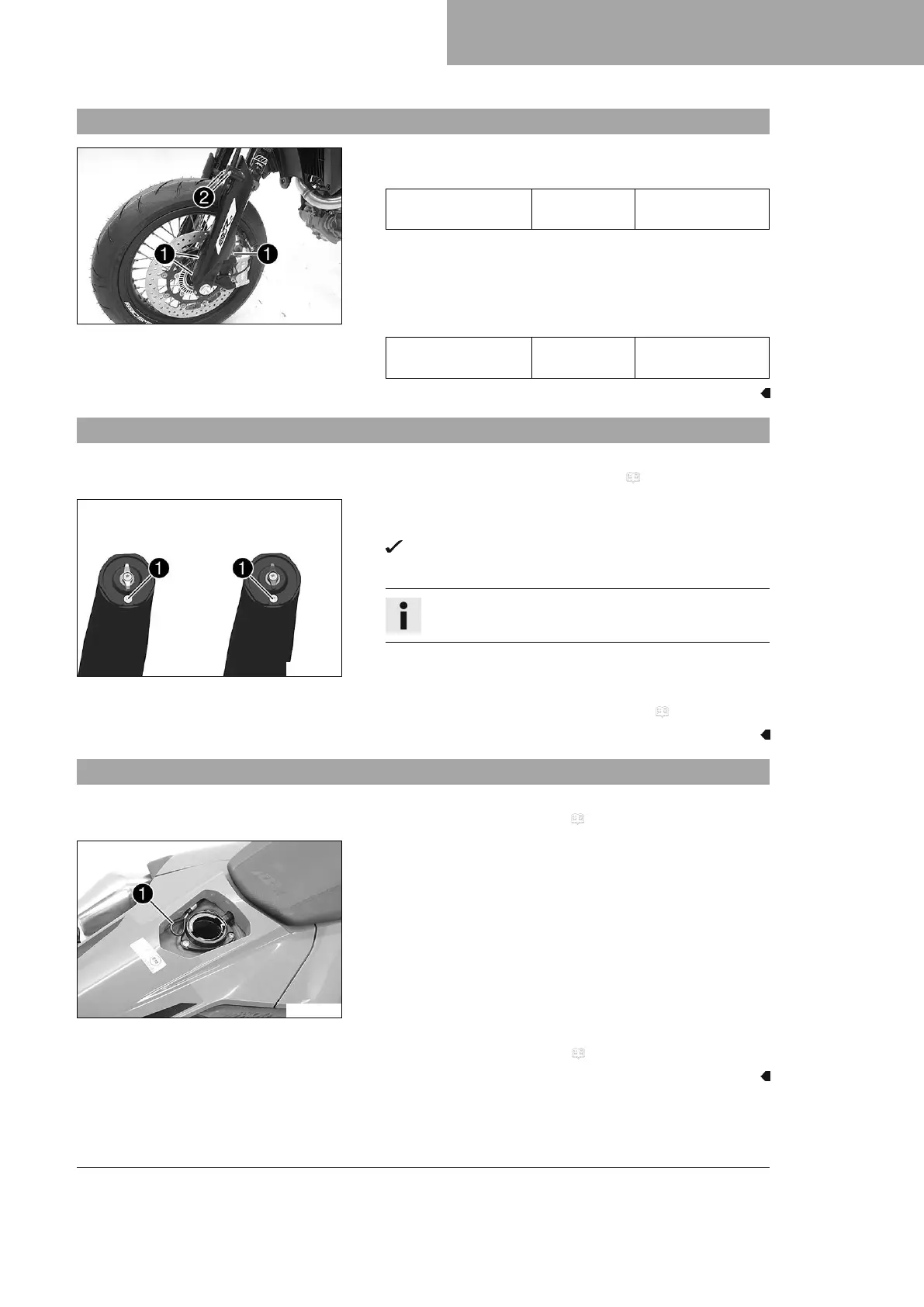

11.9 Installing the fork protector
S03276-11
–
Position the left fork protector. Mount and tighten screws
1
.
Guideline
Remaining screws,
chassis
M6 10 Nm (7.4 lbf ft)
– Position brake line, wiring harness, and clamp. Mount and
tighten screws
2
.
–
Position the right fork protector. Mount and tighten
screws
1
.
Guideline
Remaining screws,
chassis
M6 10 Nm (7.4 lbf ft)
11.10 Bleeding the fork legs
Preparatory work
– Raise the motorcycle with a lift stand. ( p. 46)
S04585-12
Main work
–
Release bleeder screws
1
.
Any excess pressure escapes from the interior of the fork.
– Tighten the bleeder screws.
Info
Carry out this operation on both fork legs.
Finishing work
– Remove the motorcycle from the lift stand. ( p. 46)
11.11 Removing the seat
Preparatory work
– Open the fuel tank filler cap. ( p. 19)
S04383-10
Main work
–
Pull on loop
1
and raise the rear of the seat.
– Pull the seat back and lift it off.
Finishing work
– Close the fuel tank filler cap. ( p. 20)
