TUNING THE CHASSIS 10
41

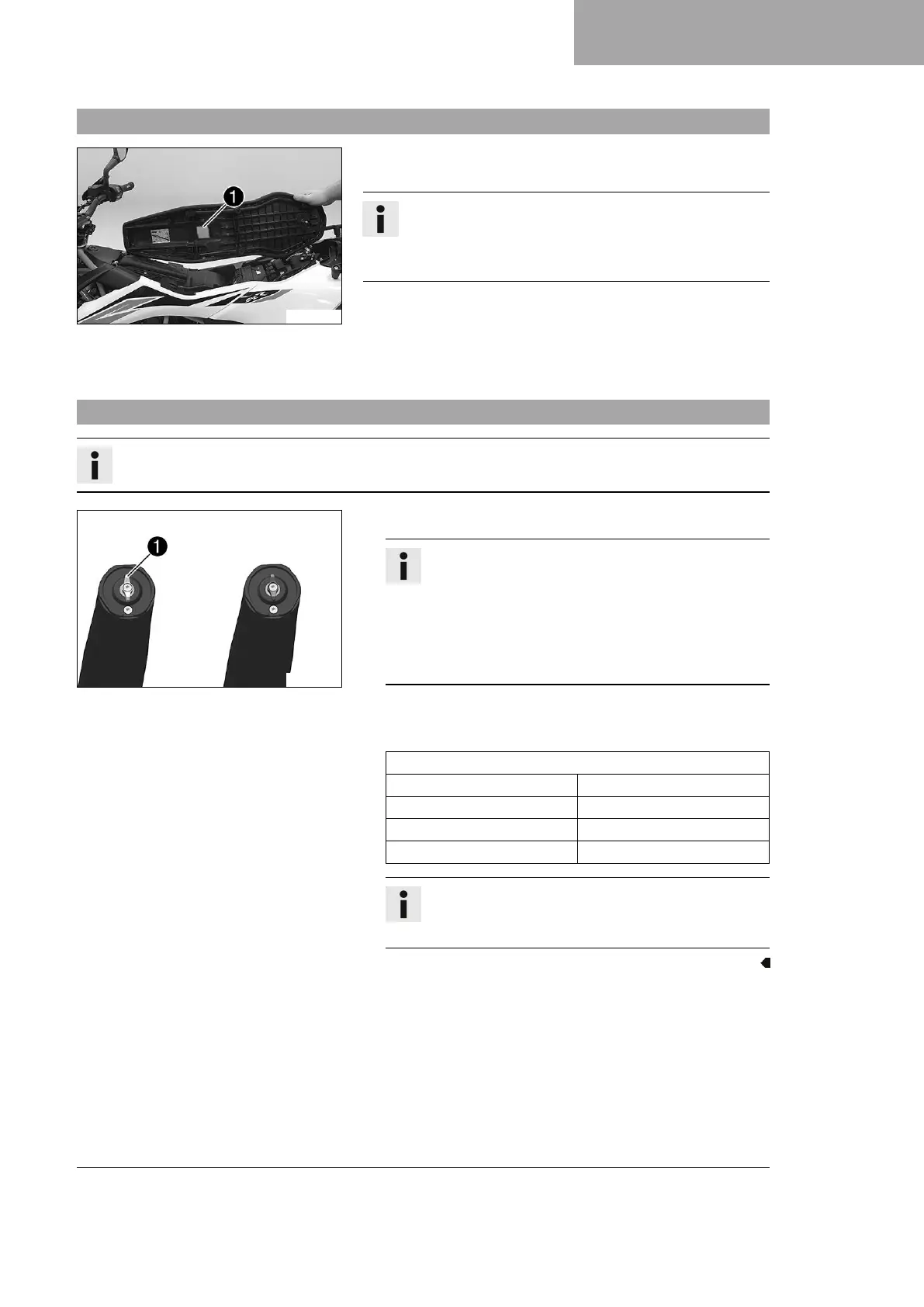

10.1 Fork/shock absorber
S03280-10
The fork and the shock absorber offer many options for adapting
the chassis to the riding style and the payload.
Info
The recommendations for the suspension setting are shown
in table
1
. The table is located on the underside of the
front rider's seat.
These adjustments should be understood as a guideline and
should always be the basis for one’s own personal suspension
setting. Do not change the adjustments at random, as otherwise
the riding characteristics could deteriorate, particularly at high
speeds.
10.2 Adjusting the compression damping of the fork
Info
The hydraulic compression damping determines the fork suspension behavior.
S04585-10
–
Turn white adjusting screw
1
clockwise as far as it will go.
Info
Adjusting screw
1
is located at the upper end of the
left fork leg.
The compression damping is located in left fork
leg COMP (white adjusting screw). The rebound
damping is located in right fork leg REB (red adjusting
screw).
– Turn counterclockwise by the number of clicks corresponding
to the fork type.
Guideline
Compression damping
Comfort 20 clicks
Standard 15 clicks
Sport 10 clicks
Full payload 10 clicks
Info
Turn clockwise to increase damping; turn counterclock-
wise to reduce damping during compression.
