ELECTRICAL SYSTEM 14
83

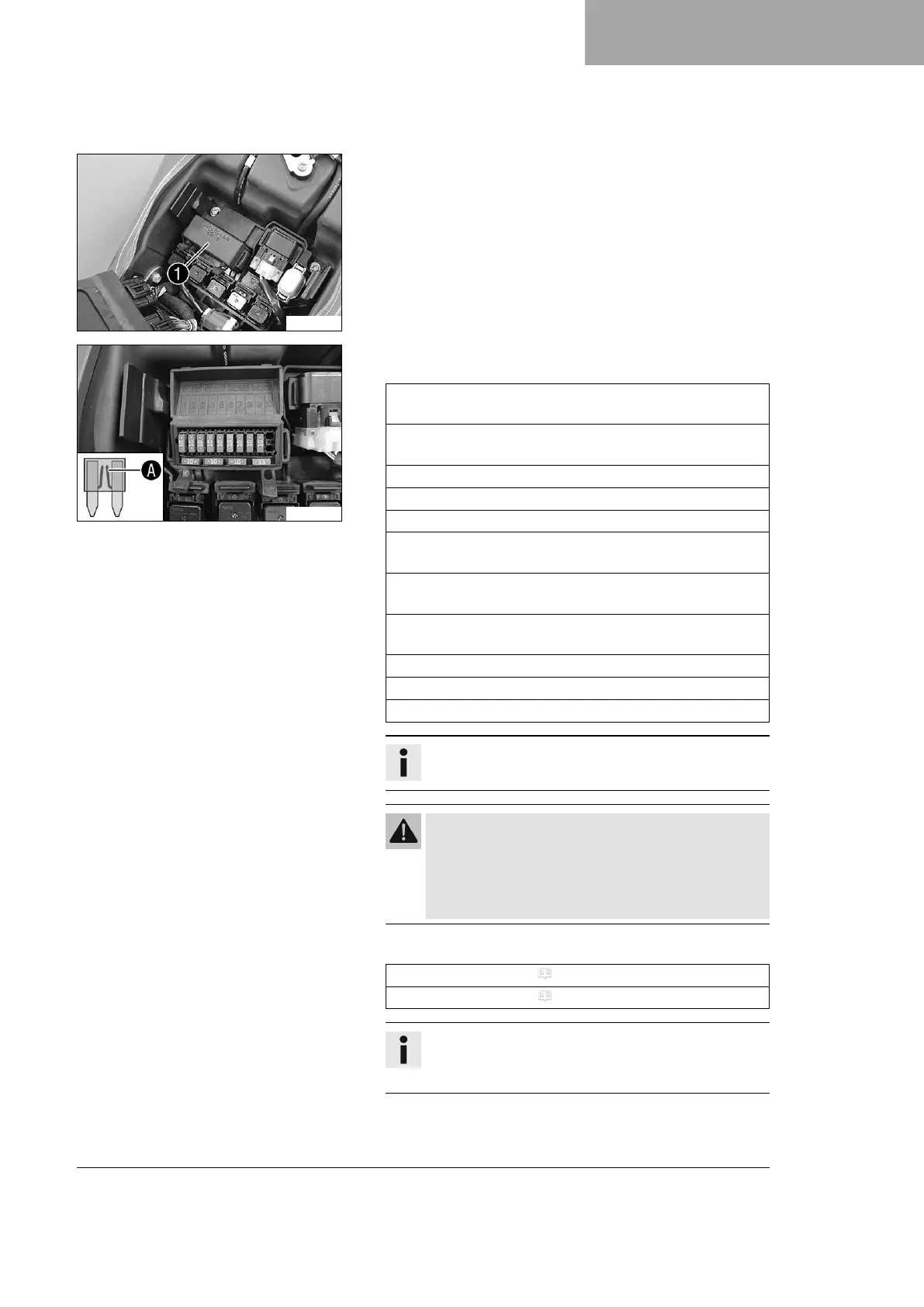

– Pull off engine electronics control unit from the holder and
hang it to the side.
S04584-10
Main work
–
Open fuse box cover
1
.
S04583-10
– Remove the faulty fuse.
Guideline
Fuse 1 - 10 A - ignition, combination instrument, clock,
engine electronics control unit
Fuse 2 - 10 A - ignition, combination instrument, engine
electronics control unit
Fuse 3 - 10 A - fuel pump
Fuse 4 - 10 A - radiator fan
Fuse 5 - 10 A - horn, brake light, turn signal
Fuse 6 - 15 A - high beam, low beam, position light, tail
light, license plate lamp
Fuse 7 - 10 A - for auxiliary equipment ACC 1 (permanent
positive)
Fuse 8 - 10 A - for auxiliary equipment ACC 2 (ignition
plus), USB charging socket
Fuse 9 - 10 A - ABS
Fuse 10 - not assigned
Fuse SPARE - 10 A/15 A - spare fuses
Info
A faulty fuse has a burned-out fuse wire
A
.
Warning
Fire hazard Incorrect fuses overload the electrical sys-
tem.
– Only use fuses with the required ampere value.
– Do not bypass or repair fuses.
– Insert the spare fuse with the correct rating.
Fuse (75011088010) ( p. 112)
Fuse (75011088015) ( p. 112)
Tip
Put a spare fuse in the fuse box so that it is available if
needed.
– Check the function of the electrical power consumer.
– Close the fuse box cover.
