11 SERVICE WORK ON THE CHASSIS
60
Note
Environmental hazard Hazardous substances cause environmental damage.
– Dispose of oils, grease, filters, fuel, cleaning agents, brake fluid, etc., correctly and in compliance with
the applicable regulations.
Info
The fluid level rises with increasing wear of the clutch facing discs.
Never use DOT 5 brake fluid. It is silicone-based and purple in color. Oil seals and clutch lines are not
designed for DOT 5 brake fluid.
Avoid contact between brake fluid and painted parts. Brake fluid attacks paint.
Only use clean brake fluid from a sealed container.

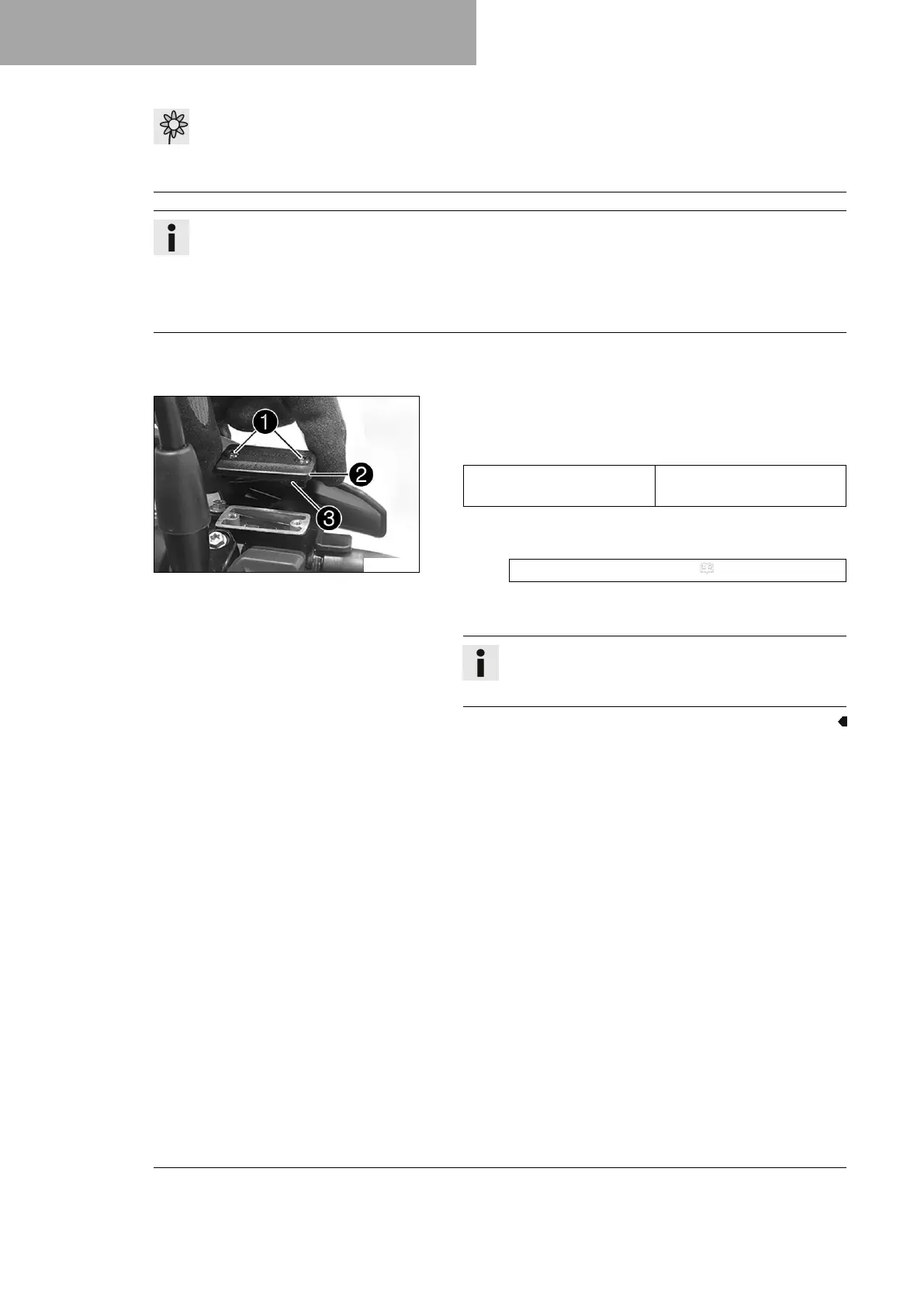

– Move the clutch fluid reservoir mounted on the handlebar to a
horizontal position.
S03341-10
–
Remove screws
1
.
–
Take off cover
2
with membrane
3
.
– Check the fluid level.
Fluid level below container
rim
4 mm (0.16 in)
» If the fluid level does not meet specifications:
– Correct the fluid level of the hydraulic clutch.
Brake fluid DOT 4 / DOT 5.1 ( p. 118)
– Position the cover with the membrane. Mount and tighten the
screws.
Info
Clean up the overflowed or spilled brake fluid immedi-
ately with water.
