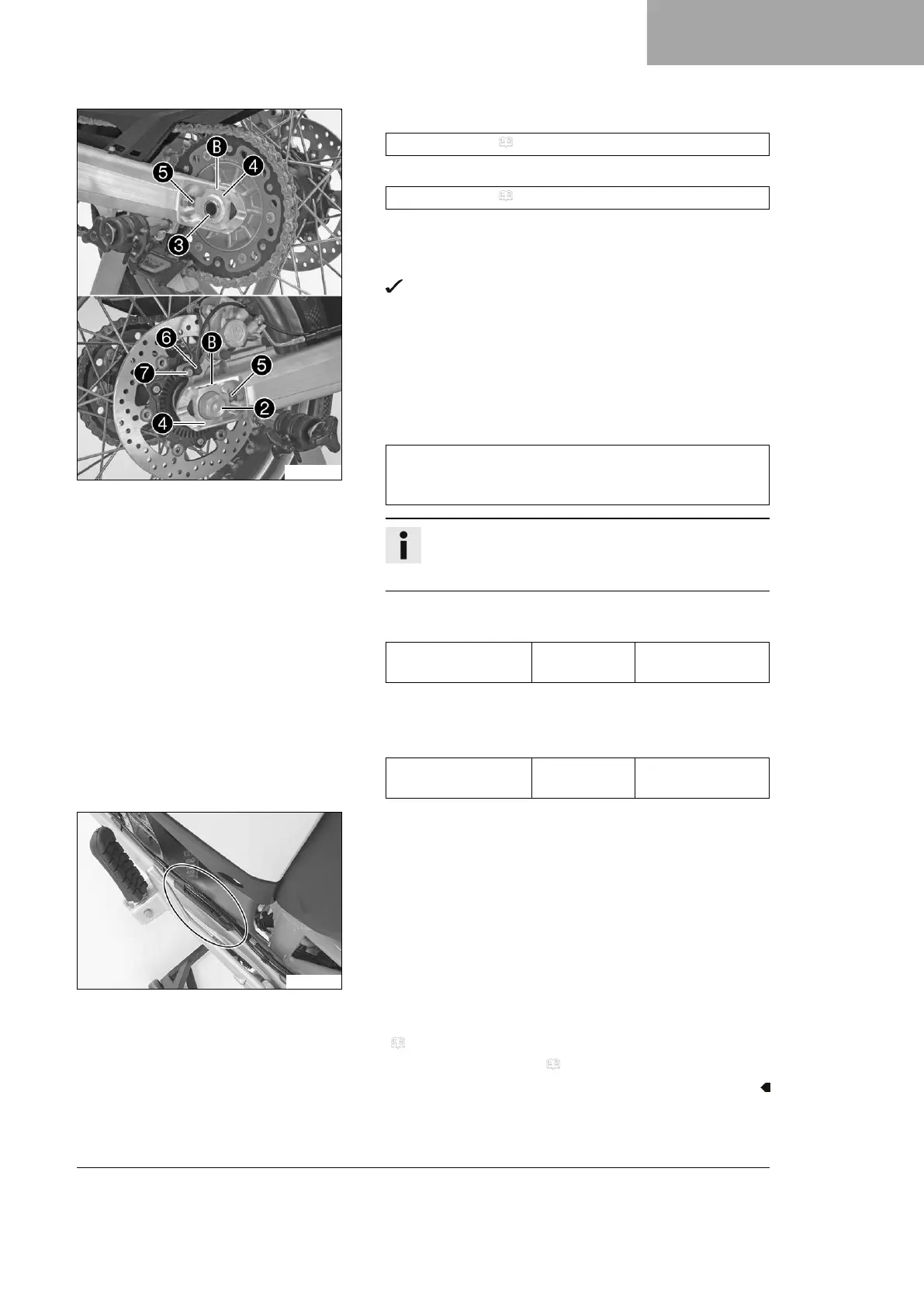

WHEELS, TIRES 13
73
M01388-10
–
Clean and grease the thread of the wheel spindle and nut
2
.
Long-life grease ( p. 120)
– Clean and grease the wheel spindle.
Long-life grease ( p. 120)
– Mount the damping rubber and rear sprocket carrier in the rear
wheel.
– Position the rear wheel.
The brake linings are correctly positioned.
– Push the rear wheel forward as far as possible and lay the
chain on the rear sprocket.
–
Mount wheel spindle
3
and chain adjuster
4
. Mount
nut
2
, but do not tighten yet.
–
Make sure that chain adjusters
4
are fitted correctly on
adjusting screws
5
.
Guideline
In order for the rear wheel to be correctly aligned, the mark-
ings on the left and right chain adjusters must be in the
same position relative to reference markings
B
.
Info
Mount left and right chain adjusters
4
in the same
position.
–
Tighten nut
2
.
Guideline
Nut, rear wheel spin-
dle
M25x1.5 90 Nm (66.4 lbf ft)
–
Position wheel speed sensor
6
in the hole.
–
Mount and tighten screw
7
.
Guideline
Screw, wheel speed
sensor
M6 6 Nm (4.4 lbf ft)
R05230-10
– Position the brake line in the guide.
– Operate the foot brake lever repeatedly until the brake lin-
ings are in contact with the brake disc and there is a pressure
point.
Finishing work
– Remove the rear of the motorcycle from the wheel stand.
( p. 47)
– Check the chain tension. ( p. 55)
