CONTROLS 12
5.6Light switch
B01015-12

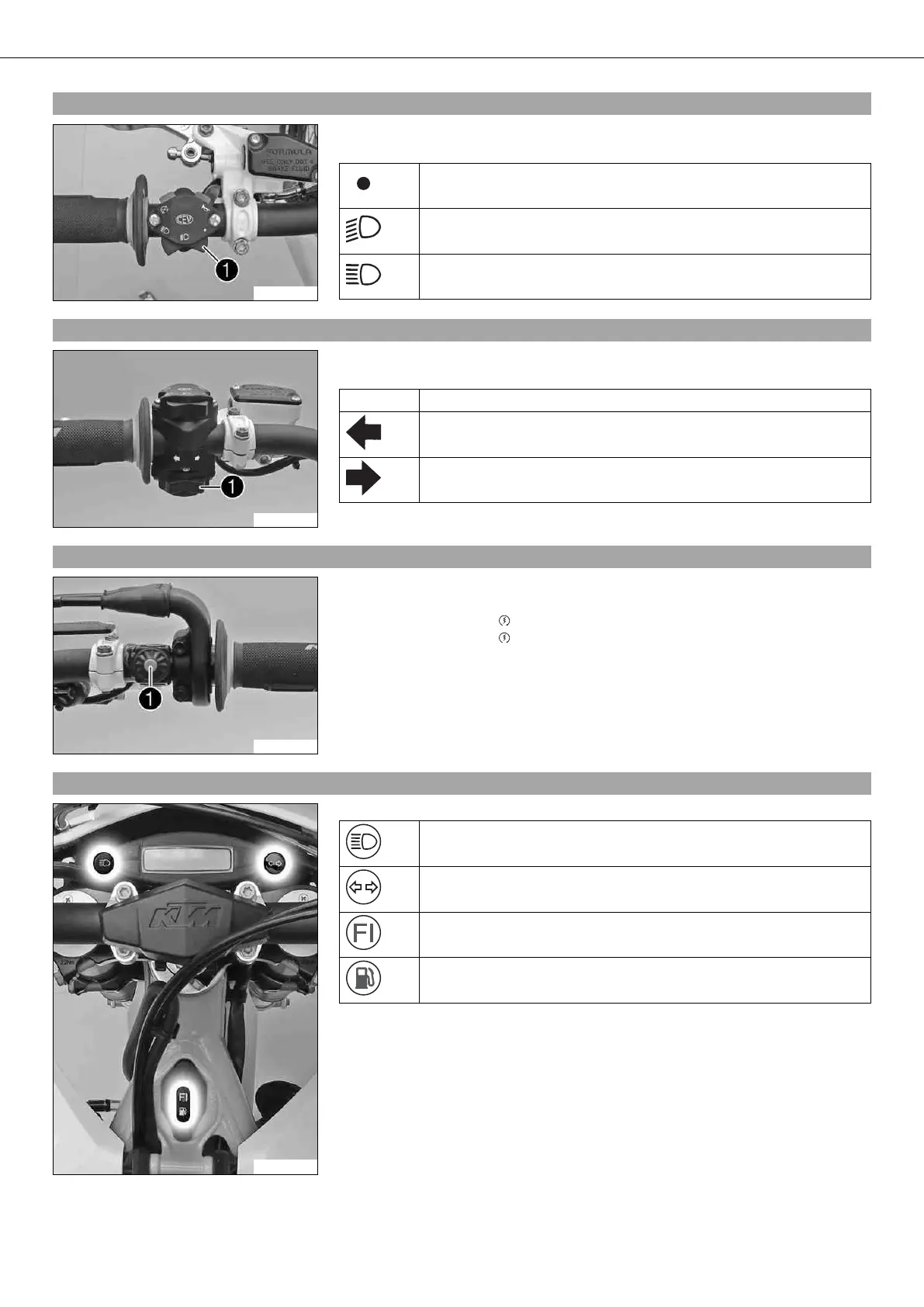

The light switch 1 is fitted on the left side of the handlebar.
Possible states
Light off – Light switch is turned to the right. In this position, the light
is switched off.
Low beam on – Light switch is in the central position. In this position,
the low beam and tail light are switched on.
High beam on – Light switch is turned to the left. In this position, the
high beam and the tail light are switched on.
5.7Turn signal switch
B01016-10
Turn signal switch 1 is fitted on the left side of the handlebar.
Possible states
Turn signal light off – Turn signal switch is in the central position.
Turn signal light, left, on – Turn signal switch is turned to the left.
Turn signal light, right, on – Turn signal switch is turned to the right.
5.8Electric starter button
B01017-10
Electric starter button 1 is fitted on the right side of the handlebar.
Possible states
• Electric starter button in basic position
• Electric starter button pressed – In this position, the electric starter is actuated.
5.9Overview of indicator lamps
B01018-01
Possible states
The high beam indicator lamp lights up blue – The high beam is
switched on.
Turn signal indicator light flashes green – The turn signal is switched
on.
FI warning lamp (MIL) lights up/flashes orange – The OBD has detected
an emission- or safety-critical fault.
The fuel level warning lamp lights up orange – The fuel level has
reached the reserve mark.
