KTM Freeride 350 User Manual

TUNING THE CHASSIS 32
Info
Turn clockwise to increase damping; turn counterclockwise to reduce damp-
ing.

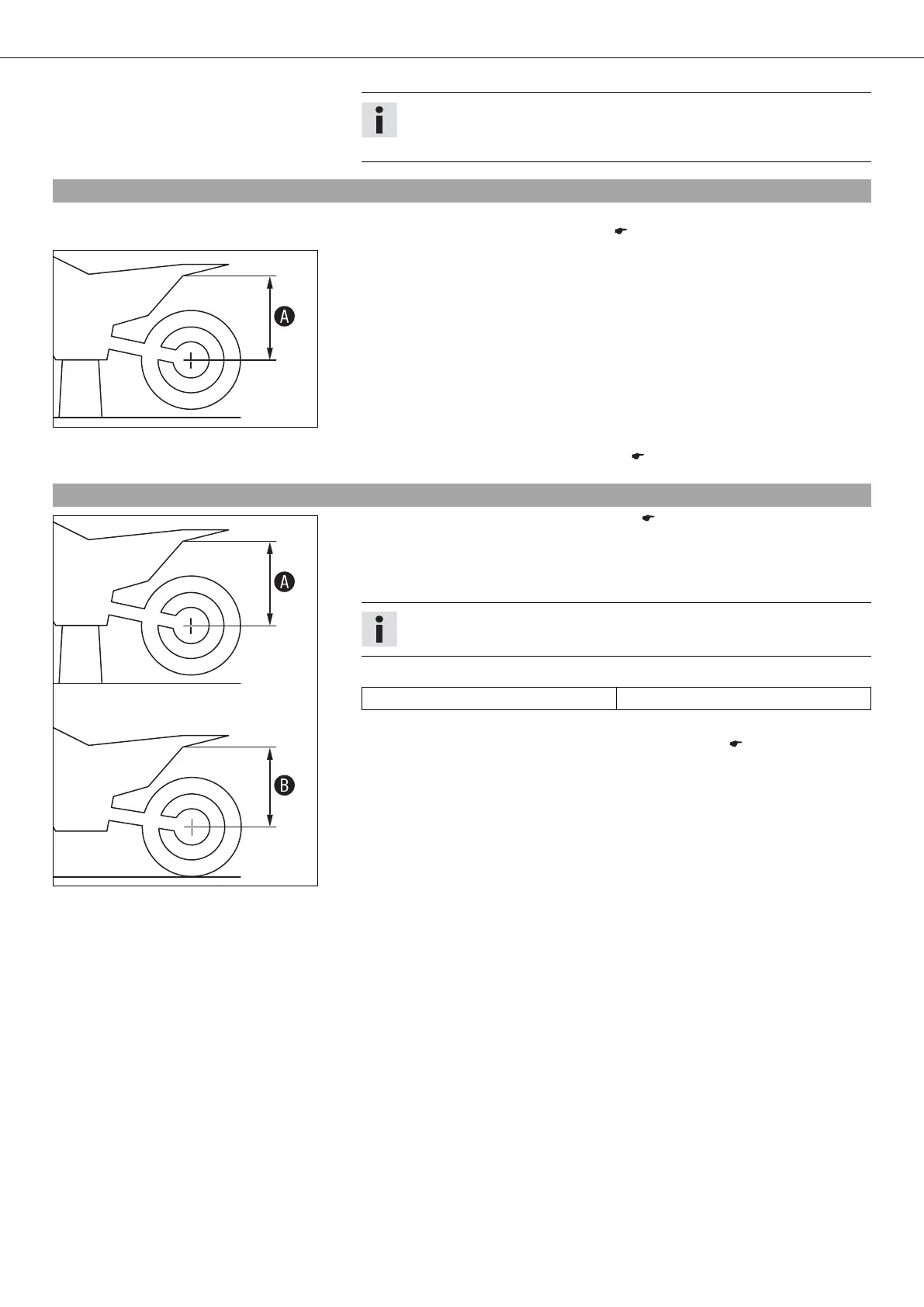

9.6Measuring rear wheel sag unloaded
Preliminary work
– Raise the motorcycle with the lift stand. ( p. 37)
400988-10
Main work
– Measure the vertical distance between the rear axle and a fixed point such as a
marking on the side cover.
– Note down the value as dimension A.
Follow-up work
– Remove the motorcycle from the lift stand. ( p. 37)
9.7Checking the static sag of the shock absorber
400989-10
– Measure distance A of rear wheel unloaded. ( p. 32)
– Hold the motorcycle upright with the aid of an assistant.
– Measure the distance between the rear axle and the fixed point again.
– Note down the value as dimension B.
Info
The static sag is the difference between measurements A and B.
– Check the static sag.
Static sag 15 mm (0.59 in)
» If the static sag is less or more than the specified value:
–
Adjust the spring preload of the shock absorber. x ( p. 33)

KTM Freeride 350 Specifications

General

Engine Type	Single cylinder, 4-stroke
Displacement	349.7 cc
Bore x Stroke	88 mm x 57.5 mm
Cooling	Liquid cooled
Transmission	6-speed
Starter	Electric starter
Dry Weight	99.5 kg
Compression Ratio	12.3:1
Weight (without fuel)	99.5 kg
Frame	Central tube frame made of chrome molybdenum steel
Front Suspension	WP Suspension 43 mm upside-down fork
Rear Suspension	WP PDS shock absorber
Front Brake	260 mm
Rear Brake	210 mm
Fuel Tank Capacity	5.5 liters
Fuel System	Electronic fuel injection (EFI)
ABS	No
