SERVICE WORK ON THE CHASSIS 44
Info
The heim joint for the shock absorber at the swing arm is Teflon coated. It
must not be greased with grease or with other lubricants. Lubricants dis-
solve the Teflon coating, thereby drastically reducing the service life.
– Tighten screw 4.
Guideline
Screw, upper subframe M10 45 Nm
(33.2 lbf ft)
Subsequent work
– Lock the seat. ( p. 45)
– Remove the motorcycle from the lift stand. ( p. 37)

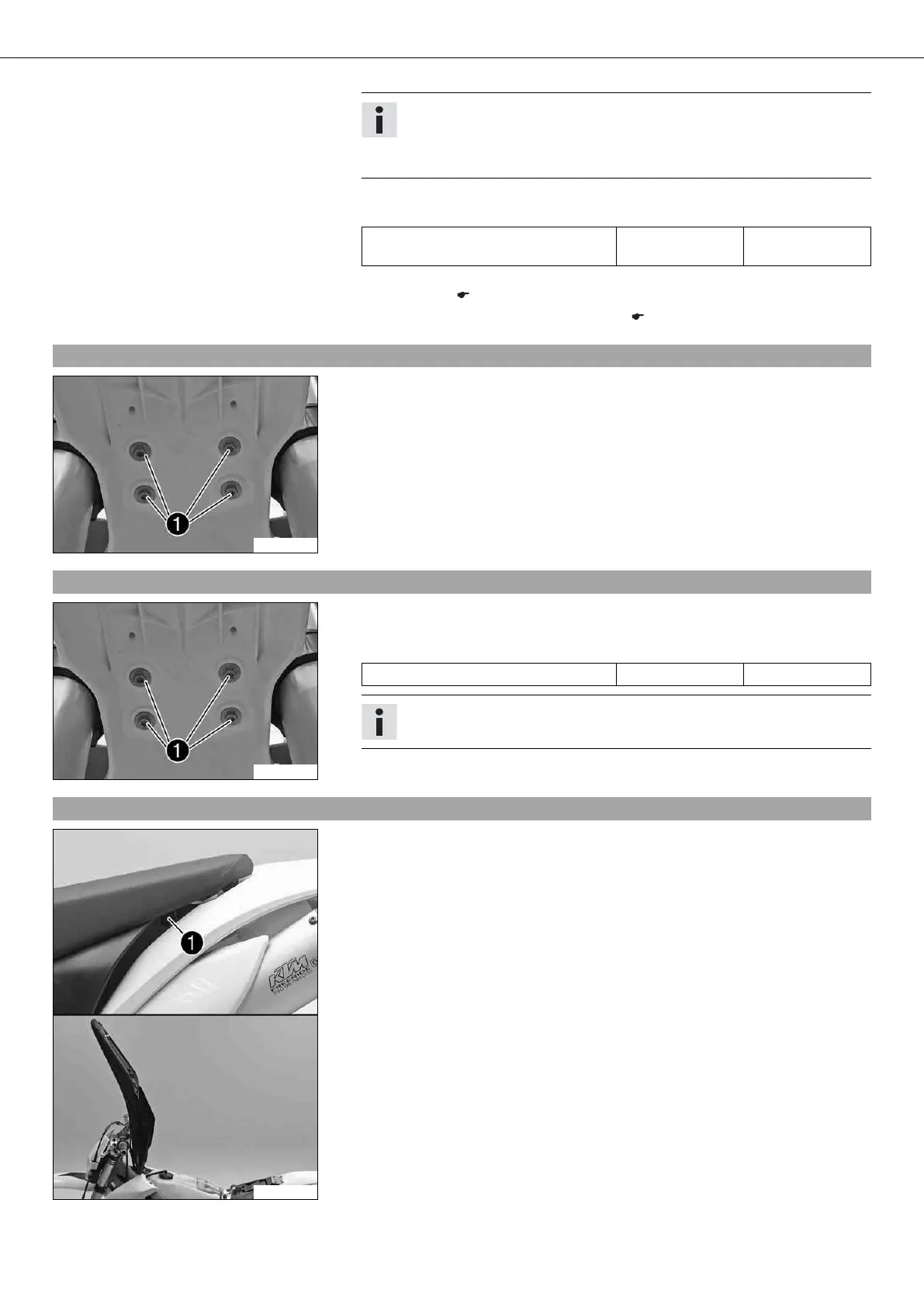

10.16Removing the front fender
B01030-10
– Remove screws 1. Remove the front fender.
– Ensure that the spacers remain in place.
10.17Installing the front fender
B01030-10
– Ensure that the spacers are mounted in the fender.
– Position the front fender. Mount and tighten screws 1.
Guideline
Remaining screws, chassis M6 10 Nm (7.4 lbf ft)
Info
Make sure the holding lugs engage in the headlight mask.
10.18Folding the seat up
B01021-10
– Press release lever 1.
– Lift the seat and fold it up.
