SERVICE WORK ON THE CHASSIS 54
400985-01

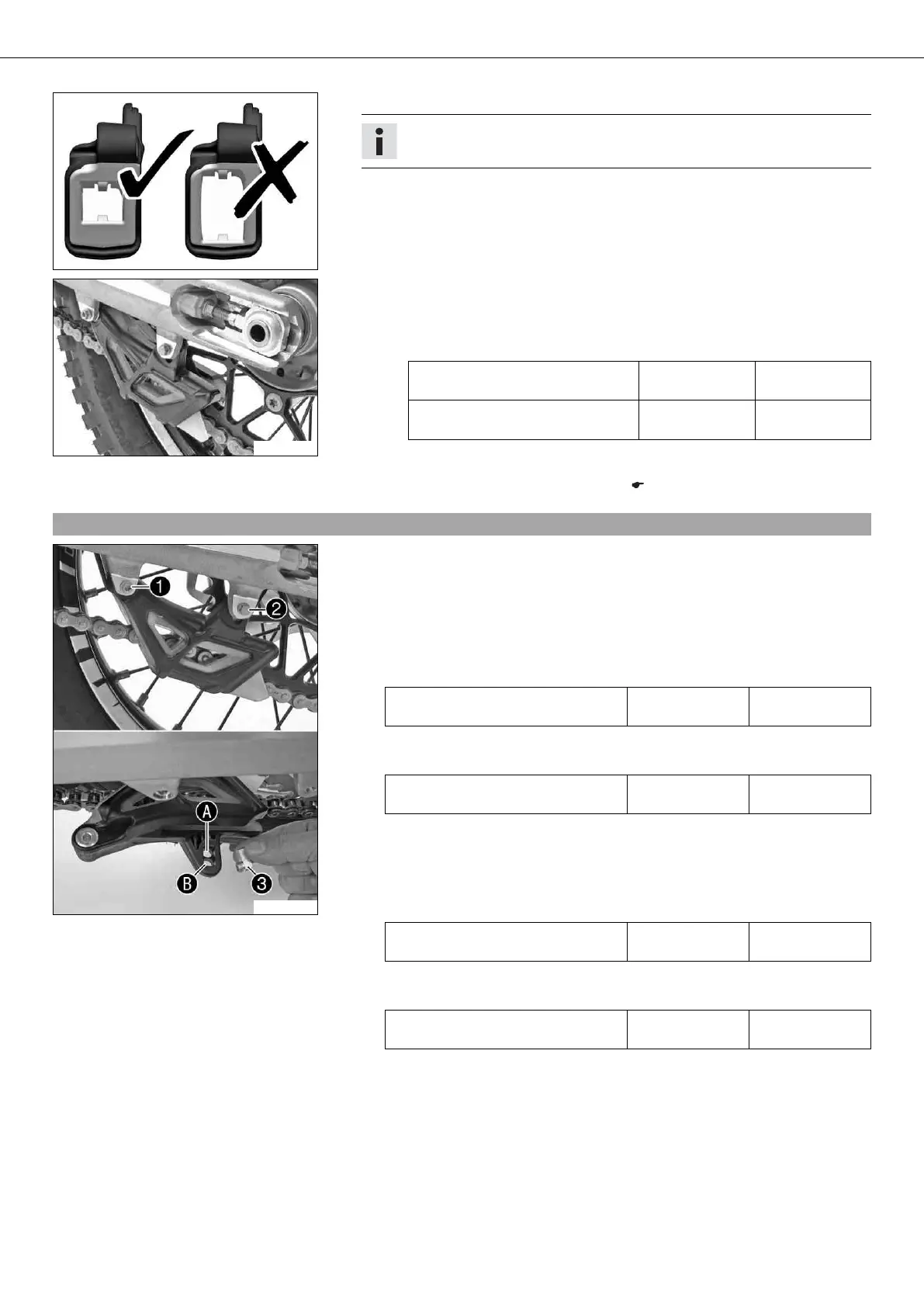

– Check the chain guide for wear.
Info
Wear can be seen on the front of the chain guide.
» If the light part of the chain guide is worn:
–
Change the chain guide. x
B01070-01
– Check that the chain guide is firmly seated.
» If the chain guide is loose:
– Tighten the chain guide.
Guideline
Remaining screws, chassis M6 10 Nm
(7.4 lbf ft)
Remaining nuts, chassis M6 10 Nm
(7.4 lbf ft)
Subsequent work
– Remove the motorcycle from the lift stand. ( p. 37)
10.35Adjusting the chain guide x
B01071-10
– Remove the nut of screw 1.
– Remove screws 1 and 2. Take off the chain guide.
Condition
Number of teeth: ≤ 44 teeth
– Insert nut 3 in hole A. Position the chain guide.
– Mount and tighten screws 1 and 2.
Guideline
Remaining screws, chassis M6 10 Nm
(7.4 lbf ft)
– Mount the nut on screw 1 and tighten.
Guideline
Remaining nuts, chassis M6 10 Nm
(7.4 lbf ft)
Condition
Number of teeth: ≥ 45 teeth
– Insert nut 3 in hole B. Position the chain guide.
– Mount and tighten screws 1 and 2.
Guideline
Remaining screws, chassis M6 10 Nm
(7.4 lbf ft)
– Mount the nut on screw 1 and tighten.
Guideline
Remaining nuts, chassis M6 10 Nm
(7.4 lbf ft)
