KTM Freeride 350 - Removing the Fork Protector; Installing the Fork Protector

SERVICE WORK ON THE CHASSIS 39
B01054-11

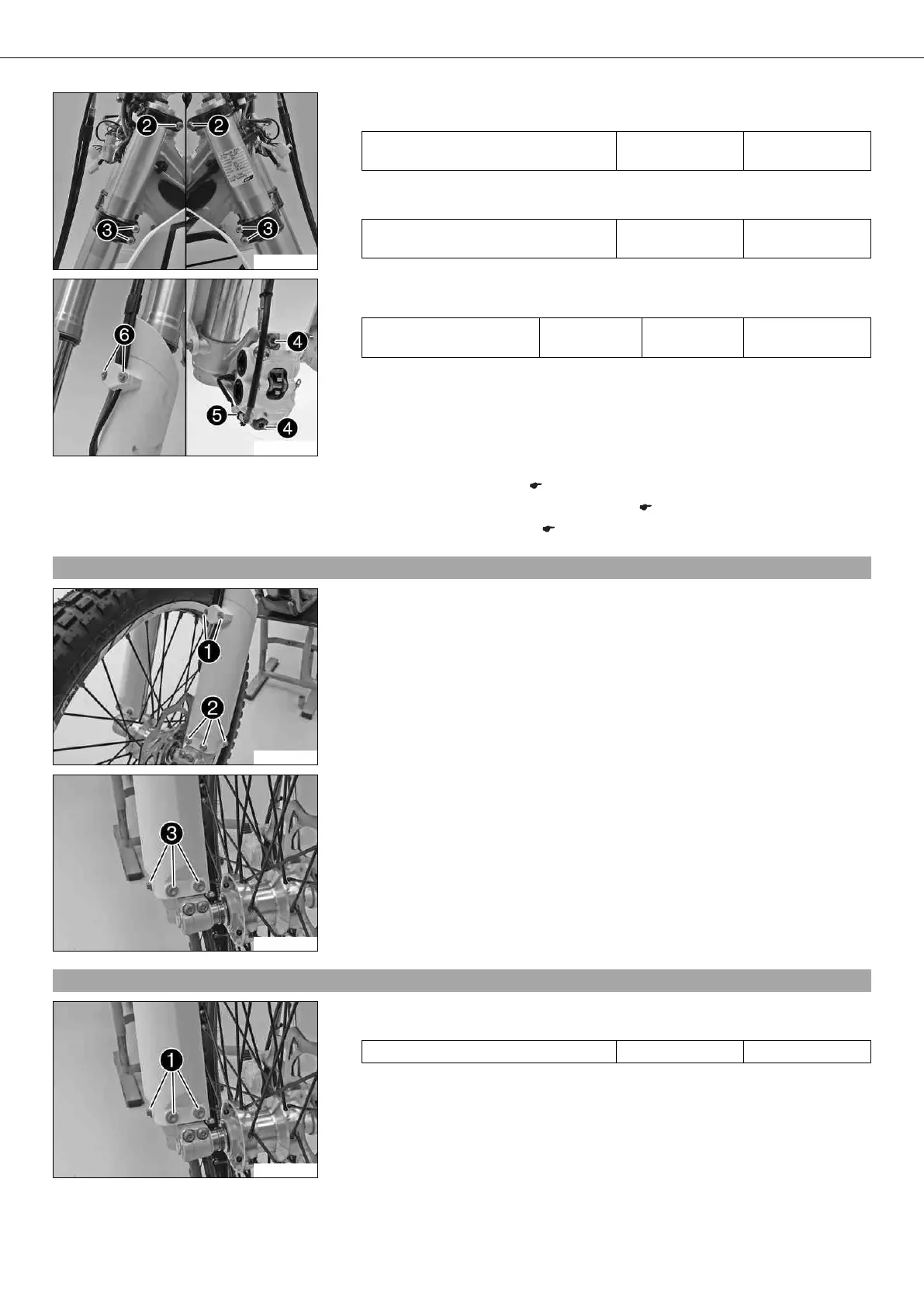

– Tighten screws 2.
Guideline
Screw, top triple clamp M8 22 Nm
(16.2 lbf ft)
– Tighten screws 3.
Guideline
Screw, bottom triple clamp M8 18 Nm
(13.3 lbf ft)
B01105-11
– Position brake caliper, and mount and tighten screws 4.
Guideline
Screw, front brake caliper M8 25 Nm
(18.4 lbf ft)
Loctite
®
243™
– Mount cable binder 5.
– Position the brake line, wiring harness, and clamp. Mount and tighten screws 6.
Subsequent work
–
Install the front wheel. x ( p. 68)
– Refit the headlight mask with the headlight. ( p. 76)
– Check the headlight setting. ( p. 78)
10.7Removing the fork protector x
B01039-10
– Remove screws 1. Take off the clamp.
– Remove screws 2 on the left fork leg. Take off the fork protector.
B01040-10
– Remove screws 3 on the right fork leg. Take off the fork protector.
10.8Installing the fork protector x
B01040-11
– Position the fork protection on the right fork leg. Mount and tighten screws 1.
Guideline
Remaining screws, chassis M6 10 Nm (7.4 lbf ft)
