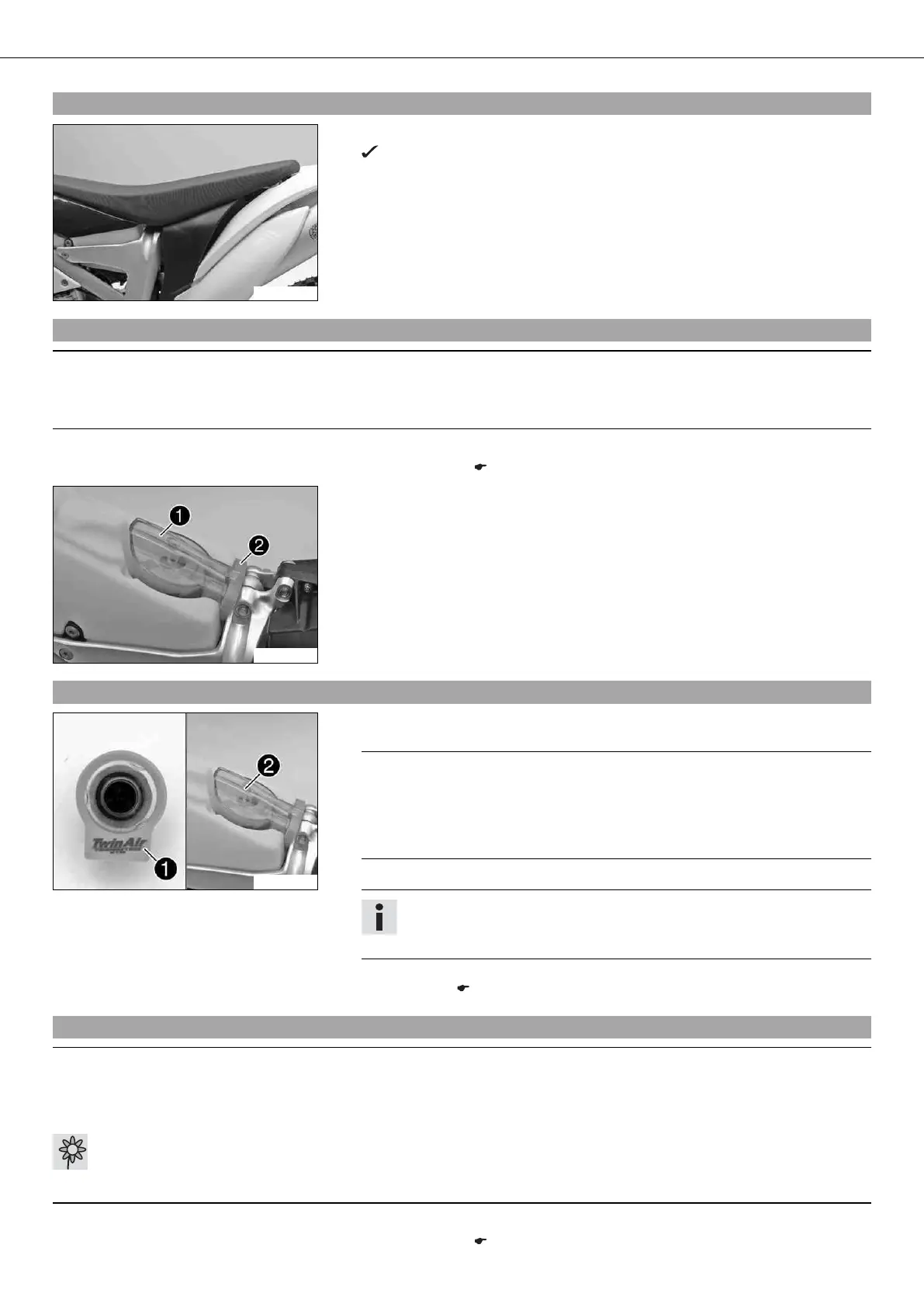

SERVICE WORK ON THE CHASSIS 45
10.19Locking the seat
B01022-10
– Fold down the seat and push it down.
The seat engages with an audible click.
– Finally, check that the seat is correctly locked.
10.20Removing the air filter housing x
Note
Engine failure Unfiltered intake air has a negative effect on the service life of the engine.
– Never ride the vehicle without an air filter since dust and dirt can get into the engine and result in increased wear.
Preliminary work
– Fold the seat up. ( p. 44)
B01060-10
Main work
– Pull off air filter housing 1 and pre-filter 2 toward the top.
10.21Installing the air filter housing x
B01061-10
Main work
– Position pre-filter 1 on the air filter housing.
Note
Engine failure If the pre-filter is incorrectly mounted or not mounted at all, the air-
fuel mixture will be different. This has a negative effect on the service life of the
engine.
– Make sure the pre-filter is seated correctly.
– Attach air filter housing 2 to the inlet sleeve together with the mounted pre-filter.
Info
If the air filter housing is not mounted correctly, dust and dirt may enter the
engine and cause damage.
Subsequent work
– Lock the seat. ( p. 45)
10.22Removing the air filter x
Note
Engine failure Unfiltered intake air has a negative effect on the service life of the engine.
– Never ride the vehicle without an air filter since dust and dirt can get into the engine and result in increased wear.
Warning
Environmental hazard Hazardous substances cause environmental damage.
– Oil, grease, filters, fuel, cleaners, brake fluid, etc., should be disposed of as stipulated in applicable regulations.
Preliminary work
– Fold the seat up. ( p. 44)
