Subsequent work
–
Install the battery. x ( p. 72)
13.4Changing the main fuse
Warning
Fire hazard The electrical system can be overloaded if the wrong fuses are used.
– Use only fuses with the prescribed amperage. Never by-pass or repair fuses.
Info
The main fuse protects all power consumers of the vehicle. It is located behind the battery.
Preliminary work
– Switch off all power consumers and switch off the engine.
– Raise the motorcycle with the lift stand. ( p. 37)
– Fold the seat up. ( p. 44)
–
Remove the shock absorber. x ( p. 43)

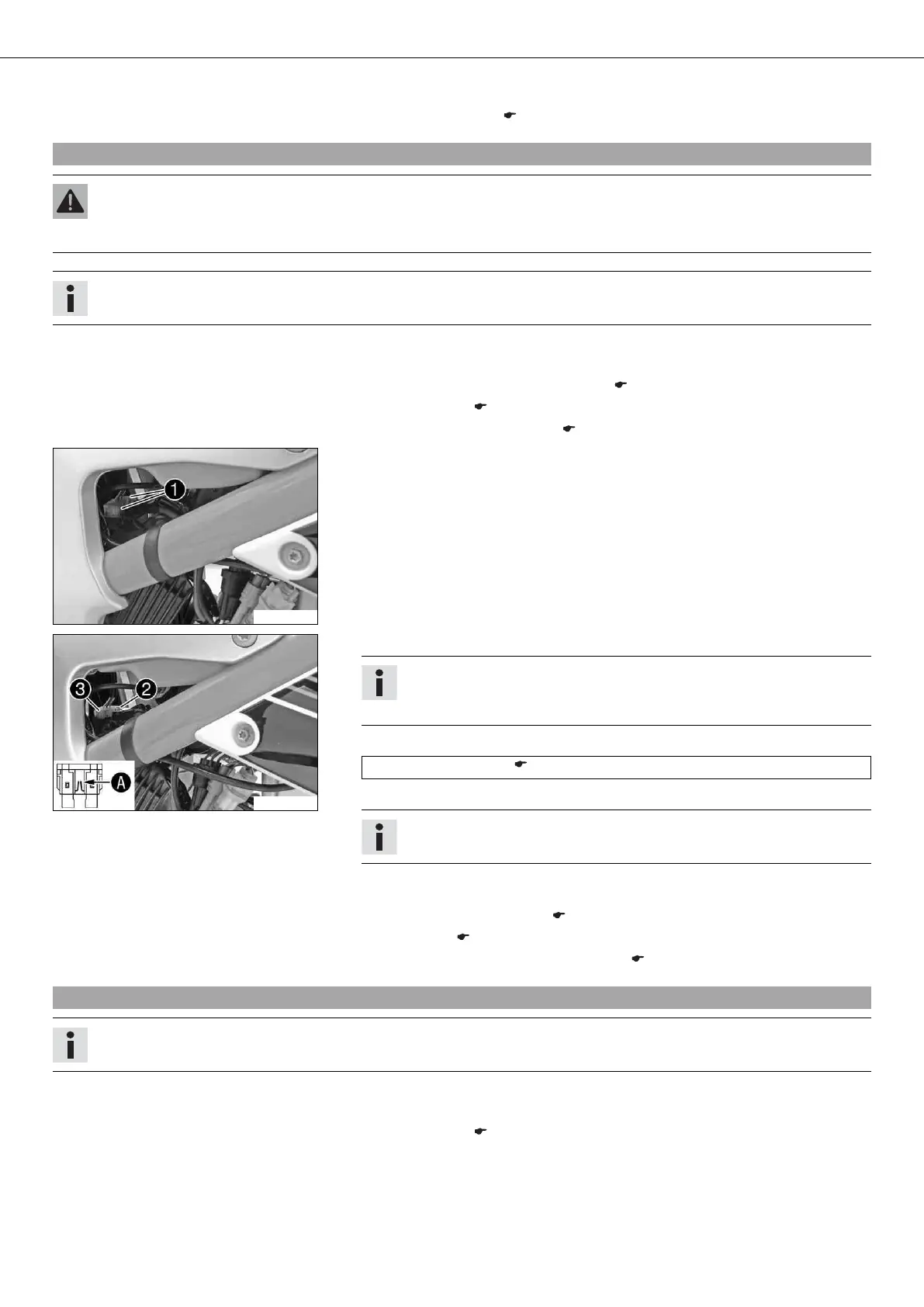

B01109-10
Main work
– Remove protection caps 1.
B01110-10
– Remove the faulty main fuse 2.
Info
A defective fuse is indicated by a burned-out fuse wire A.
A reserve fuse 3 is located in the starter relay.
– Install a new main fuse.
Fuse (58011109120) ( p. 98)
– Check that the electrical equipment is functioning properly.
Tip
Insert the spare fuse so that it is available if needed.
– Mount the protection caps.
Follow-up work
–
Install the shock absorber. x ( p. 43)
– Lock the seat. ( p. 45)
– Remove the motorcycle from the lift stand. ( p. 37)
13.5Changing the fuses of individual power consumers
Info
The fuse box containing the fuses of individual power consumers is located under the seat.
Preliminary work
– Switch off all power consumers and switch off the engine.
– Fold the seat up. ( p. 44)
