TUNING THE ENGINE 84

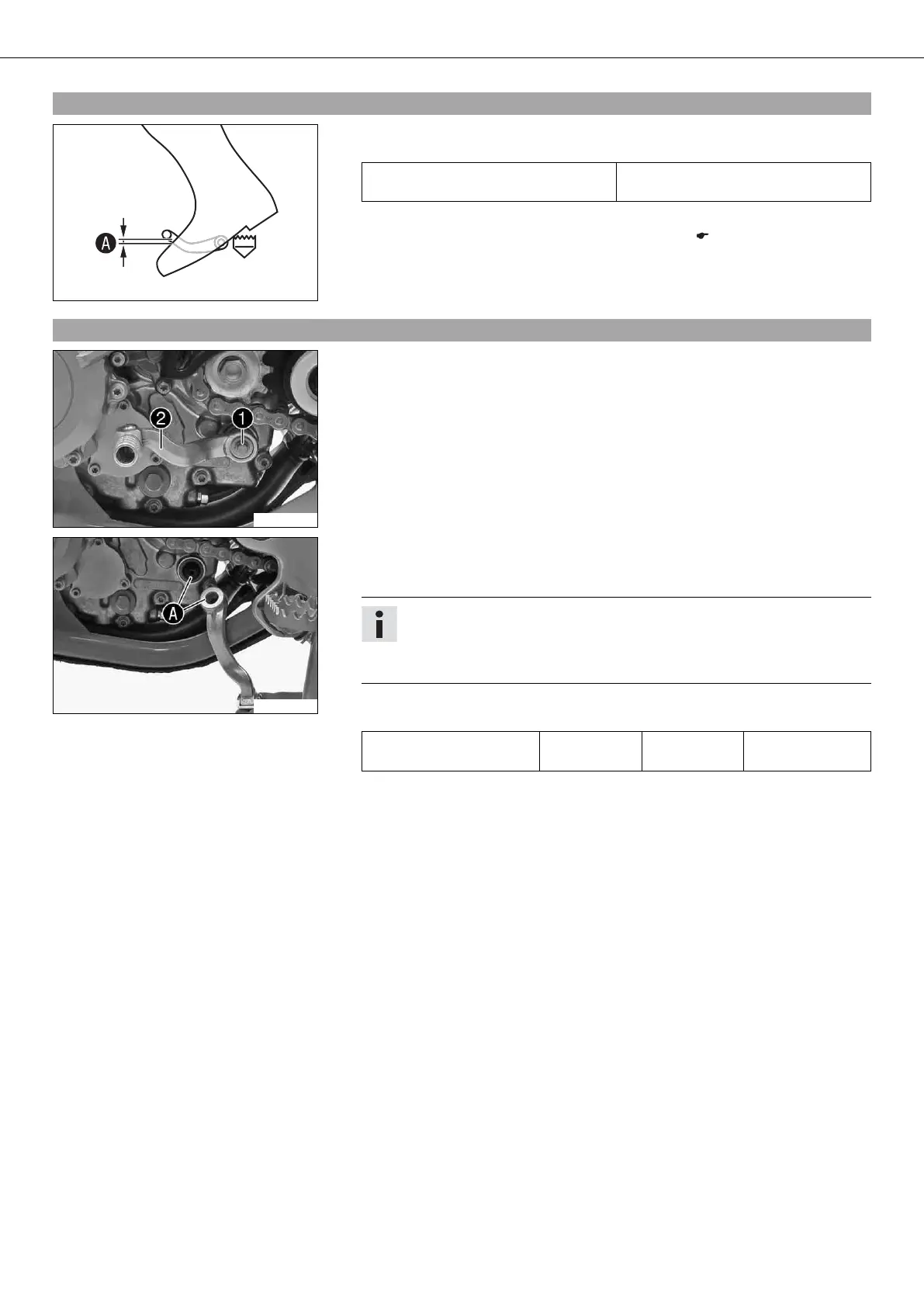

15.4Checking the basic position of the shift lever
400692-10
– Sit on the vehicle in the riding position and determine distance A between the
upper edge of your boot and the shift lever.
Distance between shift lever and upper
edge of boot
10… 20 mm (0.39… 0.79 in)
» If the distance does not meet specifications:
–
Adjust the basic position of the shift lever. x ( p. 84)
15.5Adjusting the basic position of the shift lever x
B01107-10
– Remove screw 1 and remove shift lever 2.
B01108-10
– Clean gear teeth A of the shift lever and shift shaft.
– Mount shift lever 2 on the shift shaft in the required position and engage the gear-
ing.
Info
The range of adjustment is limited.
The shift lever must not come into contact with any other vehicle compo-
nents during the shift procedure.
– Mount and tighten screw 1.
Guideline
Screw, shift lever M6 14 Nm
(10.3 lbf ft)
Loctite
®
243™
