Kubota LA340 - Service of the Backhoe Every 10 Hours; Service of the Backhoe Every 50 Hours

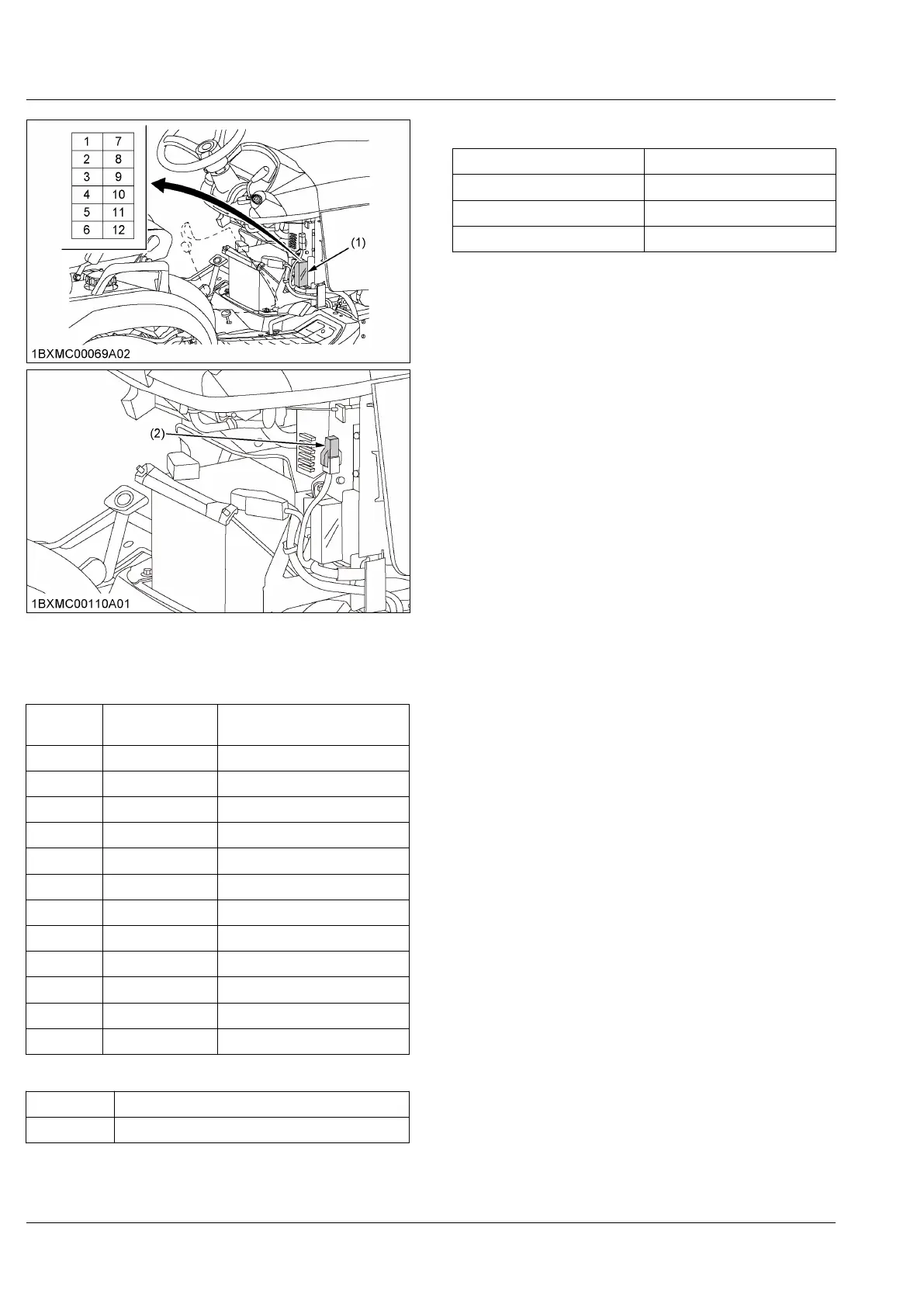

(1) Fuse box (2) Slow blow fuse
Protected circuit
[Fuse box]
FUSE no.
Capacity
(A)
Protected circuit
1 - -
2 - -
3 10 Option (3rd -function)
4 10 OPC
5 15 DC outlet
6 5 Fuel pump
7 - -
8 5 Glow indicator
9 5 Meter
10 15 Stop solenoid
11 20 Lamp
12 20 Option (work light)
Slow blow fuse
Capacity Protected circuit
50 A Check circuit against wrong battery connection
3. Replacing the light bulb
Light Capacity
Head light 37.5 W×2
Tail light 12.8 W×2
Hazard light 23 W×2
Head light
1. T
ake
the light bulb out of the body of the light and
replace with a new one.
Other lights
1. Detach the lens and replace the light bulb.
