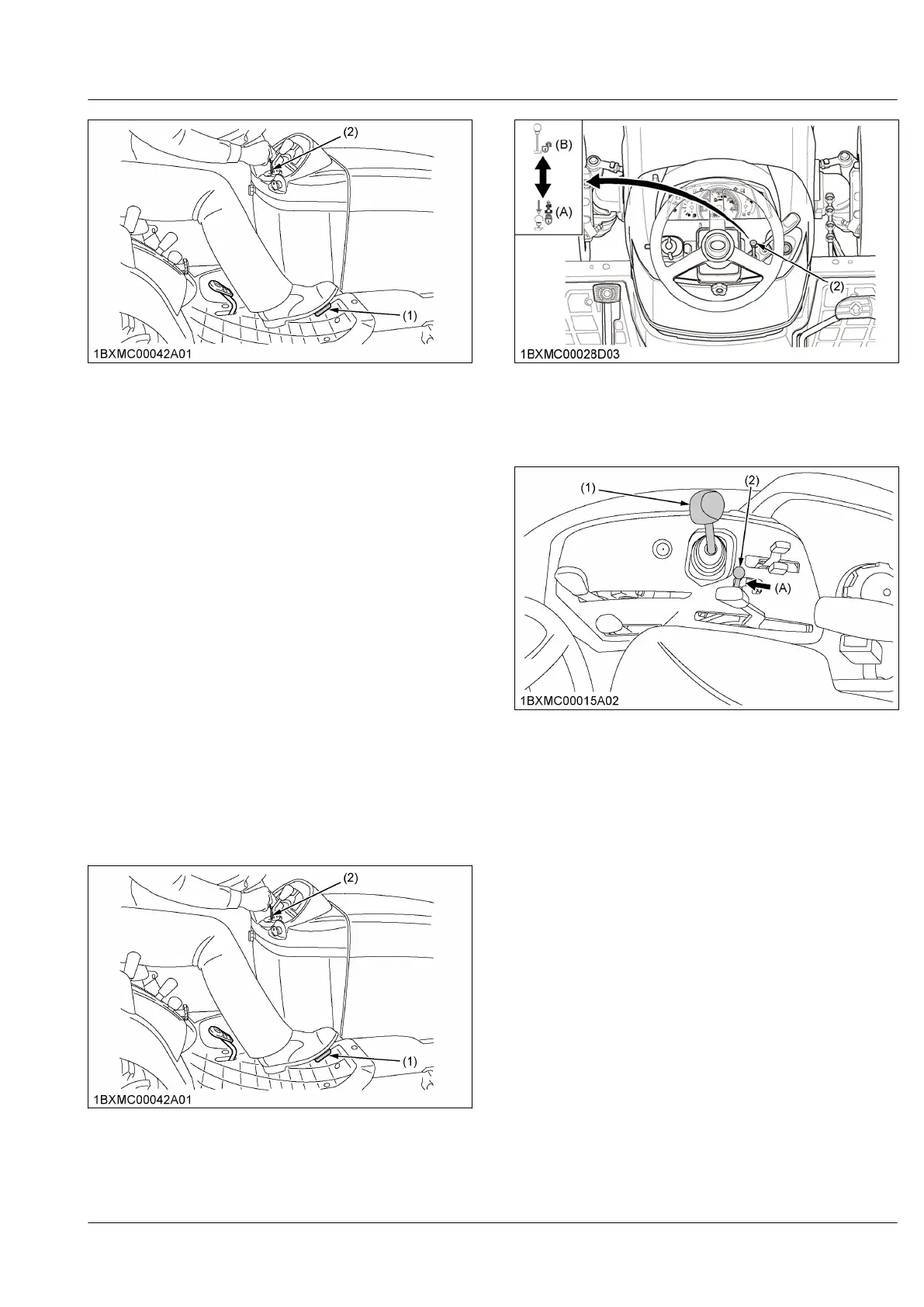

(1) Speed control pedal (2) Stopper bolts
8.1 How to use the speed set device
To engage the speed set device
1. Accelerate speed to desired level using the speed-
control-pedal.
2. Push and hold the speed-set-rod downward to on
position.
3. Release the speed-control-pedal.
4. Release the speed-set-rod.
Desired speed will be maintained.
To disengage the speed set device
1. Depress the brake pedal.
IMPORTANT :
• To
prevent the damage of the speed-set-device,
do not depress the reverse pedal when the
speed-set-device is engaged.
NOTE :
• If you step on the speed-control-pedal on the
forward acceleration side, the speed-set-device
will disengage.
• The speed-set-device will not operate in
reverse.
(1) Speed control pedal
(2)
Speed set rod
(A)
On
(B) Off
9. Loader control lever
(1) Loader control lever
(A) Down and dump
(B)
Dump
(C) UP and dump
(D) Roll back
(E) Down and roll back
(F) Down
(G) Float
ACCESSORY
1. 12 V electric outlet
You may use the 12 V electric outlet to connect an
auxiliary light or other devices.
IMPORTANT :
•
Do not use as a cigarette lighter.
• Do not use when wet.
NOTE :
• Do not connect a light or other device that
draws more than 120 watts to 12 V electric
outlet. The battery may discharge very rapidly
or the 12 V electric outlet may fail.
FOOT CONTROLS AND HAND CONTROLS
INSTRUMENT PANEL AND CONTROLS
