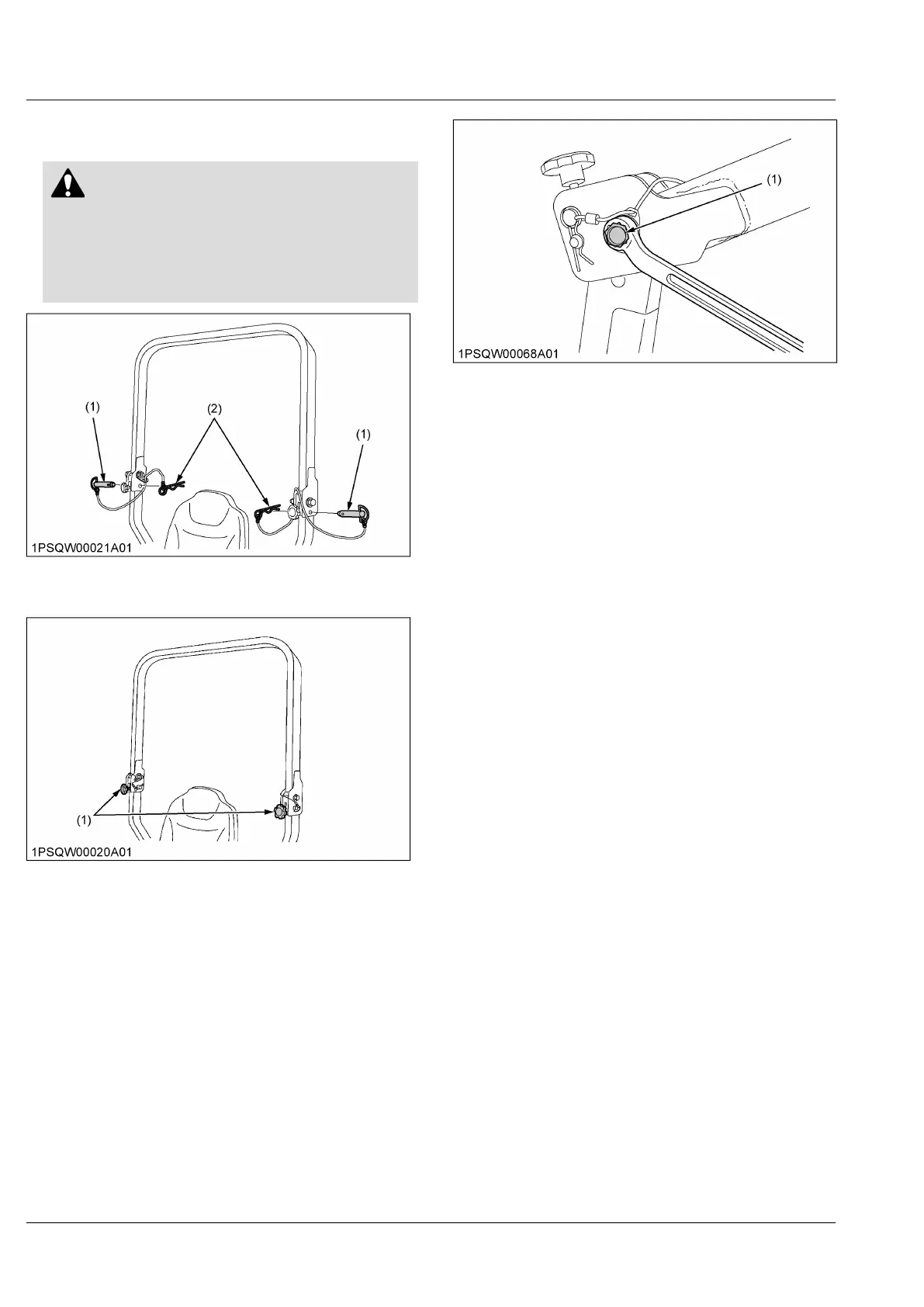

3. Align the set-pin-holes and insert both set pins.
Secure the set pins with the snap pins.
CAUTION
To avoid personal injury:
• Make sure that both set pins are properly
installed as soon as the ROPS is in the
upright position and secured with the snap
pins.
(1) Set pins (2) Snap pins
4. Tighten the holding-knob-bolts.
(1) Holding knob bolts
3. Adjusting the foldable ROPS
1. Adjust free fall of the ROPS upper frame regularly.
2. If you feel less friction in folding the ROPS, tighten
the nut until you feel the right friction in the
movement.
(1) Nut
OPERATING THE TRACTOR OPERATION OF THE FOLDABLE ROPS
