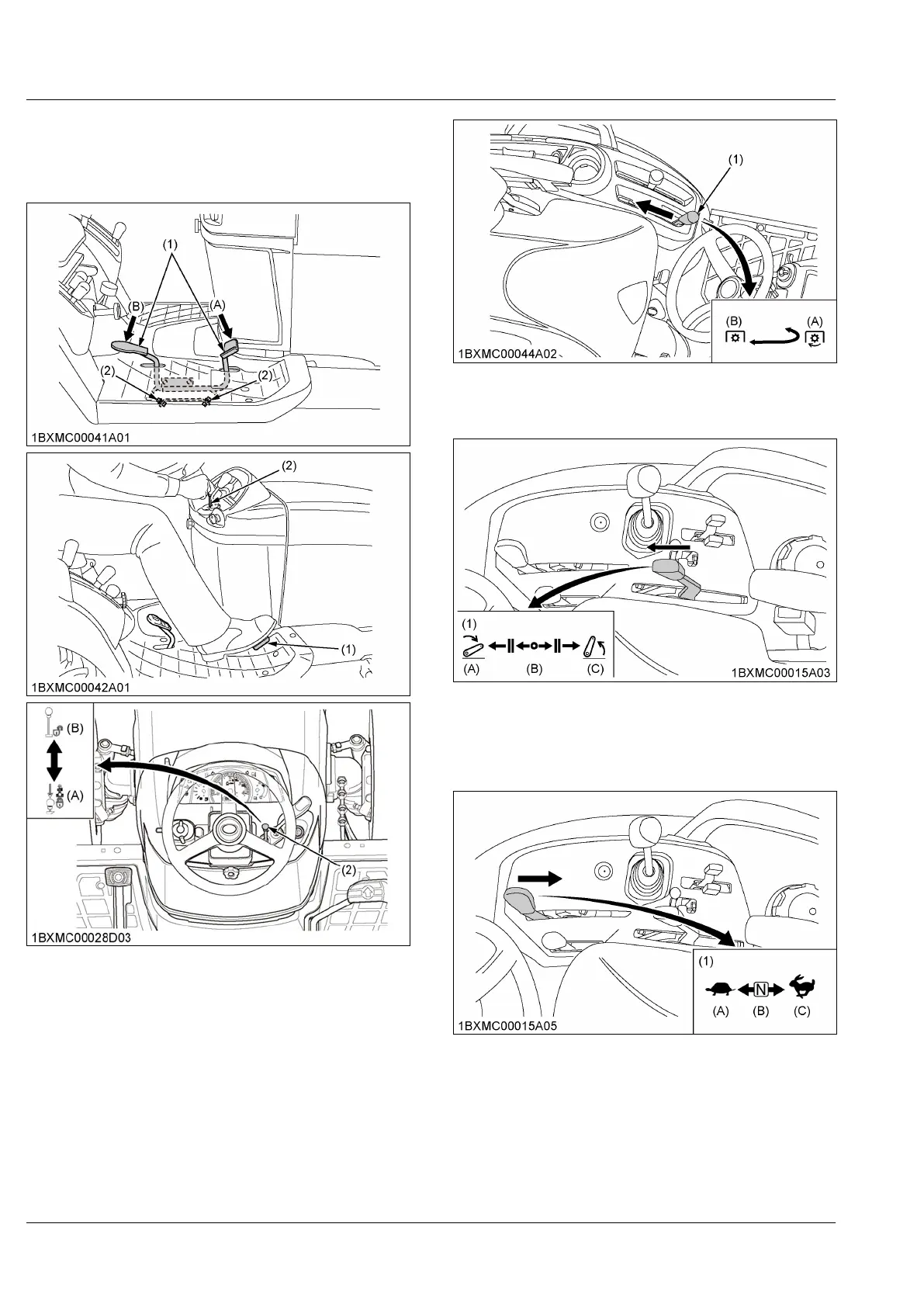

10. Depress the speed control pedal.
See 7. Speed
control pedal on page 50, 8. Speed
set device on page 50, and 8.1 How to use the
speed set device on page 51.
(1) Speed control pedal
(2) Stopper bolts
(3) Speed set rod
(A) Forward
(B) Reverse
(C) On
(D) Off
STOPPING THE TRACTOR
1. Slow the engine down.
2. Depress the brake pedal.
3.
After the tractor has stopped, disengage the PTO
clutch.
(1) PTO clutch lever
(A)
On (engage)
(B)
Off (disengage)
4. Lower the implement to the ground.
(1) Hydraulic control lever
(A) Lowered
(B)
Neutral position
(C) Raised
5. Shift
the range-gear-shift-lever to the neutral
“N”
position.
(1) Range gear shift lever (Hi-
Lo)
(A) Low
(B)
Neutral position
(C) High
OPERA
TING THE TRACTOR STOPPING THE TRACTOR
68
BX23S, LA340, BT603
