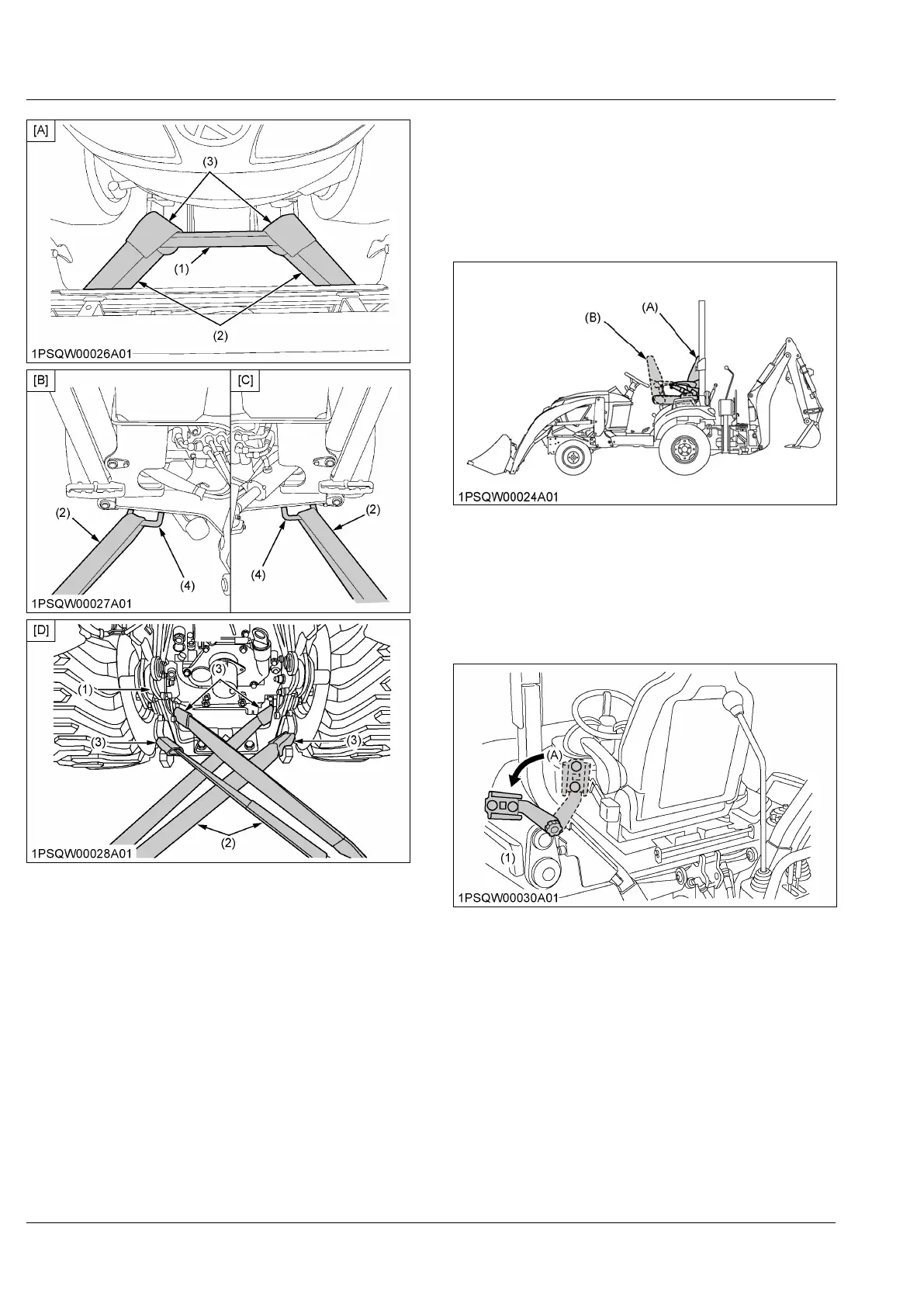

[A] Front side
[B] RH
[C]
LH
[D] Rear side (without the back-
hoe)
(1) Tractor frame
(2) Heavy-duty strap
(3) Cloth
(4) Tie-down stay (under the
backhoe)
5. Directions for use of the power
steering
• The
power steering is activated only while the
engine
is running. While the engine is stopped, the
tractor functions in the same manner as tractors
without power steering.
• Turning the steering wheel all the way to the stop
activates the relief valve. Do not hold the steering
wheel in the stop for a long period of time.
• Avoid turning the steering wheel while the tractor is
stopped, or tires may wear out sooner.
• The power-steering-mechanism makes the steering
easier
. Be careful when driving on a road at high
speeds.
REVERSING THE OPERATOR'S
SEA
T
(A) Tractor driving position (B) Backhoe position
The operator's seat is reversible for the backhoe
operation.
Follow the following procedure to turn the operator's
seat around.
1. Loosen the
knob nut behind the ROPS and move
the bracket left as shown in the illustration.
(1) Bracket (A) Left
2. Pull the seat-lock-lever up as shown in the
illustration to release the lock of the operator's seat.
