Kubota LA340 - Raising the ROPS to Upright Position

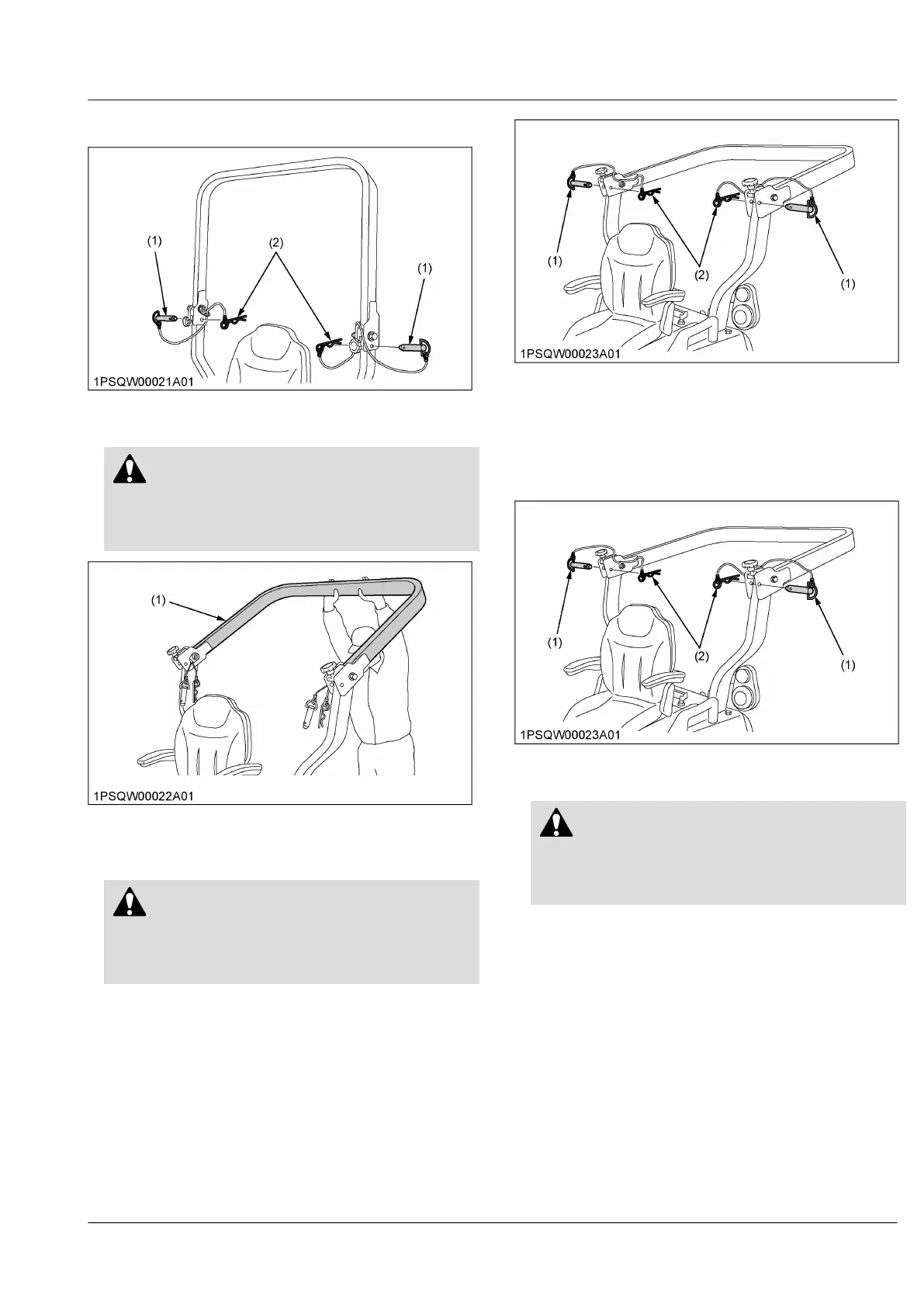

2. Remove both set pins.
(1) Set pins (2) Snap pins
3. Fold the ROPS.
CAUTION
To avoid personal injury:
• Hold the ROPS tightly with both hands and
fold the ROPS slowly and carefully.
(1) ROPS
4. Align set pin holes and insert both set pins. Secure
set pin holes and set pins with the snap pins.
CAUTION
To avoid personal injury:
• Make sure that both set pins are properly
installed and secured with the snap pins.
(1) Set pins (2) Snap pins
2. Raising the ROPS to upright
position
1. Remove both snap pins and set pins.
(1) Set pins (2) Snap pins
2. Raise the ROPS to the upright position.
CAUTION
To avoid personal injury:
• Hold the ROPS tightly with both hands and
raise the ROPS slowly and carefully.
OPERATION OF THE FOLDABLE ROPS OPERATING THE TRACTOR
BX23S, LA340, BT603
63
