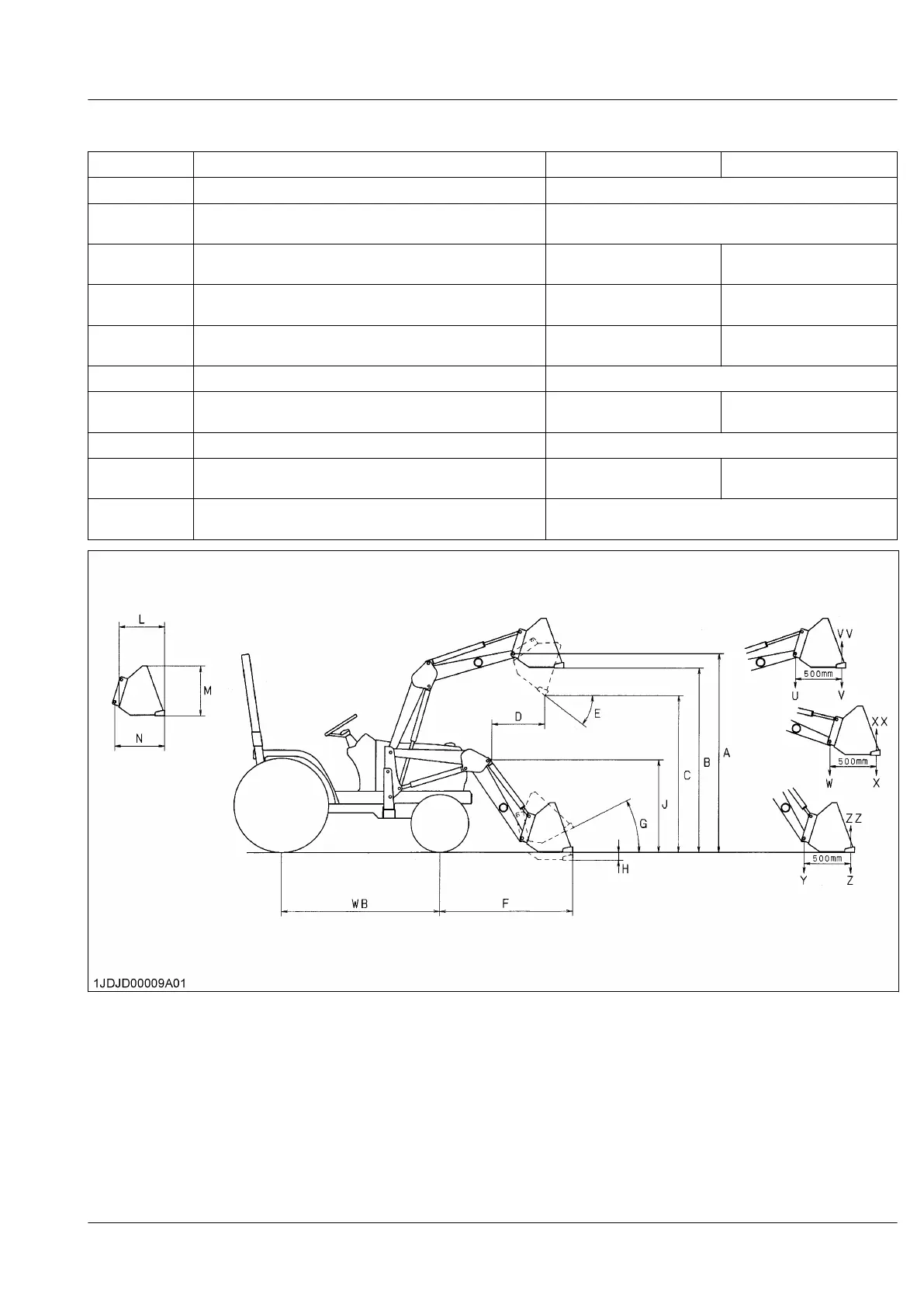

DIMENSIONAL SPECIFICATIONS OF THE LOADER
Loader model LA340 LA340S
Tractor model BX23S
A Max. lift height (to bucket pivot pin)
1804 mm
(71.0 in.)
B Max. lift height under level bucket
1662 mm
(65.4 in.)
1664 mm
(65.5 in.)
C Clearance with bucket dumped
1323 mm
(52.1 in.)
1288 mm
(50.7 in.)
D Reach at max. lift height (dumping reach)
646 mm
(25.4 in.)
677 mm
(26.5 in.)
E Max. dump angle 45 deg.
F Reach with bucket on ground
1392 mm
(54.8 in.)
1438 mm
(56.6 in.)
G Bucket roll-back angle 29 deg.
H Digging depth
125 mm
(4.9 in.)
122 mm
(4.8 in.)
J Overall height in carrying position
990 mm
(39.0 in.)
