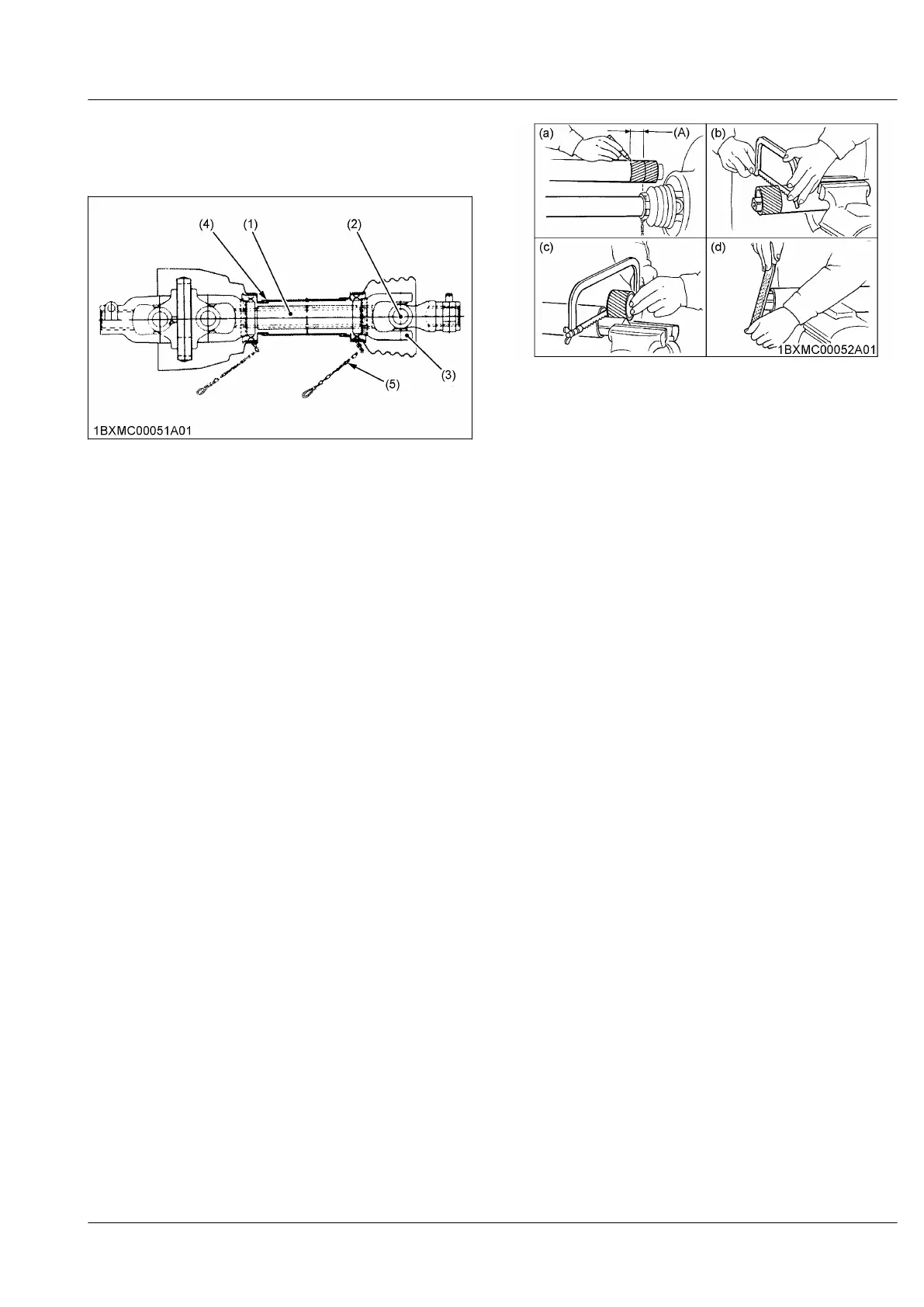

5. PTO drive shaft
The PT
O-drive-shafts are designed for specific
machines and power requirement.
(1) Inner and outer sliding profile
tubes
(2) Journal cross assy
(3)
Fitting yoke
(4) Safety guard (in, out)
(5) Chain
• When
using a PTO-drive-shaft, read the
operator's
manual of the implement before operating the
implement.
• If it is necessary for using the PTO-drive-shaft,
adjust the length of it.
See 5.1 Adjusting the length of PTO drive shaft on
page 79.
• Make sure that the PTO-drive-shaft is securely
connected at both ends before operating it.
5.1 Adjusting the length of PTO drive shaft
To adjust the length of the PTO-drive-shaft, refer to the
following instructions.
1. To
adjust the inner-and-outer-guard-tubes, hold the
half shafts next to each other in the shortest
working position, and mark the half shafts in the
shortest working position of the inner-and-outer-
guard-tubes.
2. Shorten the inner-and-outer-guard-tubes to the
marked position equally.
3. Shorten the inner-and-outer-sliding-profile-tubes by
the same length as the inner-and-outer-guard-
tubes.
4. Round all sharp edges off, remove burrs, and
grease sliding profiles.
(a) Reference image for step 1.
(b)
Reference image for step 2.
(c)
Reference image for step 3.
(d) Reference image for step 4.
(A) 40 mm (1.57 in.)
PTO OPERATION PTO (POWER TAKE-OFF)
BX23S, LA340, BT603
79
