a flat surface without the engine running before
operating the tractor for the first time.

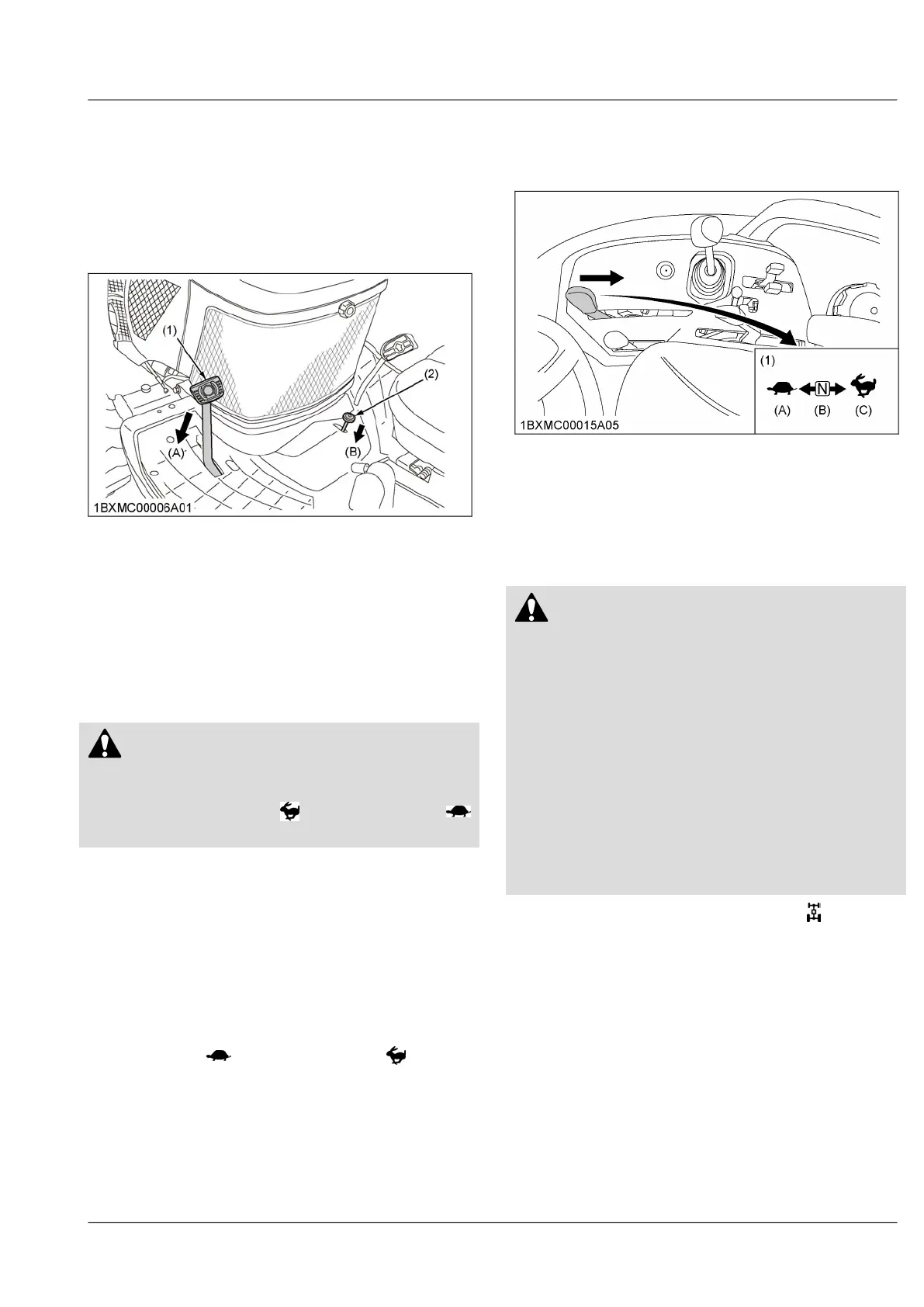

To set the parking brake
1. Depress the brake pedal.
2. Latch the brake pedal on pushing and holding the
parking-brake-lock-pedal.
3. Release the brake pedal.
(1) Brake pedal
(2) Parking brake lock pedal
(A) Depress
(B) Push down the parking
brake lock pedal while de-
pressing the brake pedal
To release the parking brake
Depress the brake pedal again.
4. Range gear shift lever (Hi-Lo)
You can shift the range-gear-shift-lever only when
tractor is completely stopped.
WARNING
To avoid serious injury or death:
• Make sure that the range-gear-shift-lever is fully
engaged into the high
position or the low
position before climbing or descending a slope.
IMPORTANT :
Do not force the range-gear-shift-lever.
• If it is difficult to shift the range-gear-shift-lever
into the neutral “N” position, you should
attempt the following procedure.
1. Depress the brake pedal firmly for several
seconds.
2. Without reducing the force to depress the
brake pedal, shift the range-gear-shift-lever.
• If it is difficult to shift the range-gear-shift-lever
into the low
position or the high position
from the neutral “N” position, you should
attempt the following procedure.
1. Slightly depress the speed-control-pedal to
rotate the gears inside of transmission.
2. Release the speed-control-pedal to the
neutral “N” position.
3. Shift the range-gear-shift-lever.
• To avoid damage of transmission, stop the
tractor before shifting the range-gear-shift-lever
between ranges.
(1) Range gear shift lever (Hi-
Lo)
(A) Low
(B) Neutral position
(C) High
5. Front wheel drive lever
Use the front-wheel-drive-lever to engage the front
wheels with the tractor stopped.
WARNING
To avoid serious injury or death:
• Do not engage the front-wheel-drive when
traveling at road speed.
• When driving on icy, wet, or loose surfaces,
make sure that the tractor is correctly ballasted
to avoid skidding and loss of steering control.
Operate the tractor at reduced speed and
engage the front-wheel-drive.
• An accident may occur if the tractor is suddenly
braked, such as by heavy towed loads shifting
forward or loss of control.
• The braking characteristics are different
between 2-wheel drive and 4-wheel drive. Know
the difference and use them carefully.
Shift the front-wheel-drive-lever to the on
position to
engage the front-wheel-drive.
FOOT CONTROLS AND HAND CONTROLS
INSTRUMENT PANEL AND CONTROLS
