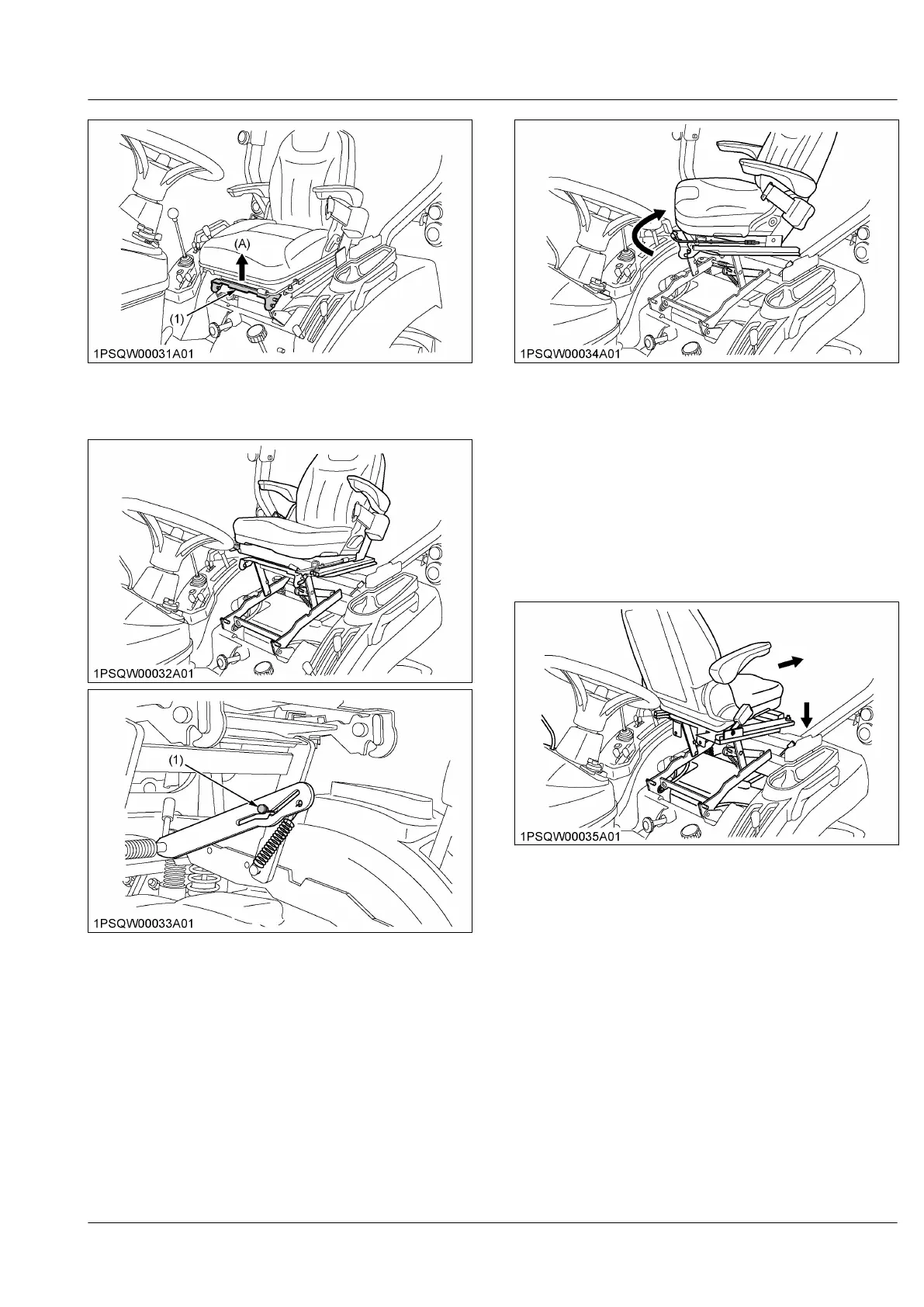

(1) Seat lock lever (2) Release
3. Raise the operator's seat until the seat pin comes in
to the detent notch (see illustration).
(1) Seat pin
4. Turn the operator's seat around rearward.
IMPORTANT :
• Grip the
arms of the operator's seat and
swivel the operator's seat.
NOTE :
• Make sure to turn the operator's seat for the
indicated direction in the preceding figure.
5. Push the operator's seat backward, then the seat
pin will come out from detent notch.
Push the operator's seat down until the seat-lock-
lever is locked at the backhoe position.
NOTE :
• If
the
seat pin does not come out from the
detent notch, apply grease in the notch.
6. After reversing the operator's seat, be sure to check
to see that the operator's seat is properly locked.
IMPORTANT :
• Turn the operator's seat at the detent
position to avoid damage of seat-locking-
mechanism and hitting to the range-gear-
shift-lever.
• See 1. Operator's seat on page 48 when
using the operator's seat in the tractor-
driving-position.
7. For the tractor-driving-position, pull the seat-lock-
lever up, and follow the reverse of the preceding
procedure .
