Kubota LA340 - Instrument Panel and Controls; Instrument Panel, Switches, and Hand Controls

To Next Page

To Previous Page

LA340

LA340S

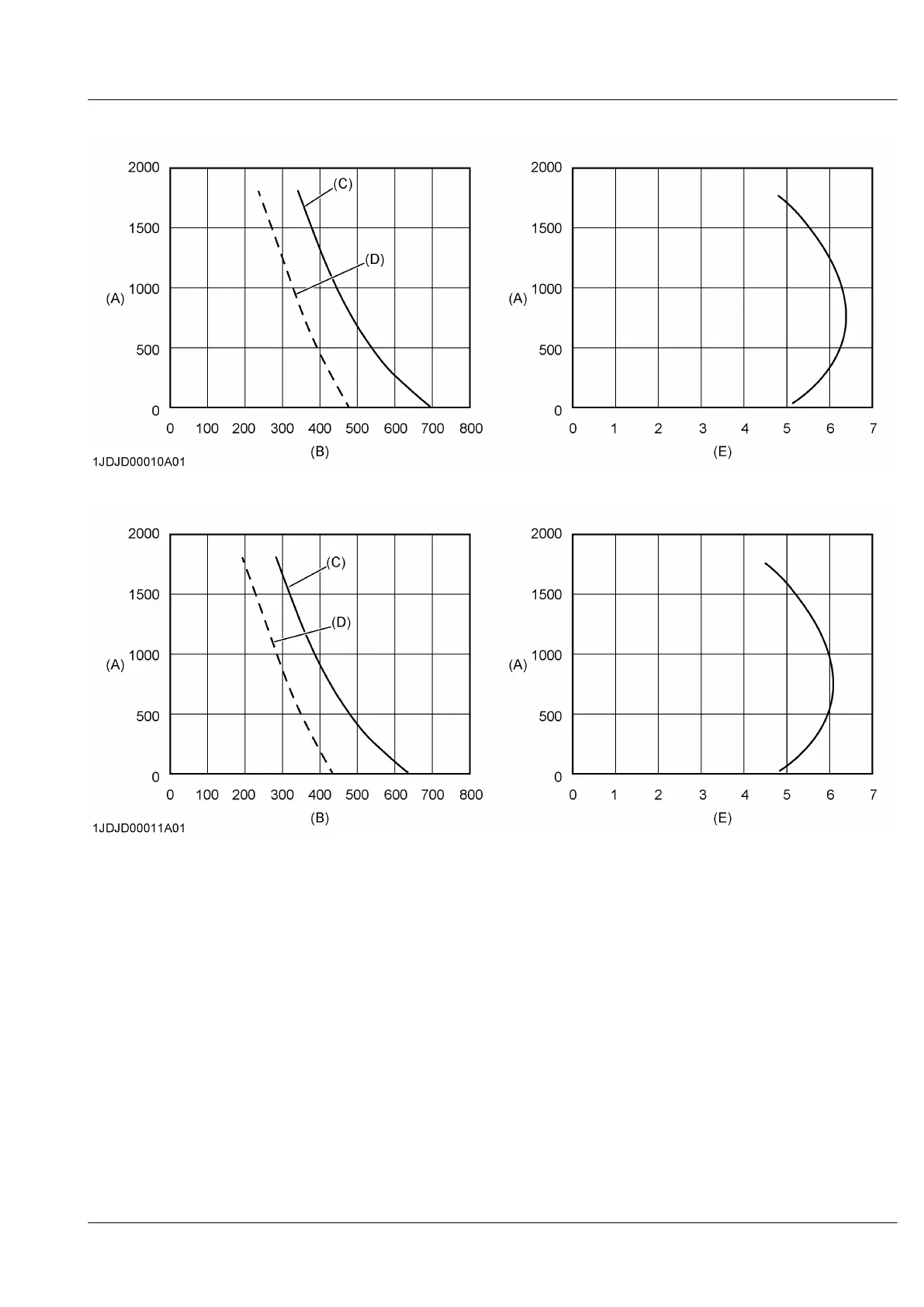

(A) Height (mm)

(B) Lift capacity (kg)

(C)

At pivot pin

(D) 500 mm forward of pivot pin

(E) Rollback force (kn)

SPECIFICATIONS OF THE LOADER

BX23S, LA340, BT603
