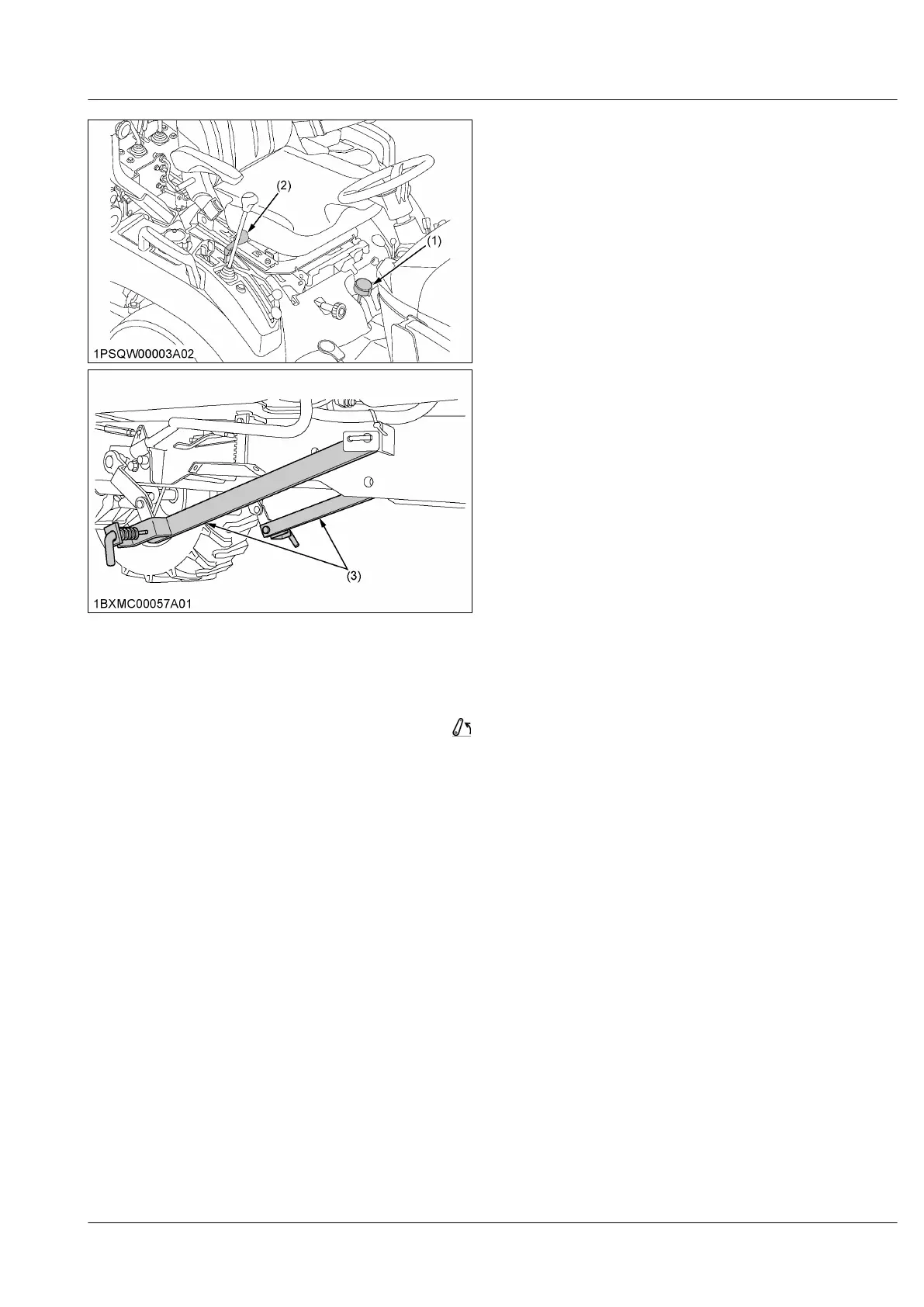

(1) Cutting height control dial
(2) Hydraulic control lever
(3)
Mower rear link
IMPORTANT :
When operating
the tractor without Mid-mount
mower, follow the following procedure.
1. Move the hydraulic lever rearward (the
position) to raise the mower rear links to the
highest position.
2. Set the
cutting-height-control-dial to the top
position.
If you do not follow this procedure, damage of the
mower rear link can result.
MOWER LIFT LINKAGE SYSTEM HYDRAULIC UNIT
