Control box
20
Quantron S
Putting into service
Info

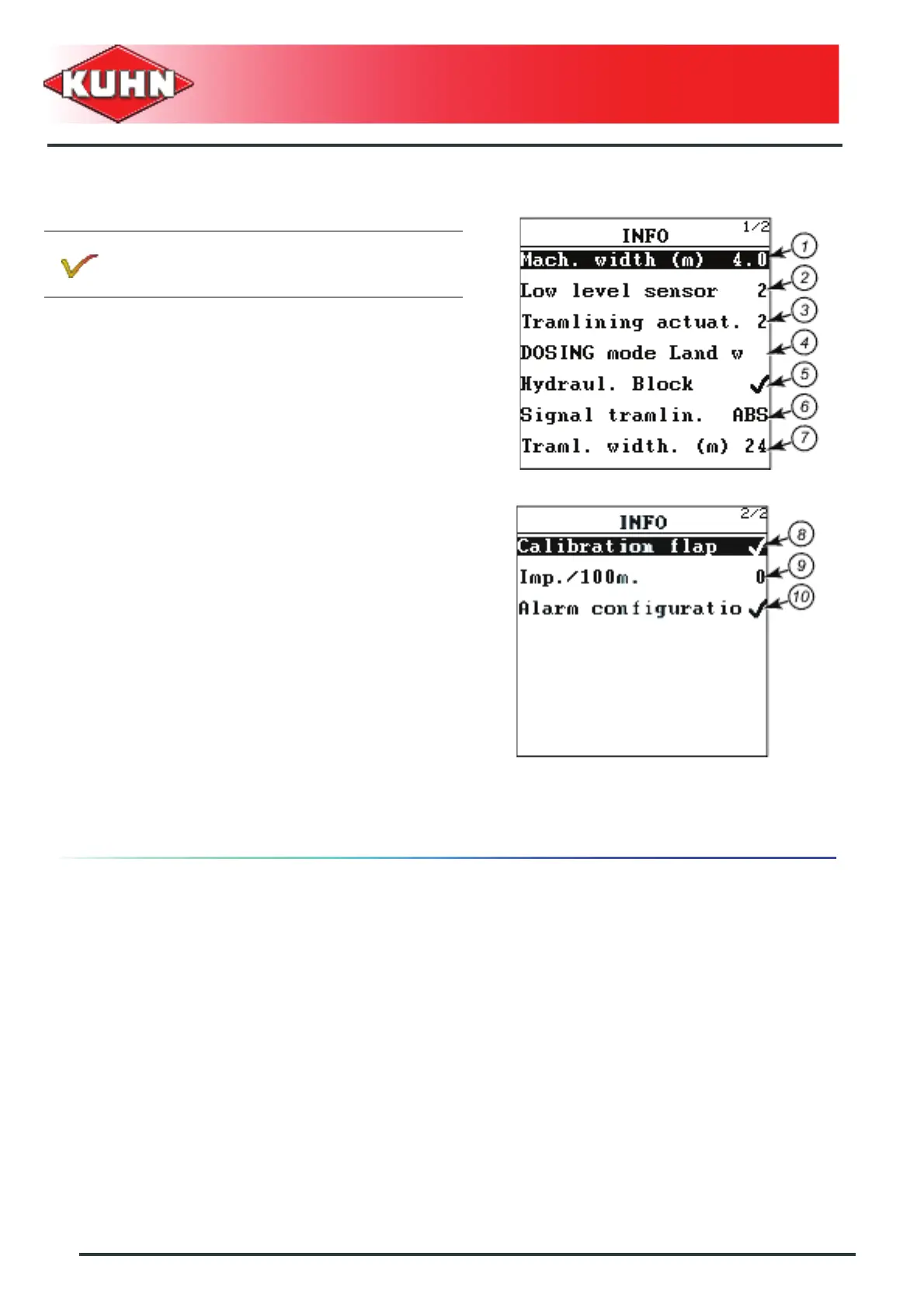

The menu shows how the machine is equipped.
- 1: Width of seed drill (m)
- 2: Number of low level sensors mounted (1 or 2)
- 3: 2 Cylinder for tramlining: The machine is fitted with
a second cylinder for tramlining.
• Symmetrical and asymmetrical rythms are possible.
- 4: Metering unit drive:
• Electrical drive
• Hydraulic drive
• Mecanical drive through a skeleton wheel
A check mark at the end of the line indicates that this
option is mounted.
- 5: Hydraulic valve bank: The control box is connected
to the hydraulic valve bank.
- 6: Signal for tramlining:
• ABS: The sensor on the chassis or on the coulter
bar counts the impulses for the tramlining counting
• SPR: The side marker sensor controls the tramlining
counting
- 7: The tramlining (m): Treatment width
- 8: Metering unit hatch sensor
- 9: Programmed impulses per 100 m length
(Calibration of forward speed)
- 10: Alarm configuration: A check mark on each line
end means that all alarms are ON.
This menu is only used for information purposes.
