Kyocera ECOSYS P2040dn

2RV/2RW/2RX/2RY/3RA
4-36

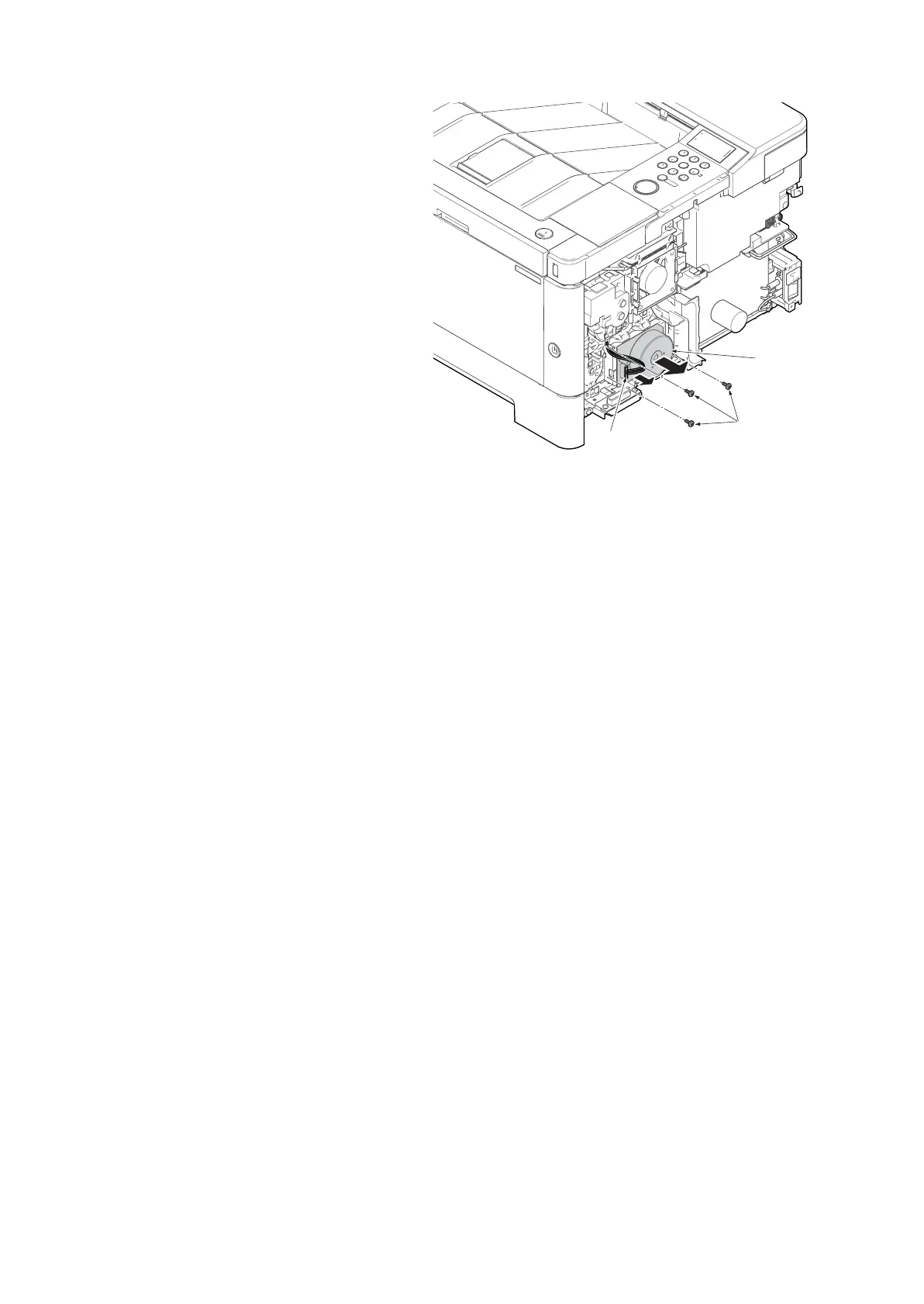

19. Disconnect the connector (a).
20. Remove three screws(M3×8S tight)(b),
detach the main motor(c).
21. Check or replace the main motor(c),
and then reattach the parts which are
detached in the original position.
Figure 4-61
a
c
b
