Kyocera ECOSYS P2040dn

2RV/2RW/2RX/2RY/3RA
4-81
(5-4)Detaching and reattaching the Wi-Fi PWB.
Procedures
24. Detach the right rear cover (a) while
twisting it.
25. Remove the screw(M3×10TP)(b).
26. Release the protrusion (e) by using a
flat-blade screwdriver (d).
27. Detach the Wi-Fi cover(c).

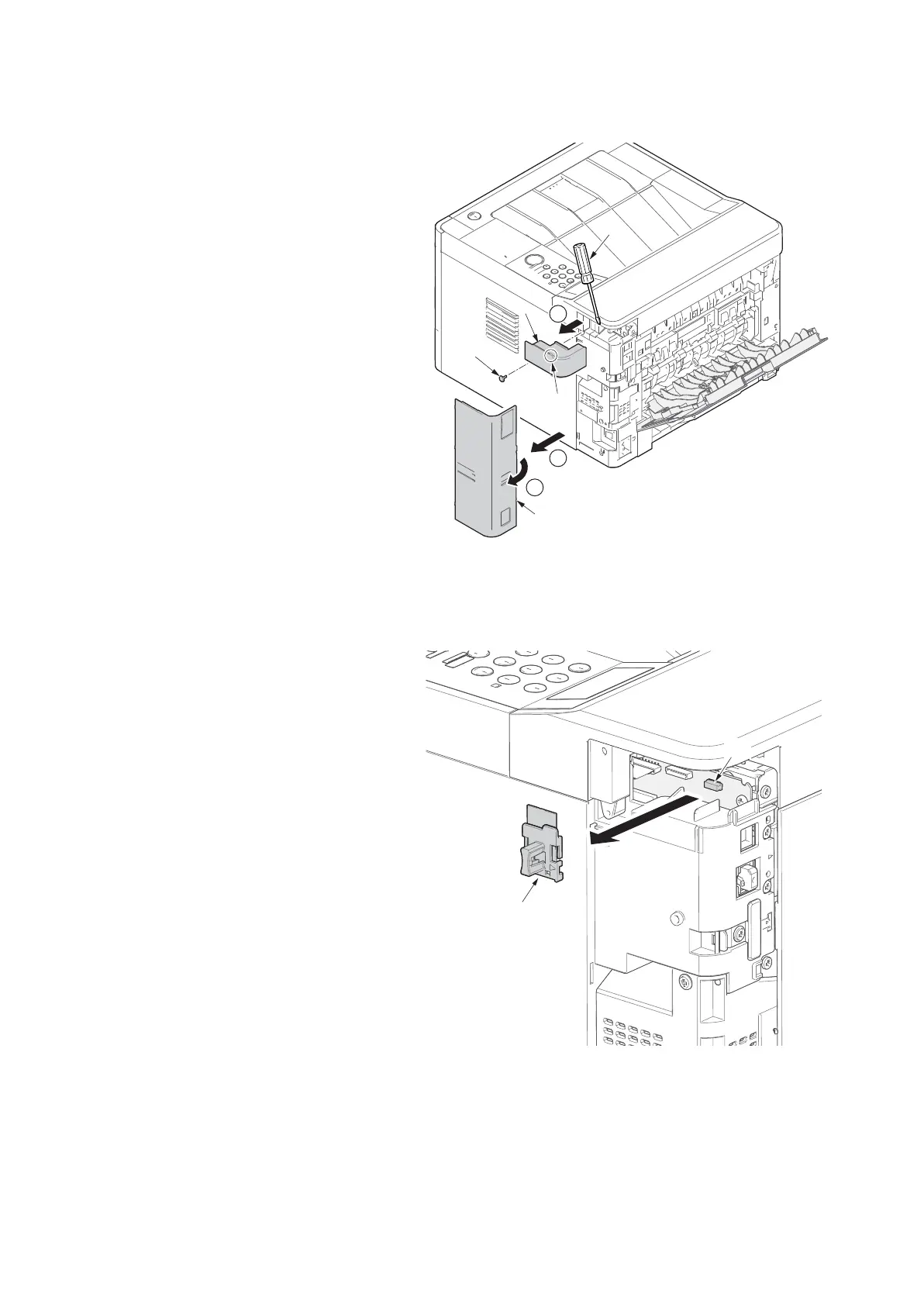

Figure 4-146
28. Detach the Wi-Fi PWB (a).
29. Check or replace the Wi-Fi PWB (a),
and then reattach the parts which are
detached in the original position.
Figure 4-147
a
b
c
1
2
3
d
e
a
b
