Kyocera ECOSYS P2040dn

2RV/2RW/2RX/2RY/3RA
4-88
(1-2)Detaching and reattaching PF conveying motor.
Procedures
1. Remove two screws(M3×8P tight)(a).
2. Release two hooks (b) of the upper
cover (c) and detach it.

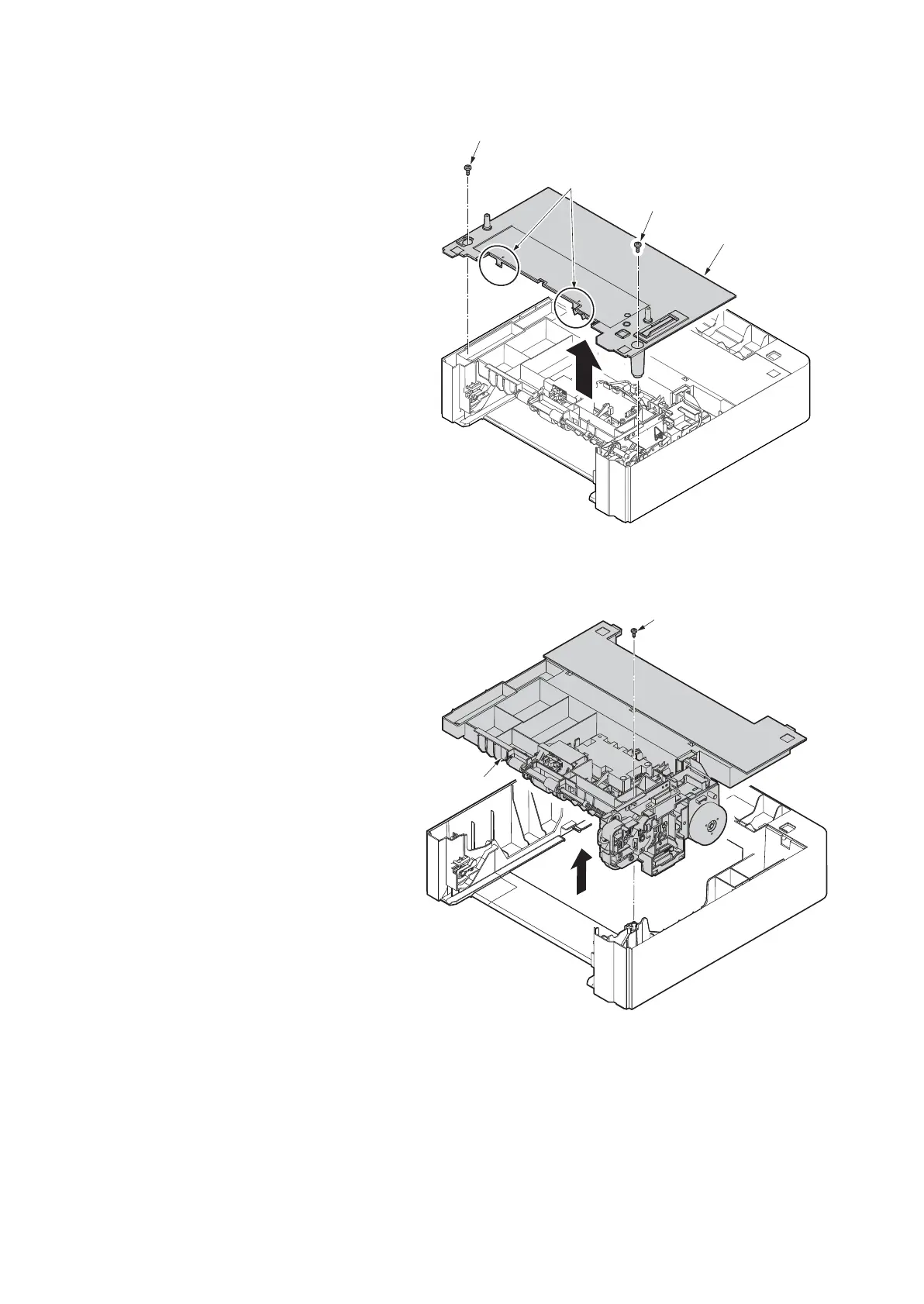

Figure 4-160
3. Remove the screw(M3x8P tight)(a) and
detach the frame assembly (b).
Figure 4-161
c
a
a
b
a
b
