Kyocera ECOSYS P2040dn Service Manual

2RV/2RW/2RX/2RY/3RA
3-20
3-4 Mechanical construction
(1) Paper feed section
The paper feed section consists of the cassette feed section which feeds from the paper cassette and the
MP tray feed section which feeds from the MP tray.
(1-1) Cassette paper feed section
The cassette can 300 sheets paper (64g/m2) or 250 sheets paper (80g/m2). As for the paper feed from the
cassette, paper is pulled out by the pickup roller rotation and conveyed to the paper conveying section by
the feed roller rotation. Multi-feeding is also prevented by the effect of the retard roller.
The fed paper is conveyed by the middle roller to the position where it turns the registration sensor on.
Components parts
1. Pickup roller
2. Paper feed roller
3. Retard roller
4. Cassette bottom plate
5. Friction pad
6. Paper width guides
7. Paper length guide
8. Middle roller
9. Middle pulley
10. Actuator (Paper sensor )
11. Cassette base
12. Extension tray button
13. Extension tray

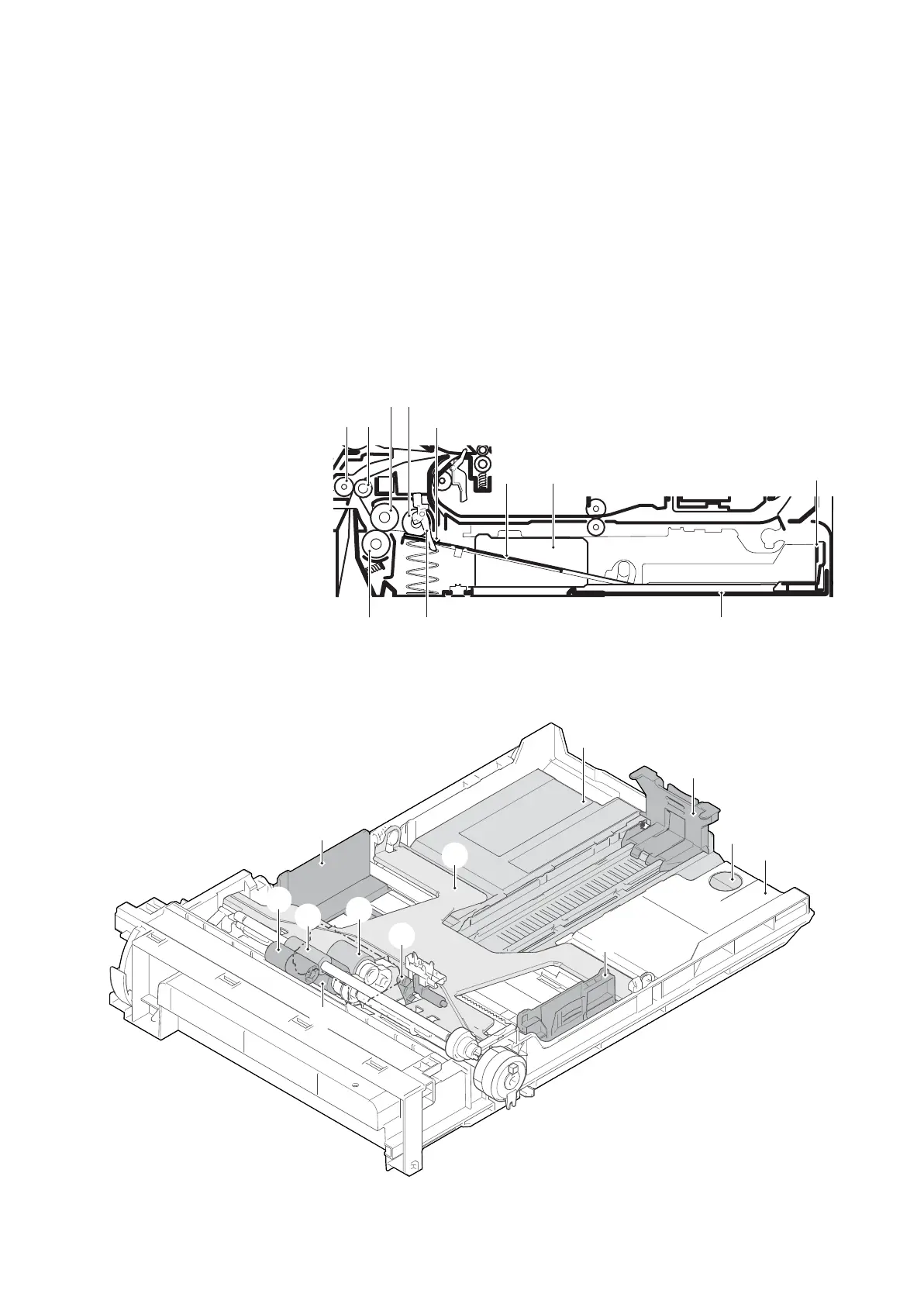

Figure 3-16
Figure 3-17
9
8
2 1
5
4
7
113 10
6
6
6
4
8
9
1
10
2
11
7
12
13

Kyocera ECOSYS P2040dn Specifications

General

Color	No
Duplex printing	Yes
Print technology	Laser
Maximum resolution	1200 x 1200 DPI
Duplex printing mode	Auto
Time to first page (black, normal)	6.4 s
Print speed (black, normal quality, A4/US Letter)	40 ppm
Duplex print speed (black, normal quality, A4/US Letter)	20 ppm
Printing colors	Black
Maximum duty cycle	50000 pages per month
Replacement cartridges	TK-1160 (7.200 pagina's)
Number of print cartridges	1
Page description languages	PCL 5e, PCL 6, PCL XL, XPS
AC input voltage	220 - 240 V
AC input frequency	50 - 60 Hz
Power consumption (off)	0.1 W
Power consumption (ready)	8 W
Power consumption (printing)	620 W
Power consumption (PowerSave)	0.8 W
Energy Star Typical Electricity Consumption (TEC)	1.6 kWh/week
Internal memory	256 MB
Processor frequency	800 MHz
Compatible memory cards	SD, SDHC
Sound pressure level (printing)	48.8 dB
Display	LCD
Certification	TÜV/GS, CE
Product color	Black, White
Market positioning	Home & office
Display number of lines	2 lines
Paper input type	Cassette, Paper tray
Total input capacity	250 sheets
Maximum input capacity	850 sheets
Maximum number of input trays	3
Multi-Purpose tray input capacity	100 sheets
Custom media width	70 - 216 mm
Maximum print size	216 x 356 mm
Custom media length	148 - 356 mm
Duplex media weight	60 - 163 g/m²
Non-ISO print media sizes	Legal (media size), Letter (media size)
ISO A-series sizes (A0...A9)	A4, A5, A6
ISO B-series sizes (B0...B9)	B5, B6
Multi-purpose tray media types	Plain paper
Maximum ISO A-series paper size	A4
Multi-Purpose Tray media weight	60 - 220 g/m²
Wi-Fi standards	Not supported
Cabling technology	10/100/1000Base-T(X)
Ethernet LAN data rates	10, 100, 1000 Mbit/s
Mobile printing technologies	Apple AirPrint, Google Cloud Print, Kyocera Mobile Print, Mopria Print Service
Standard interfaces	Ethernet, USB 2.0
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
Sustainability certificates	Blue Angel, ENERGY STAR
Package depth	516 mm
Package width	500 mm
Package height	400 mm
Package weight	18000 g
Cables included	AC
Included cartridge capacity (black)	3600 pages
Harmonized System (HS) code	84433210

Weight and Dimensions

Depth	393 mm
Width	375 mm
Height	272 mm
Weight	14000 g
