Kyocera ECOSYS P2040dn

2RV/2RW/2RX/2RY/3RA
4-62
(4-2)Fan motor attachment direction
Detaching and attaching are available by detaching the outer covers.
*: When reattaching the fan motor (a), be aware of the attachment direction (intake/exhaust).

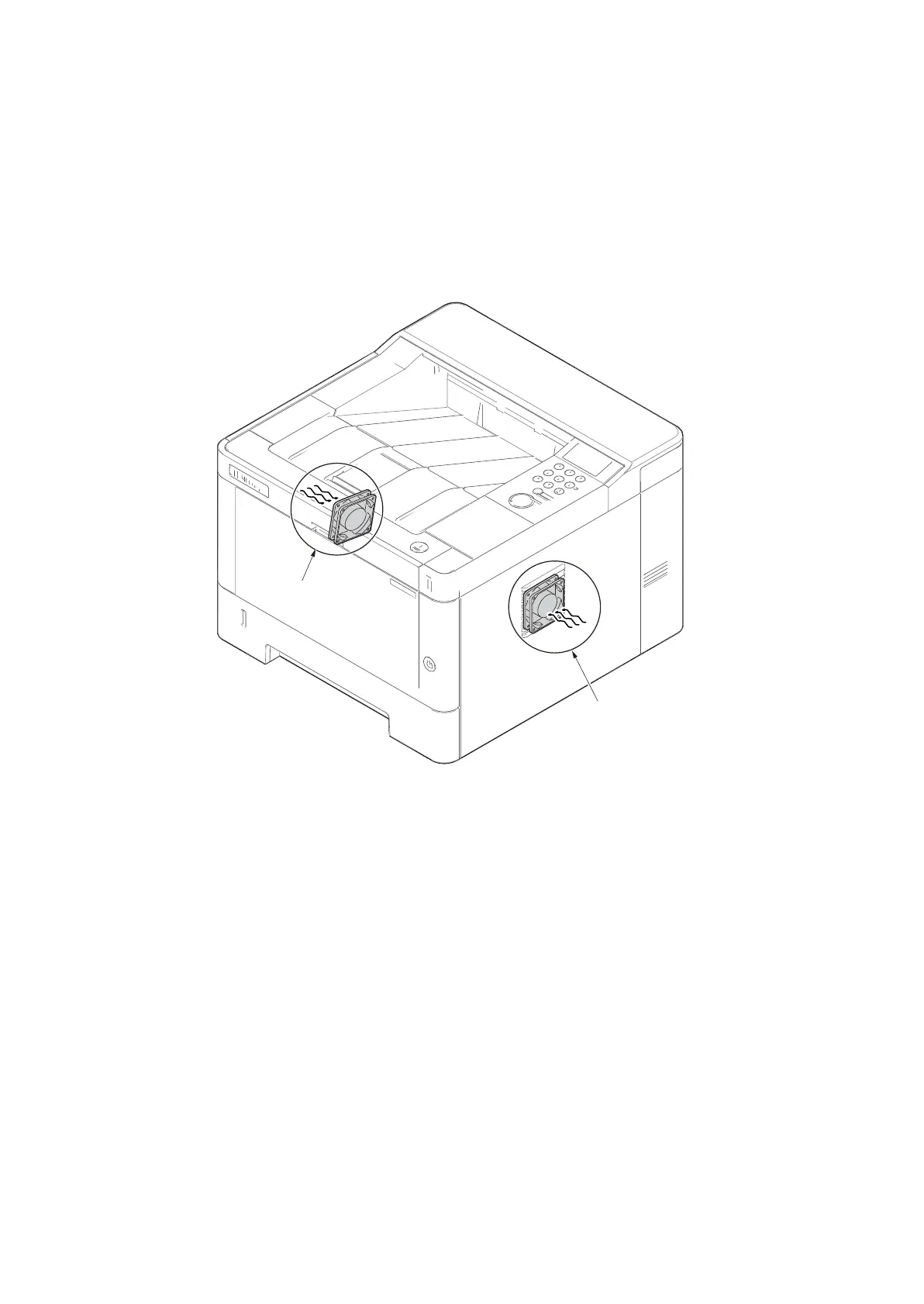

Figure 4-112
1
2
1. Right side fan motor : Intake (Rating label inside)
2. Left side fan motor : Intake (Rating label inside)
