2RV/2RW/2RX/2RY/3RA
4-50

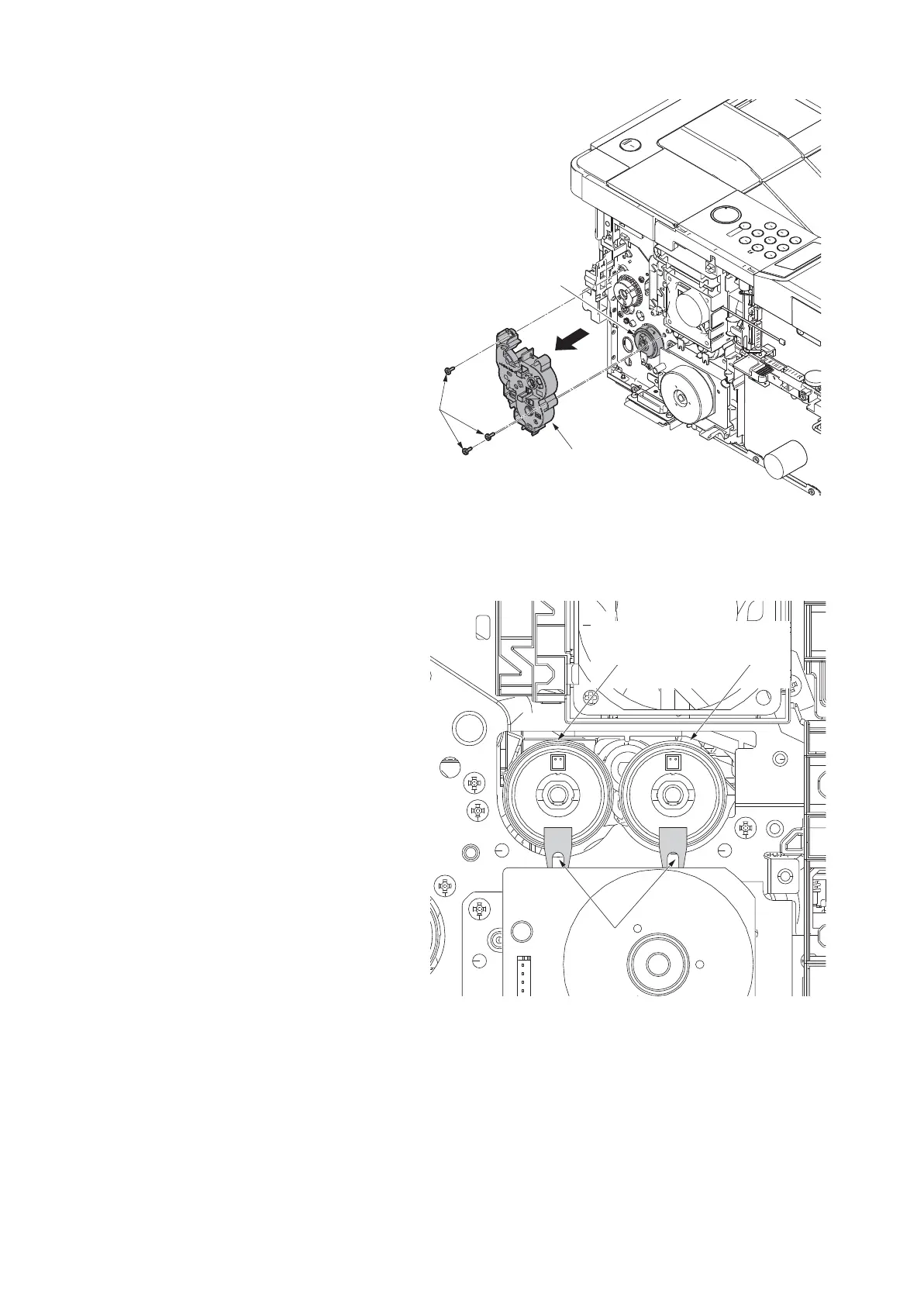

21. Remove three screws(M3x8S tight)(a)
and remove the cover (b).
22. Detach the paper feed clutch (c).
23. Check or replace the clutch, and reat-
tach the parts which are detached in the
original position.
Figure 4-88
*: Attach the developer clutch (a) and the
registration clutch (b) with the notches (c)
facing down, and attach the cover.
Figure 4-89
a
b
c
c
b a
To Next Page
