4. Remove one screw (a)(M3x8).
5. Remove the IF lid(b) in the direction of the arrow.

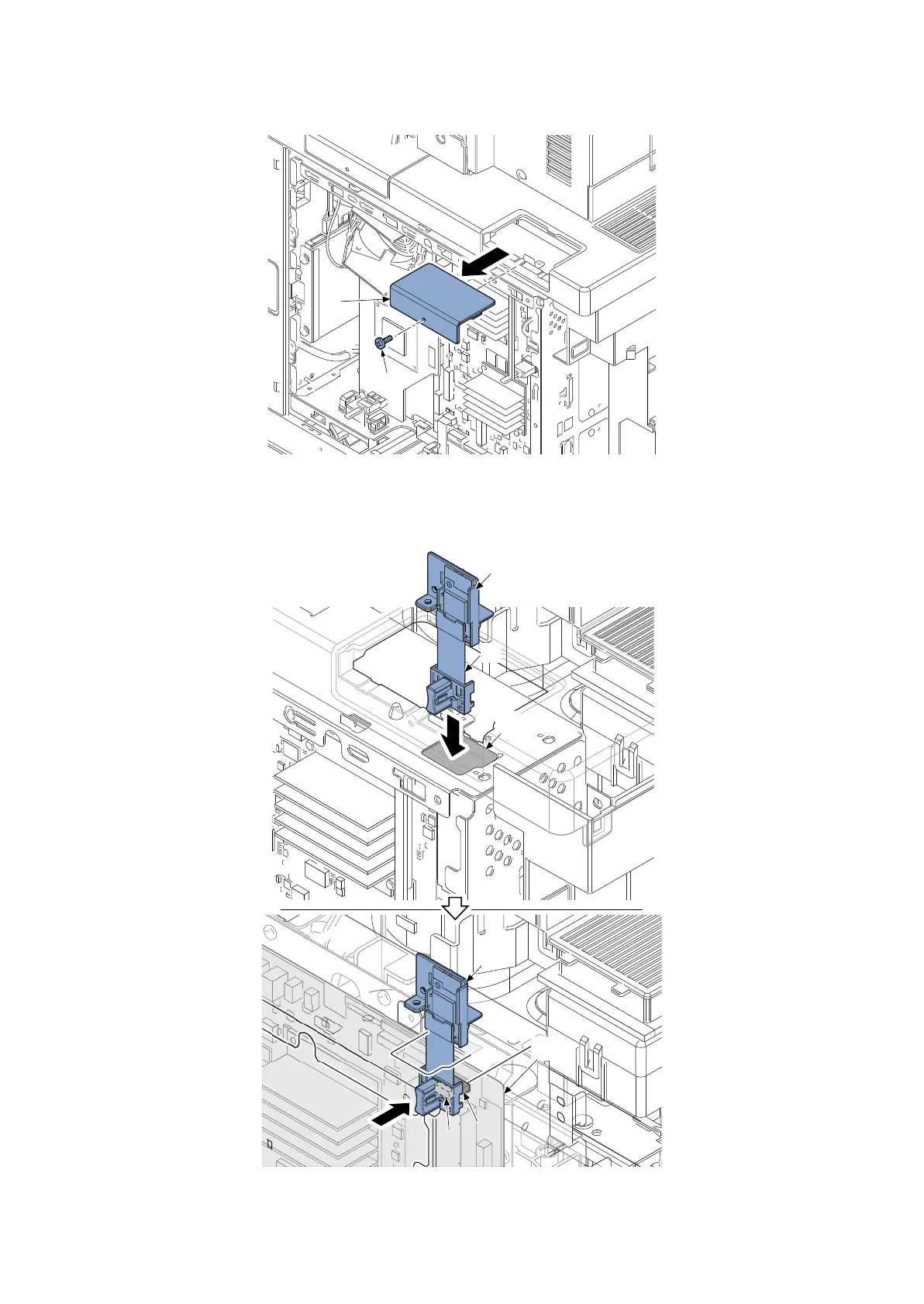

Figure 2-96
6. Insert the FPC (b) of the PWB unit (a) into the aperture (c) of the controller box.
7. Connect the connector (d) to the connector (f) of the main PWB (e).
Figure 2-97
