Kyocera TASKalfa 7002i - (3) Wireless LAN interface (IB-35) (120 V model standard)

2NJ/2RK
2-52
(3) Wireless LAN interface (IB-35) (120V model standard)
Bundled parts of Wireless LAN interface (IB-35)(1503RR0UN0)
PWB unit 1 pc
Screw (M3x6) 1 pc
Procedures
1. Turn off the main unit and disconnect the power cord and all
interface cables.
2. Slide the controller cover (a) in the direction of the arrow and detach it.

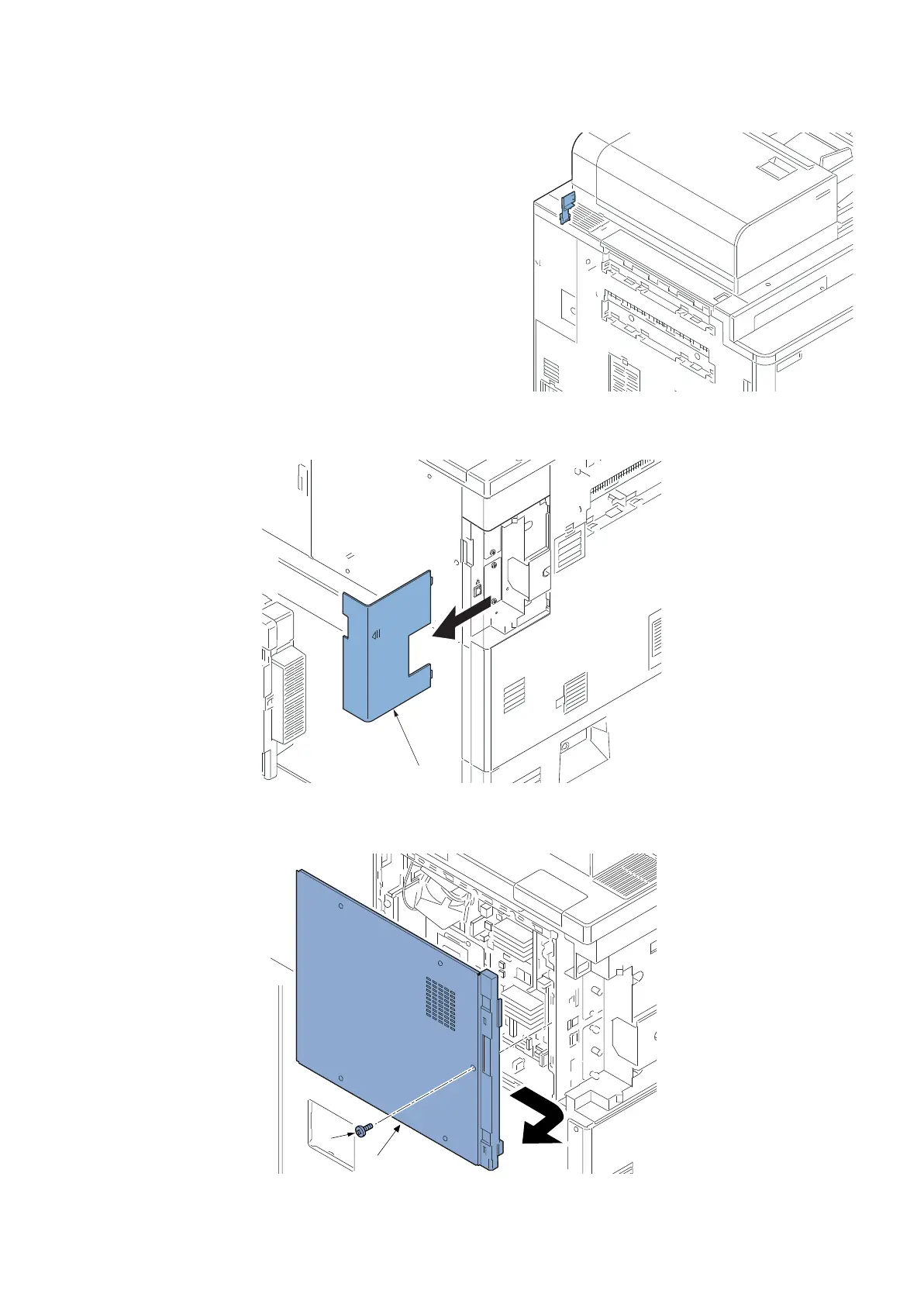

Figure 2-94
3. Remove one screw (a)(M3x8) and then remove the left rear cover (b) by sliding in the direction of the arrow.
Figure 2-95
OPT1
a
b
a
