Kyocera TASKalfa 7002i - (4) Toner collection box attaching

2NJ/2RK
2-10
(4) Toner collection box attaching
1. Detach the tape(b) from the toner collection
box(a).
2. Detach the cable cover(c).

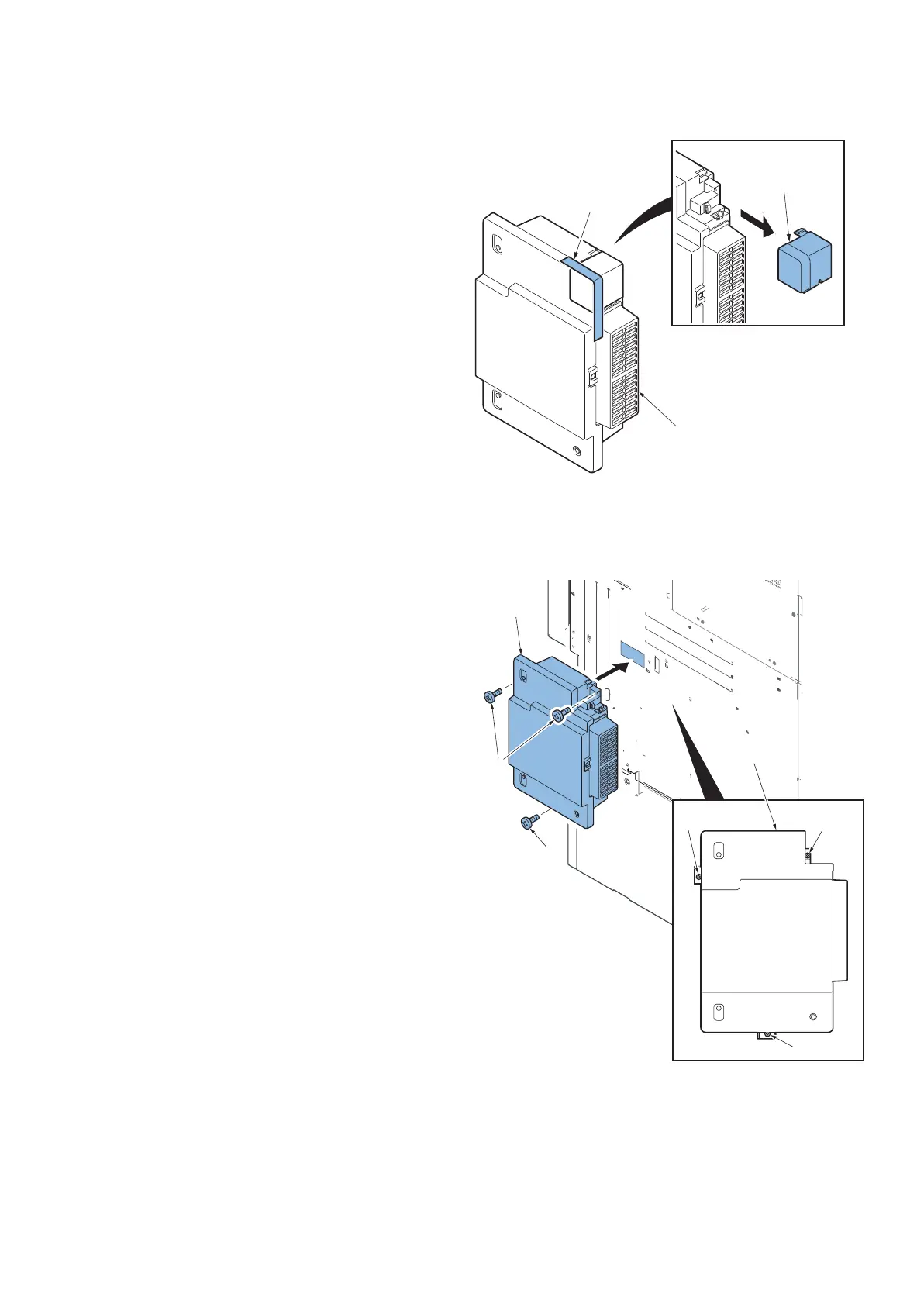

Figure 2-12
3. Install the toner collection box(a) with three bundled
screws(b)(M3×8 S-tite).
Figure 2-13
F
a
b
b
b
b
b
b
a
a
