Kyocera TASKalfa 7002i - (15) Setting up the Toner Container

2NJ/2RK
2-39
(15)Setting up the Toner Container
Set up the toner container.

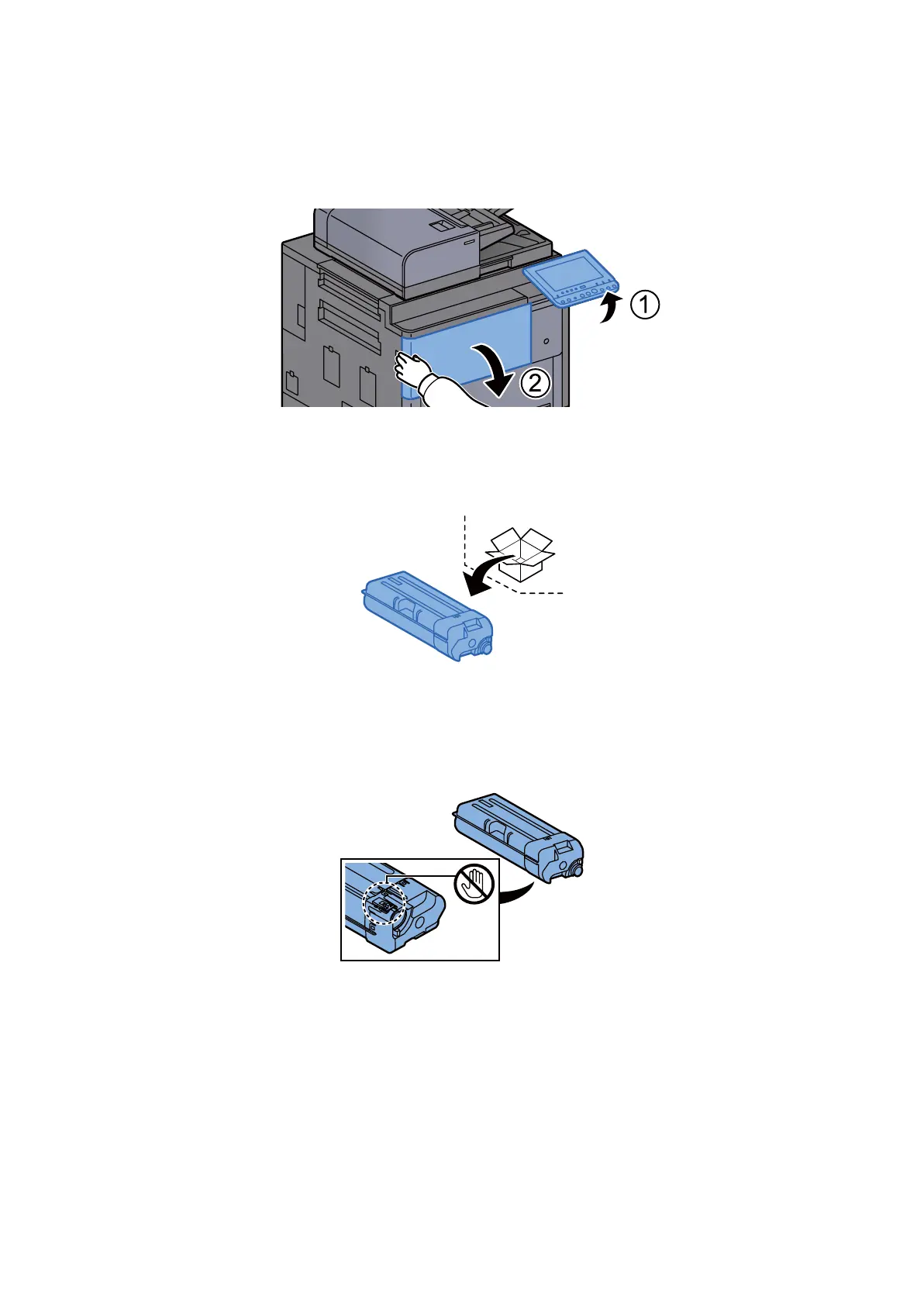

1. Lift the angle of operation panel up to the most top and then open the front cover.
Figure 2-72
2. Take out the toner container.
Figure 2-73
IMPORTANT
Do not touch the toner outlet by hand.
Figure 2-74
