Kyocera TASKalfa 7002i - (1-6) Detaching and reattaching the right cover and DU cover assembly

2WA/2NJ/2RK
4-80
(1-6) Detaching and reattaching the right cover and DU cover assembly
Procedures

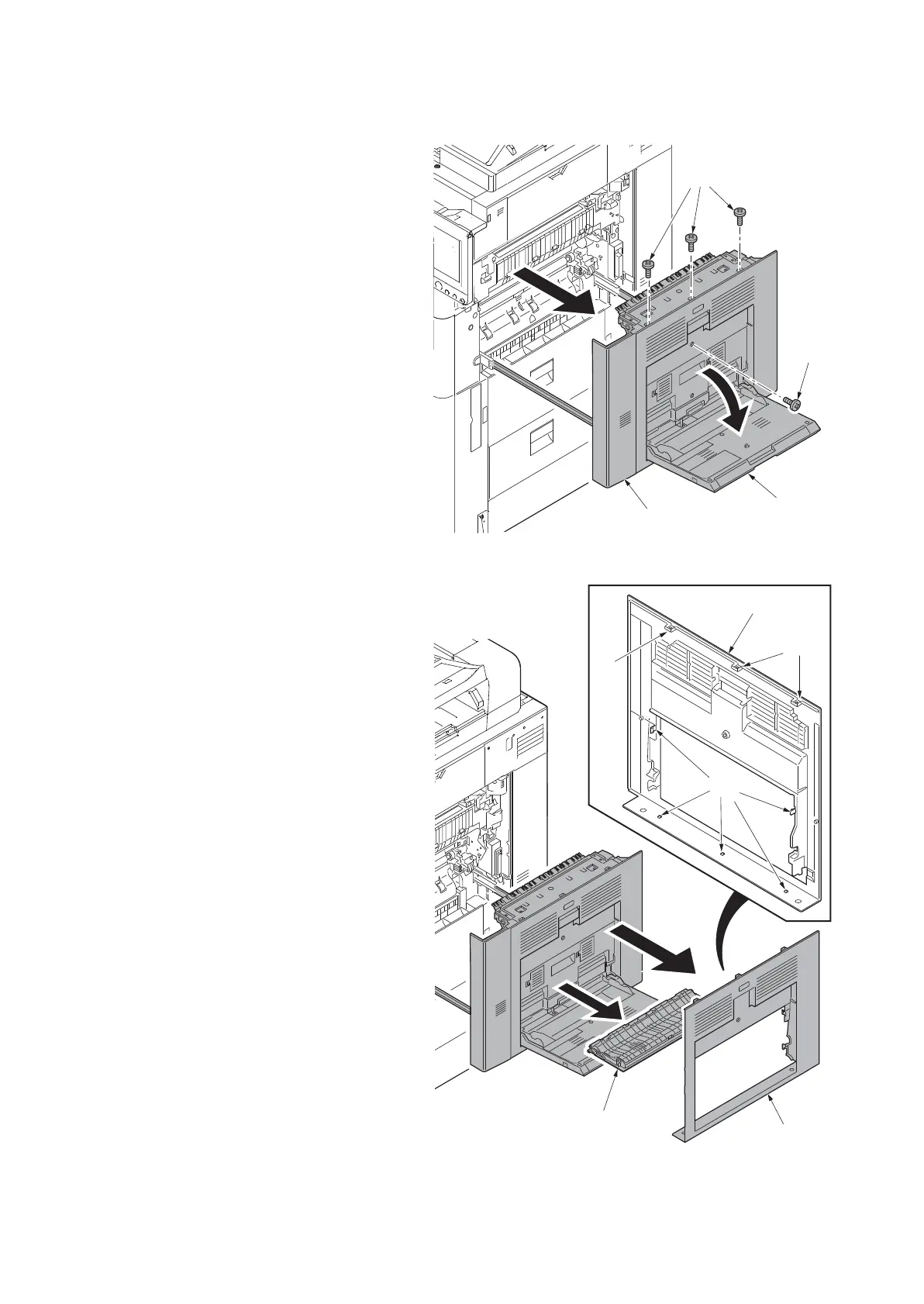

1. Pull out the conveying unit (a).
2. Open the MP tray (b).
3. Remove four screws (a)(M4x8).
Figure 4-111
4. Release eight hooks (a). And then
remove the right cover (b) and DU
cover assembly (c).
Figure 4-112
a
b
c
c
14j0211
a
a
a
b
b
c
14j0212
