Kyocera TASKalfa 7002i - Page 136

2NJ/2RK
2-87

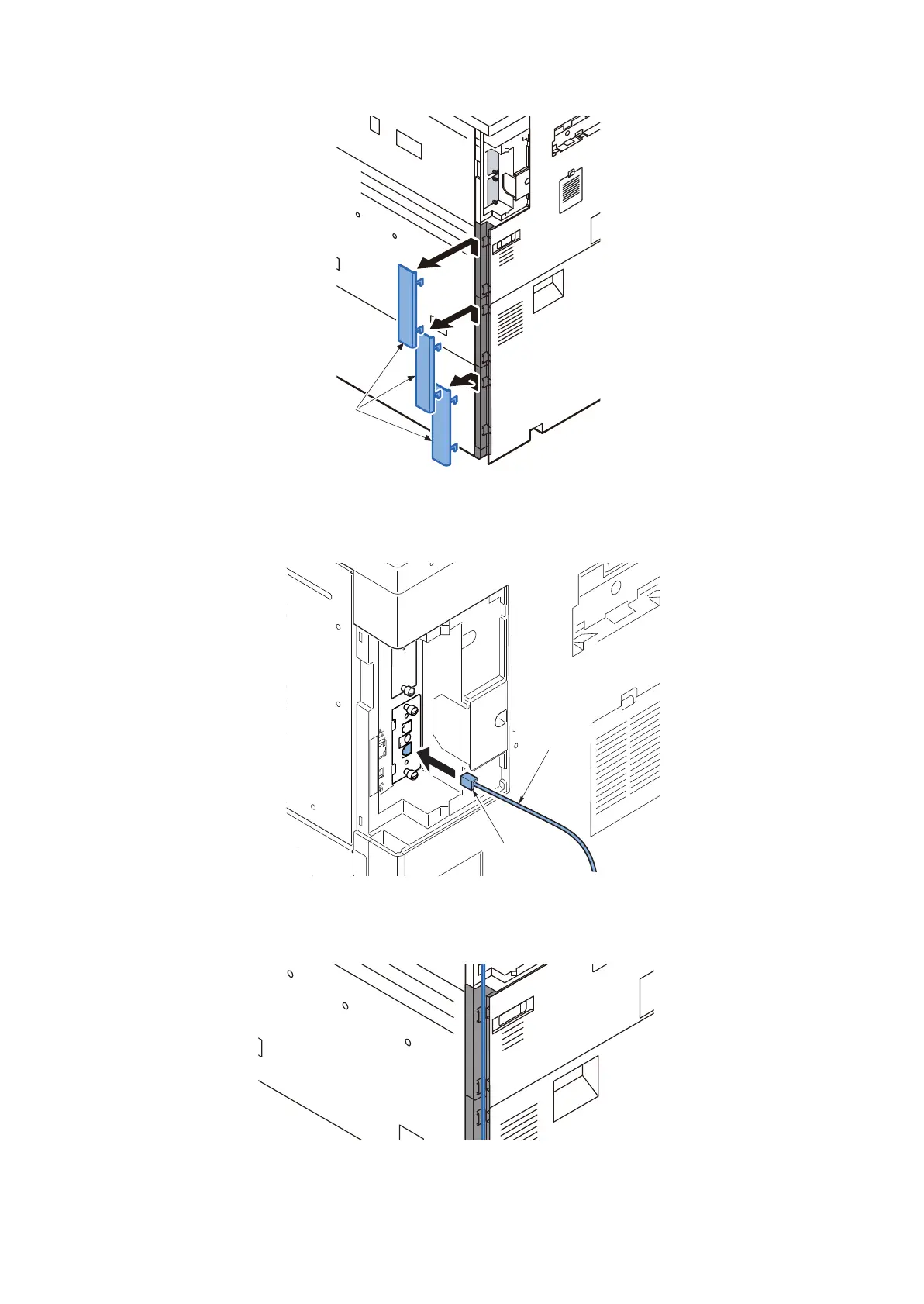

19. Detach the main unit cover(a) in order from the top.
Figure 2-166
20. Connect one end of the connector (b) of the modular cord (a) to the machine left side.
Figure 2-167
21. Pass the cord through the groove.
Figure 2-168
a
PT1
a
b
