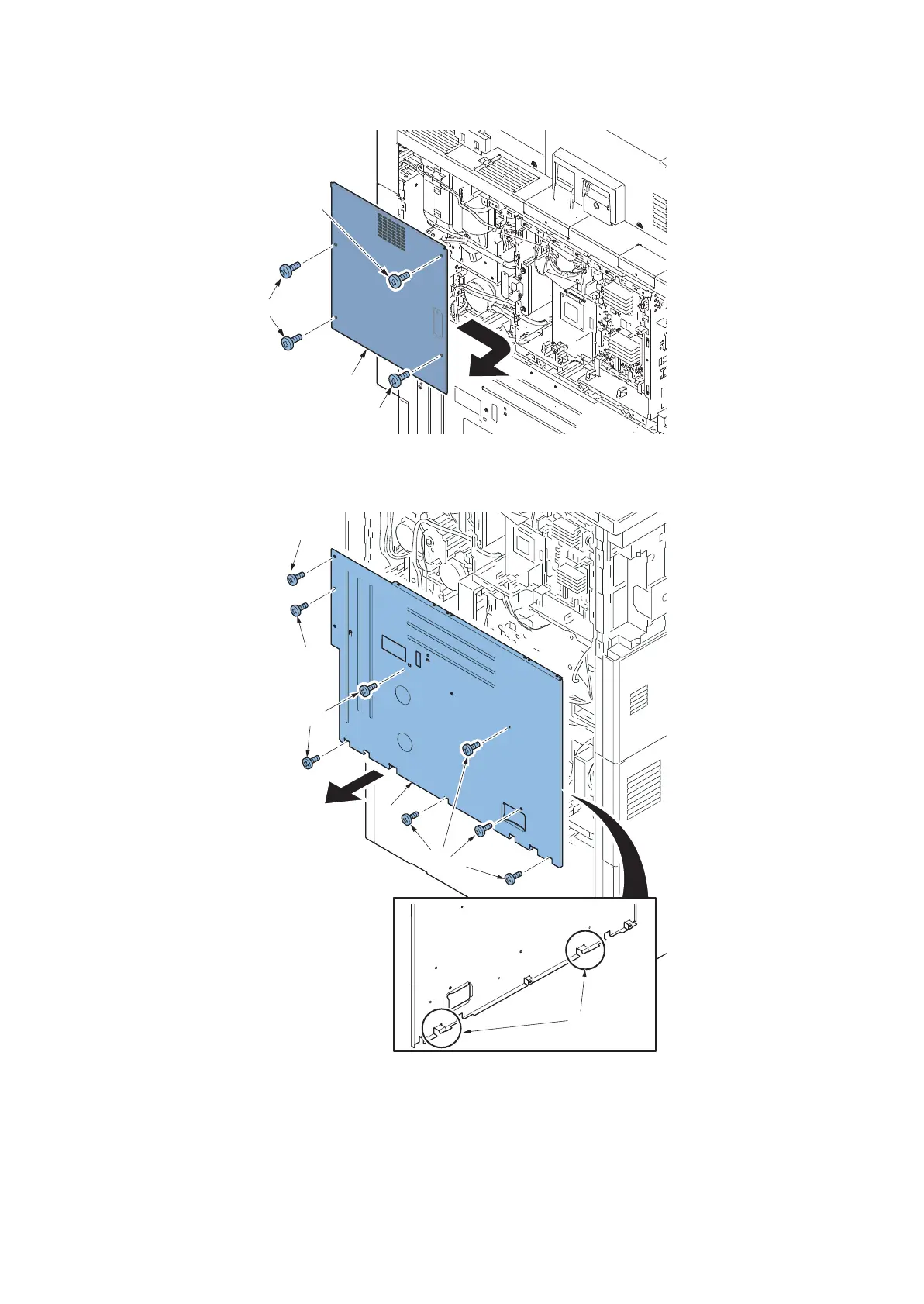

3. Remove four screws (a)(M3x8) and the detach right rear cover (b) in the direction of the arrow.
Figure 2-195
4. Remove eight screws (a)(M3x8).
5. Remove two low side of hooks(b) and then the lower rear cover(c).
Figure 2-196
a
b
a
a
b
a
a
a
a
c
