2NJ/2RK
2-105
6. 200 to 220V models only

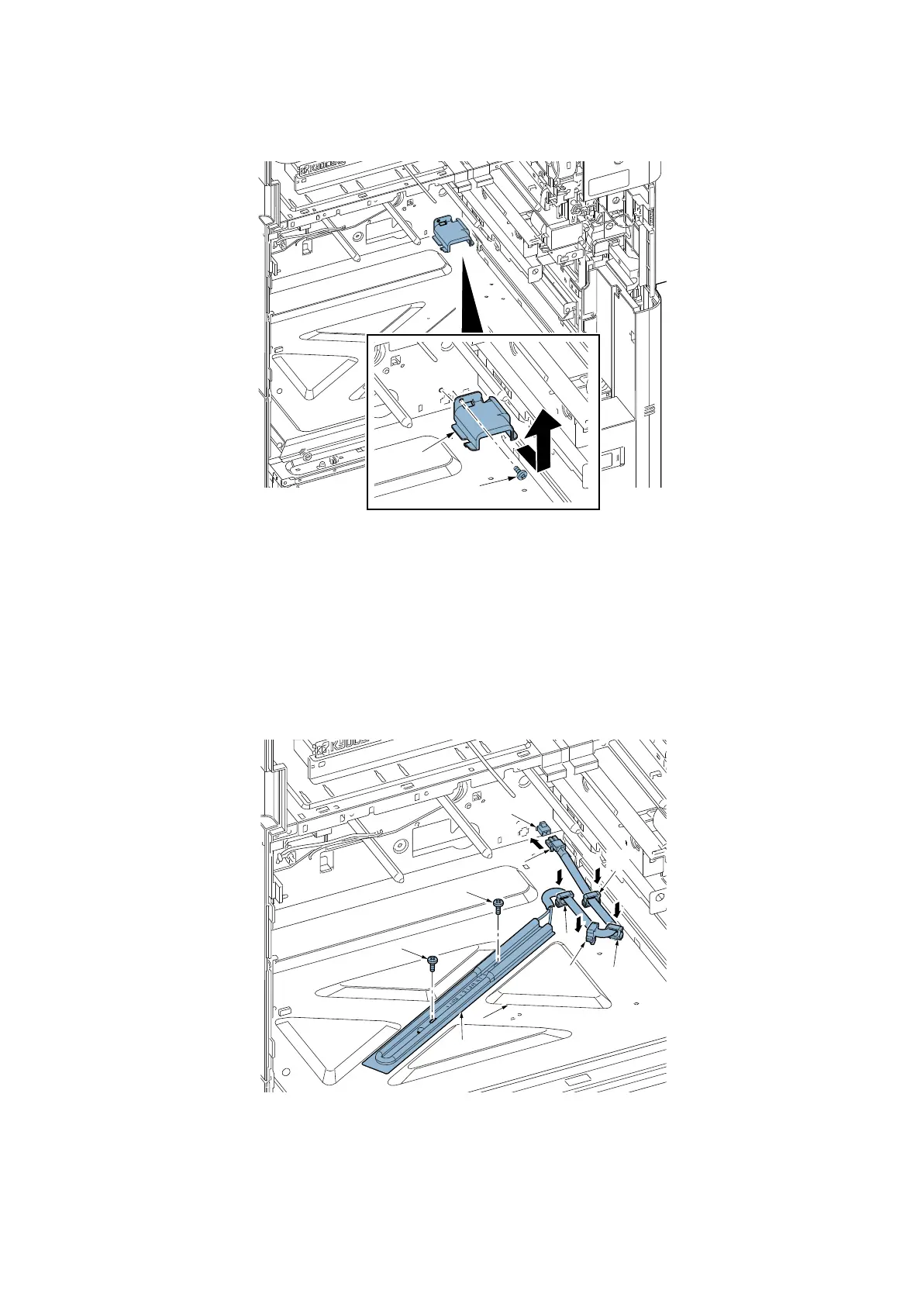

Remove one screw (a)(M4x8) and the detach the connector cover (b) in the direction of the arrow.
Figure 2-203
7. Reattach four wire saddles (a) to the bottom frame (b).
*: 220 to 240V model is 5pcs.
8. Reattach the cassette heater (c) to the base (b) with two screws (d)(M3×6).
9. Connect the heater connector (e) to the main unit side connector (f).
120V
Figure 2-204
a
b
a
a
c
d
d
e
f
a
To Next Page
