9. Remove nine screws (a)(M3x8).
10. Detach the lower side of two hooks (c) and detach the lower rear cover (b) in the direction of the arrow.

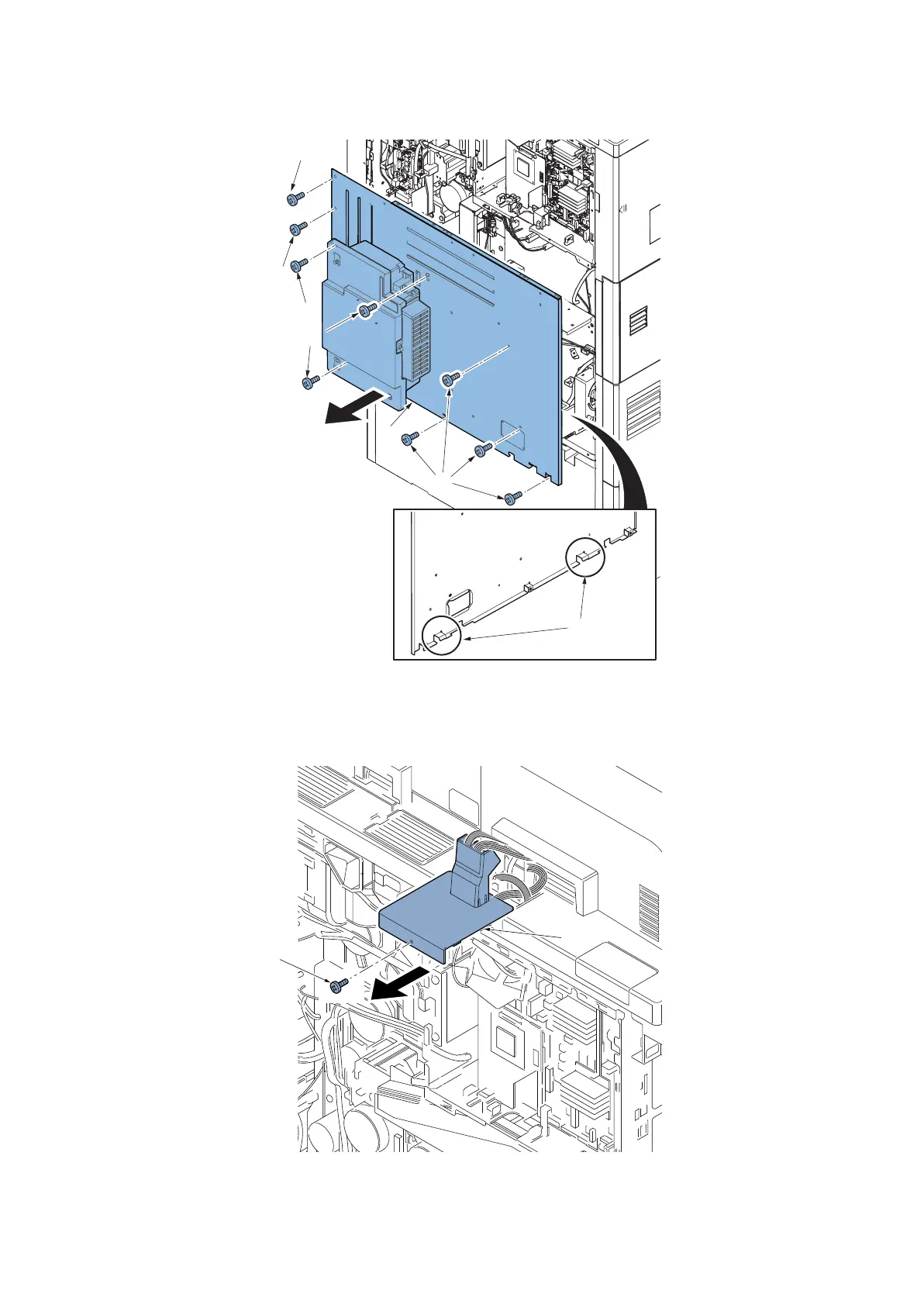

Figure 2-250
11. Remove one screw (a)(M3×8) and detach the DPIF lid (b).
Figure 2-251
