2WA/2NJ/2RK
3-34
Motors and others

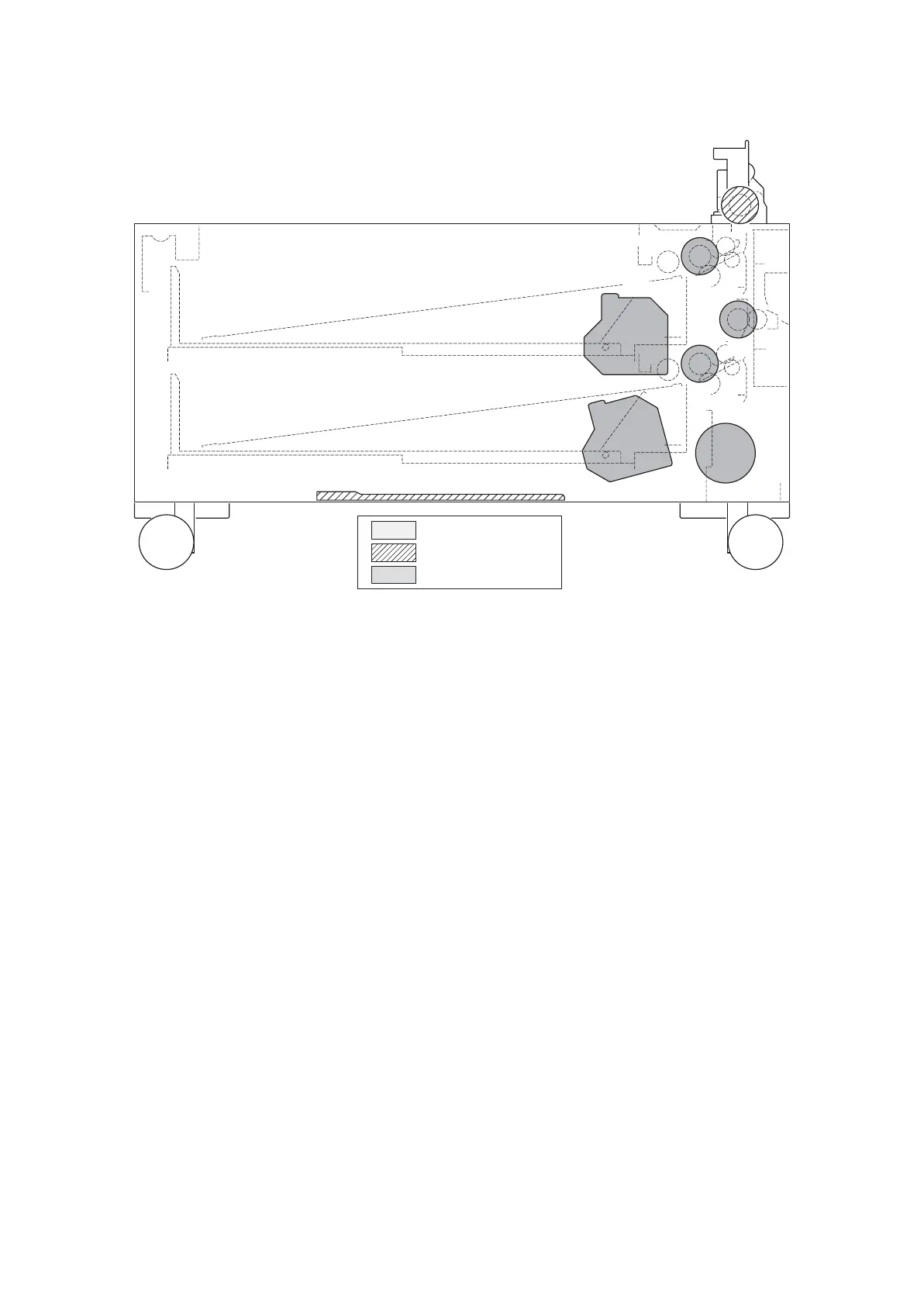

Figure 3-19
1. PF paper feed motor ............................. Driving the paper feed section.
2. PF lift motor 1........................................ Operating the bottom plate (cassette 3).
3. PF lift motor 2........................................ Operating the bottom plate (cassette 4).
4. PF paper feed clutch 1.......................... Controlling the primary paper feeding from the cassette 3.
5. PF paper feed clutch 2.......................... Controlling the primary paper feeding from the cassette 4.
6. PF conveying clutch 1........................... Controlling the drive of conveying section.
7. PF conveying clutch 2........................... Controlling the drive of conveying section.
8. PF cassette heater................................ Dehumidifying paper.
Machine front side
Machine inside
Machine rear side
8
1
2
3
7
4
5
6
To Next Page
