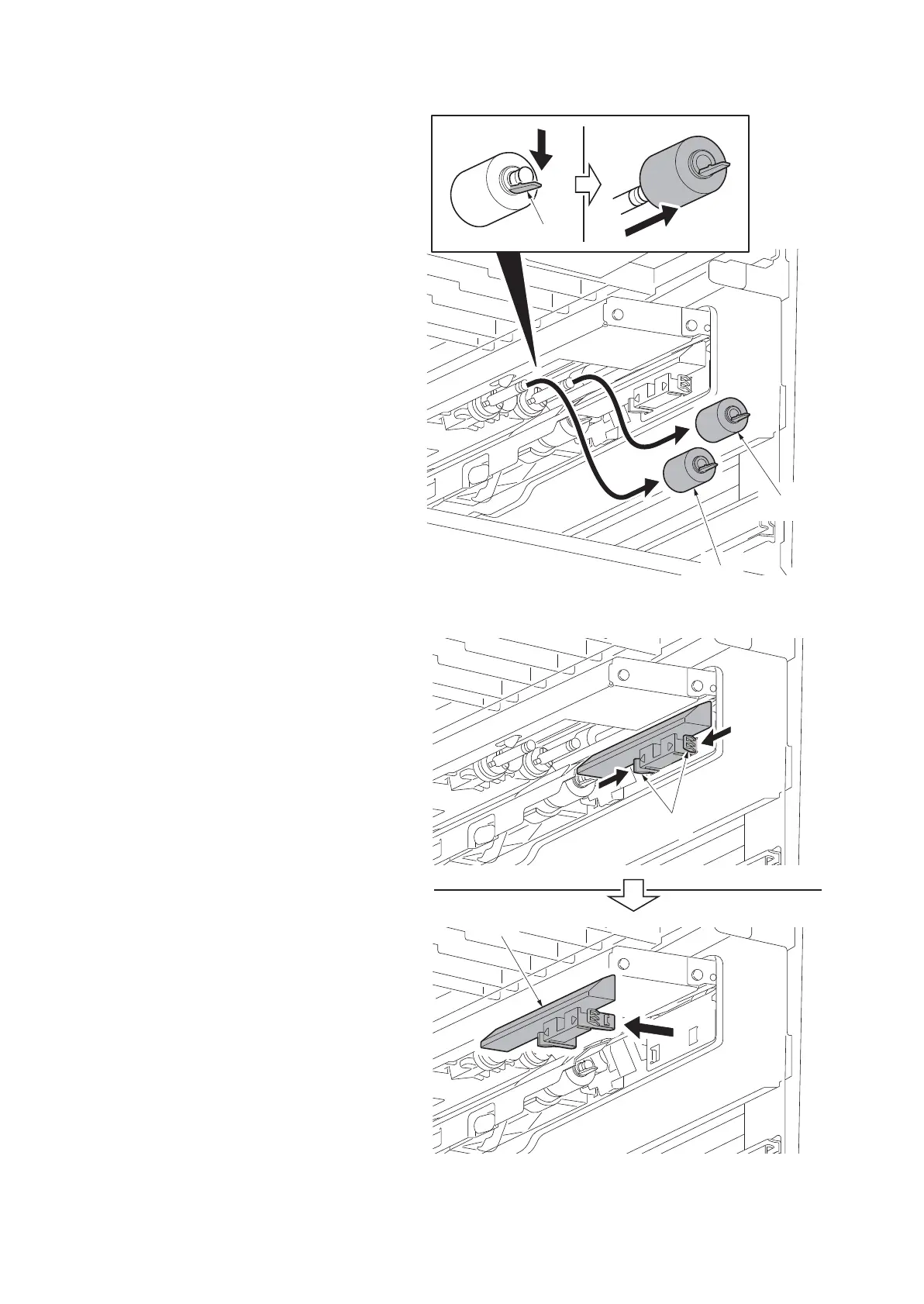

3. Release the hook (a) and remove the
PF forwarding pulley (b)(right) from the
shaft.
4. Release the hook (a) and remove the
paper feed pulley (c)(right) from the
shaft.
Figure 4-7
5. Release two hooks (a) and remove the
cover (b).
Figure 4-8
b
a
c
a
b
