2WA/2NJ/2RK
4-14

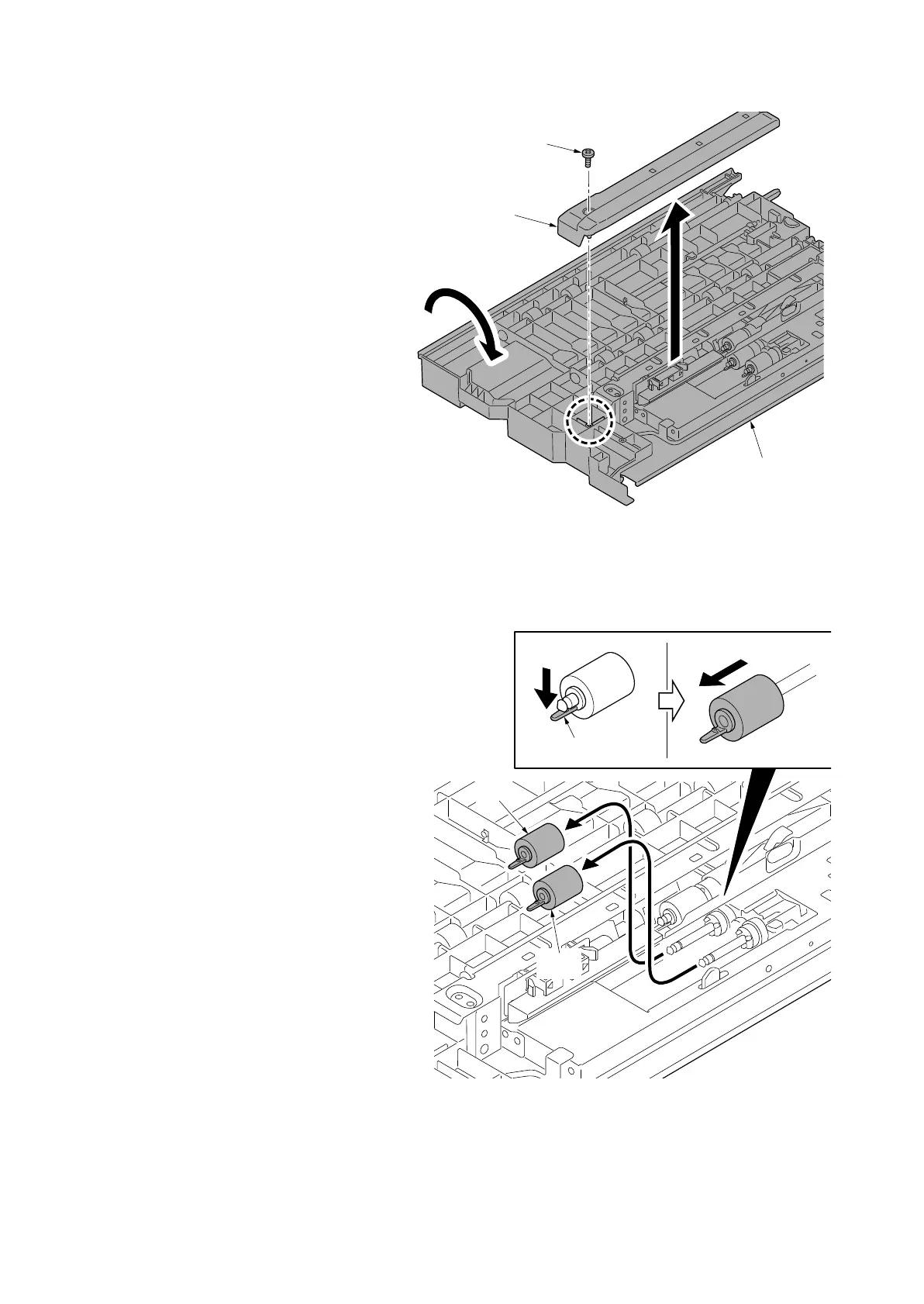

5. Turn over the PF conveying unit (a).
6. Remove the screw (b)(M3x8) and
remove the cover (c).
Figure 4-11
7. Release the hook (a) and remove the
PF forwarding pulley (b)(left) from the
shaft.
8. Release the hook (a) and remove the
PF paper feed pulley (c)(left) from the
shaft.
Figure 4-12
a
c
b
To Next Page
