Kyocera TASKalfa 7002i - Page 507

2WA/2NJ/2RK
4-179

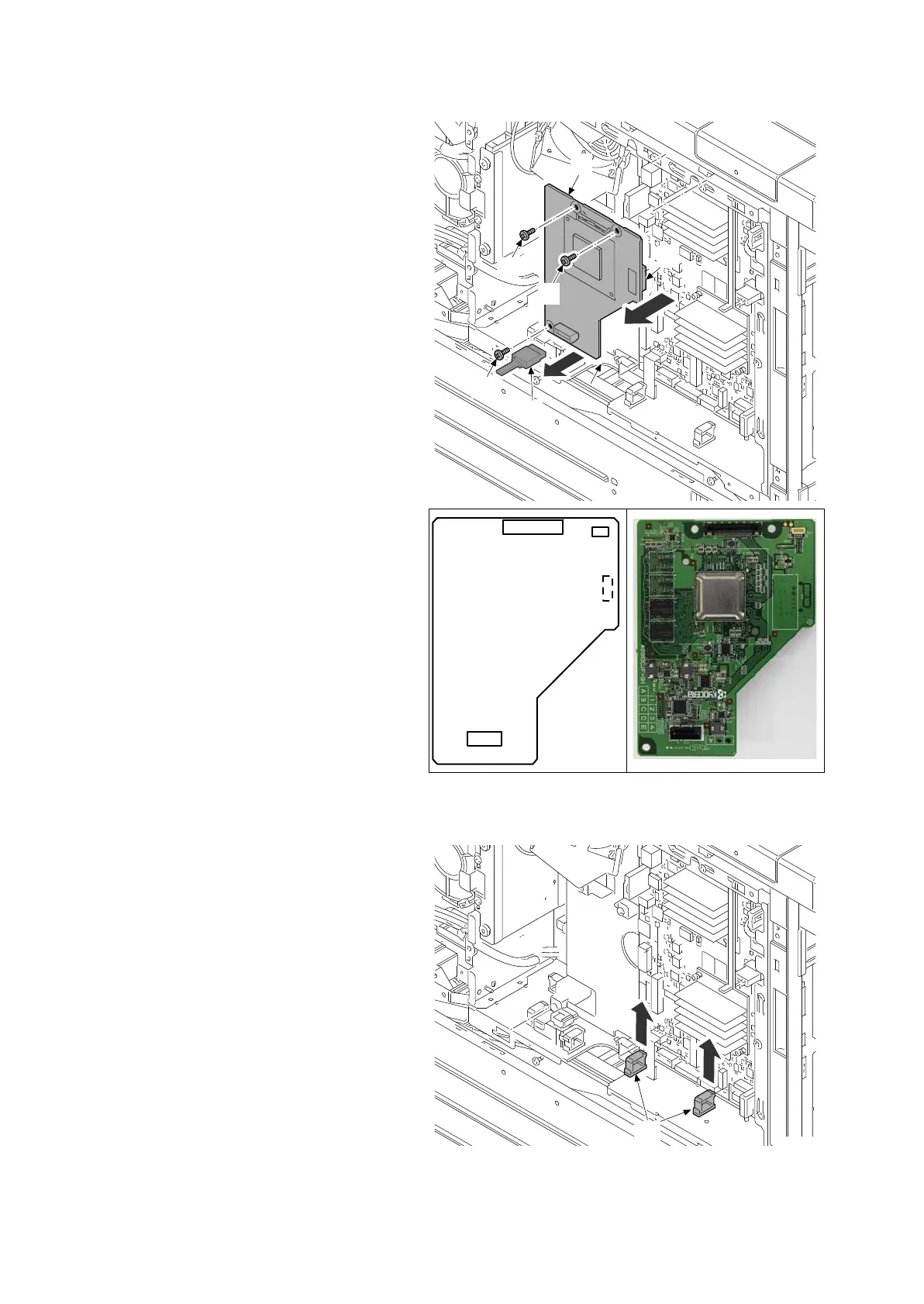

8. Disconnect the connector from the DP
relay PWB (a).
9. Remove three screws (a)(M3x8).
10. Detach the DP relay PWB (a) while
removing the backside connector (d).
Figure 4-263
11. Release two wire saddles (a).
Figure 4-264
b
a
c
c
d
c
YC2
YC1
14j0412
a
14j0413
